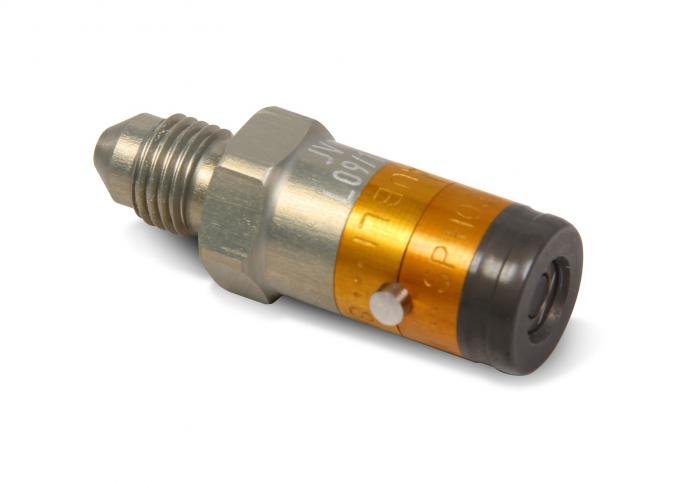

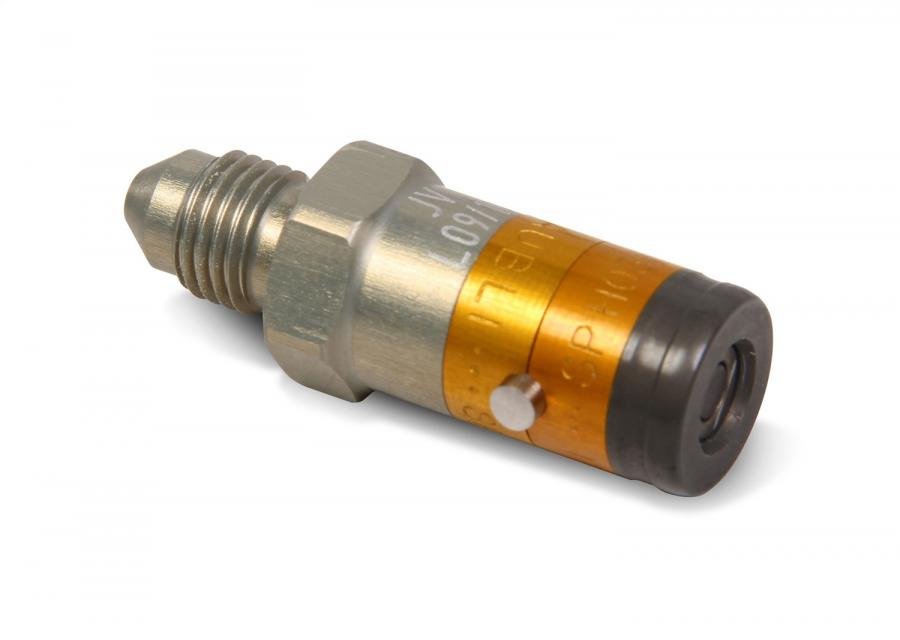

Earl's SPH Bayonet Locking Dry Break JV270204ERL

Earl's SPH Bayonet Locking Dry Break JV270204ERL
Earl's SPH Bayonet Locking Dry Break JV270204ERL
$212.99 ea
NEWARRIVING SOONEstimated Ship Date 10/25/2024 (If Ordered Today)1 Available from HOLLEY PERFORMANCE PRODUCTS as of 10/08/2024
Model: 4004042
STANDARD
DELIVERY
-4 AN Male Socket with 7/16-20 JIC End Fitting; Viton Seals EARL'S, EARL'S,Staubli SPH aluminum twist lock dry break couplings are available to transfer brake fluids, engine fuels and engine oils. The quick twist of the bayonet locks the coupler together. Available in standard and panel mount body styles in three different flow sizes. SPH flush face break couplers have a minimum loss of fluid leakage or air inclusion with double shut off ends which eliminates the need to purge the system. Internal design with large inside diameter provides optimal flow within the minimum outside diameter. Staubli SPH couplers that use Fluorocarbon (Viton)/FPM seals are for use with oils, fuels (non-ethanol), mineral greases and nitrogen and have an operating temperature -15F to 400F. Ethylene-Propylene seals (EPDM) are designed to work with all Glycol base brake fluids with operating temperature -4F to 302F.
Features:
  • Non-Spill quick release design for added safety
  • Light and compact
  • Size range and compatibility to cover most, if not all, fluid and air application requirements
  • High durability & dependability

Downloads:

Download Name File Size
earls_guide.pdf479.44KB

Specifications:

Adapter AN Size ( A ) 4 AN MALE
Adapter Type Dry Break Socket
Body Size #3
Dry Break Series SPH
Emission Code 5
Finish Anodized
Fluid Type Oil, Race Gas
Inside Diameter .125"
Material Aluminum
Max Working Pressure 2900 PSI
Part Type Hose Coupler
Product Type Accessory
Proposition 65 www.P65Warnings.ca.gov
Seal Material Viton
Temperature Range -15° F to 400° F
