Earl's Performance Ultra-Flex™ Kevlar Braid Hose 652210ERL

Earl's Performance Ultra-Flex™ Kevlar Braid Hose 652210ERL
$1,435.99 ea
NEWARRIVING SOONEstimated Ship Date 04/13/2023 (If Ordered Today)1 available from HOLLEY PERFORMANCE PRODUCTS as of 03/29/2023
Model: 4001530
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

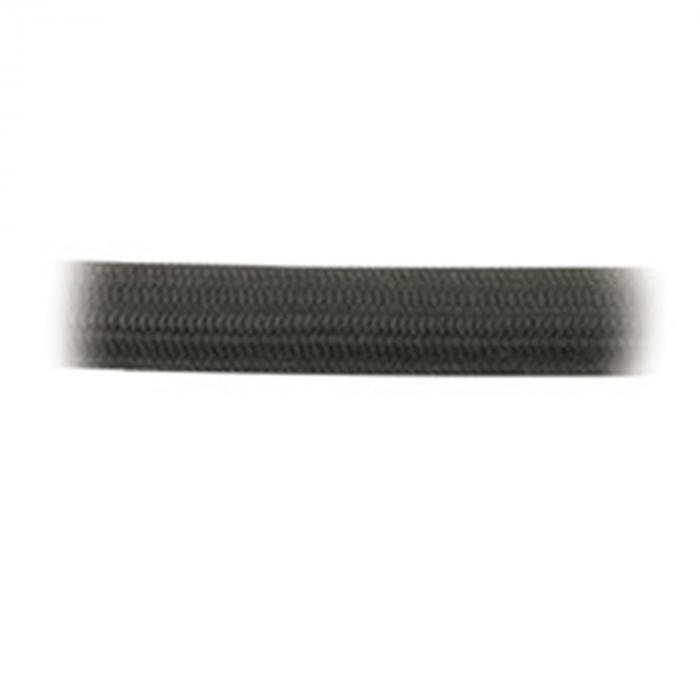

The packaging envelopes of the modern racing car become tighter each year - leaving less room for auxiliaries such as plumbing. At the same time it becomes more and more difficult to get the cars down to minimum weight. Earl's Ultra-Flex 650(TM) hose solves these issues. Earl's finest and lightest hose combines a woven Ultra-light Kevlar(R) braid with a smooth bore PTFE tubing for increased flow and convoluted outside for incredible flexibility. It also has significantly higher flow and pressure ratings than conventional convoluted PTFE hose. Ultra-Flex 650(TM) is 60% lighter than our stainless braid-protected synthetic rubber hose, and 15% lighter than our Pro-Lite 350(TM) hose. You have spent a lot of time, energy and money on your race engine and you should bring the life sustaining fluid to it with the best hose on the market today - Earl's Ultra-Flex 650(TM). (All trademarks are property of their respective owners.)
Features:
  • Ultra-Light Kevlar
  • High Temp
  • Smooth PTFE Tubing
  • Clean and Fast Flowing
  • Sold In Pre-Packaged Lengths
Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations

About Earl's Performance

Earl's Performance Products was founded by Earl Fouts in 1955 in Lawndale, California. The mission was to supply high-quality military aircraft surplus plumbing components directly to the racing industry from a small retail outlet. As the military surplus market dried up, Earl recognized the need for continuity of supply for the racing market and pioneered the Earl's range of hoses and fittings that are still used today. In doing so he created the racing aftermarket plumbing industry.

Specifications:

Color Black Anodized
Compatible Hose End Ultra Flex
Compatible Hose Ends Ultra-Flex
Crimping Die 22MM - D10022BERL
Emission Code 5
Final Crimp O.D. Range 0.925 in. - 0.937 in.
Fluid Type Pump Gas, Diesel, Automatic Transmission Fluid, Coolant, Oil, Race Gas, Bio-Fuels, E85, Methanol/Alcohol
Fluid Type Rating - Automatic Transmission Fluid 5 out of 5 Rating
Fluid Type Rating - Bio-Fuels 5 out of 5 Rating
Fluid Type Rating - Coolant 5 out of 5 Rating
Fluid Type Rating - Diesel 5 out of 5 Rating
Fluid Type Rating - E85 5 out of 5 Rating
Fluid Type Rating - Methanol/Alcohol 5 out of 5 Rating
Fluid Type Rating - Oil 5 out of 5 Rating
Fluid Type Rating - Pump Gas 5 out of 5 Rating
Fluid Type Rating - Race Gas 5 out of 5 Rating
Fluid Type Rating - Vacuum 3 out of 5 Rating
Hose Family Ultra-Flex
Hose Length 20 ft.
Hose Outer Material Kevlar
Hose Size 10AN
Inside Diameter 0.658 in.
Material Kevlar
Max Working PSI 955 PSI
Maximum Working PSI 955
Min. Bend Radius 3.28"
Minimum Bend Radius 3.280 in.
Outside Diameter 0.819 in.
Part Type Fuel Hose
Product Length 20 ft.
Size -10AN
Submersible in Fuel No
