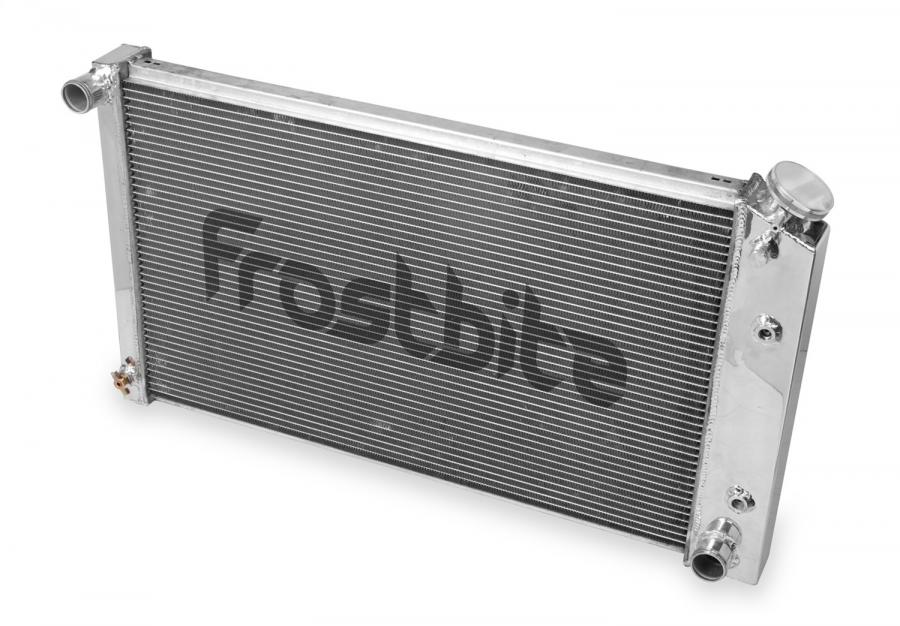

High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units.?
Download Name | File Size |
199r10955.pdf | 173.95KB |
199r11914.pdf | 286.5KB |
Make | Model | Years | Fitment Notes |
Ford | Mustang | 1996 | 2-Row; 1 1/2 in. Inlet; 1 3/4 in. Outlet; 17 x 28 7/8 in. Overall; Pin Mount |
# of Passes | Single |
Cooling Row Diameter | 0.750 in. |
Core Dimension | 15.750 in. x 23.875 in. |
Core Thickness | 1.570 in. |
Emission Code | 5 |
Hose Location Inlet | Passenger |
Hose Location Outlet | Driver |
Inlet Diameter | 1.500 in. |
Inlet Size | 1-1/2" |
Item Height | 17.000 in. |
Material | Aluminum |
Mount Type | Pin |
Mounting | Pin Mount |
Mounting Type | Pin |
Outlet Diameter | 1.750 in. |
Outlet Size | 1-3/4" |
Overall Dimension | 17.000 in. x 28.875 in. |
Overall Length | 28.800 in. |
Part Type | Radiator |
Radiator Core Row Quantity | 2 |
Rows | 2 |
Transcooler Provision | 0.250 in. NPT |
