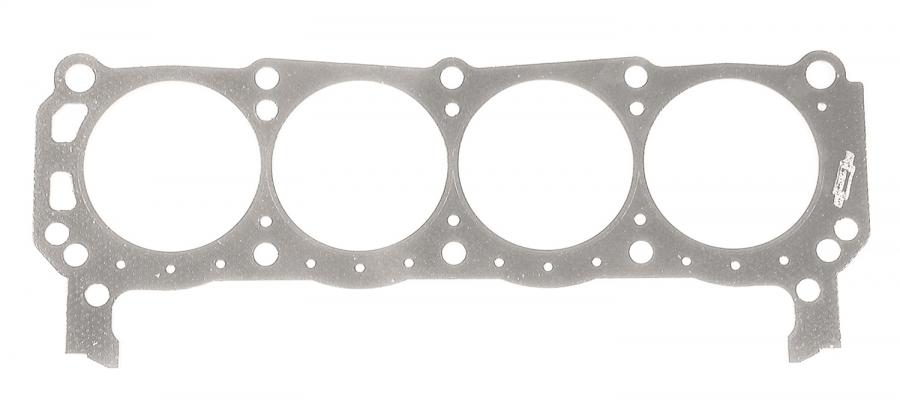

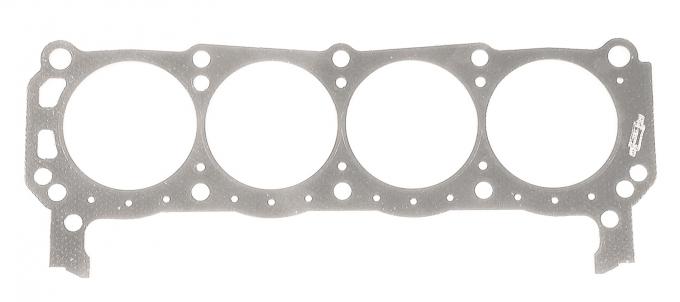

Mr. Gasket Ultra-Seal Head Gasket 5807G

Mr. Gasket Ultra-Seal Head Gasket 5807G
$101.99 ea
NEWARRIVING SOONEstimated Ship Date 05/24/2024 (If Ordered Today)19 Available from HOLLEY PERFORMANCE PRODUCTS as of 05/04/2024
Model: 4011793
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
Mr. Gasket Ultra-Seal Head Gaskets are a five layer (graphite core/perforated steel outer layers) composite construction. The graphite core has excellent thermoconductivity (transfers heat) away from hot spots in head preventing gasket burn-out. They provide excellent stability, compressibility and high temperature endurance. A high temperature silicone coating ensures sealing of engine fluids. Compatible with cast iron or aluminum heads, they will not brinell (indent) aluminum cylinder heads. Suitable for high performance street, drag race and oval track use. Sold individually.

Gasket Bore 4.100 inch, Compressed thickness 0.038 inch
Features:
  • Five layer (graphite core/perforated steel outer layers) composite construction
  • Graphite core has excellent thermo-conductivity-transfers heat away from hot spots in head preventing gasket burn-out
  • Provides excellent stability, compressibility and high temperature endurance
  • Coated with high temperature silicone to ensure sealing of engine fluids
  • Will not brinell (indent) aluminum cylinder heads
  • For high performance street, drag race and oval track use

Downloads:

Download Name File Size
97140221.pdf145KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Ford Mustang II 1975 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang II 1976 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang II 1977 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang II 1978 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1968 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1969 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1970 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1971 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1972 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1973 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1979 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1982 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1983 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1984 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1985 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1986 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1987 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1988 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1989 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1991 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1992 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1993 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1994 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Ford Mustang 1995 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Capri 1979 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Capri 1982 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Capri 1983 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Capri 1984 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Capri 1985 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Capri 1986 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1968 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1969 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1970 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1977 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1978 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1979 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1980 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1981 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1983 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1984 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1985 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1986 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1987 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1988 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1991 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1992 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;
Mercury Cougar 1993 5.0L / 302 / V8 ULTRA SEAL; HEAD GASKET; COMPOSITION GASKET MATERIAL; SOLID STEEL CORE; LAMINATED OUTER FACING; 4.100 IN. GASKET BORE; 0.038 IN. COMPRESSED THICKNESS; SOLD INDIVIDUALLY;

Specifications:

Application Small Block Ford
Compressed Thickness .038 inch
Compression Ratio Up to 14:1
Emission Code 5
Engine Ford Small Block Windsor
Gasket Bore 4.100 inch
Gasket Line Ultra-Seal
Material Graphite Steel
Packaging Retail
Part Type Engine Cylinder Head Gasket
Product Type Head Gasket
Quantity Per Pkg. 1
Warranty Limited 90 Day TX, Limited 90 Day
Weight 0.5000
