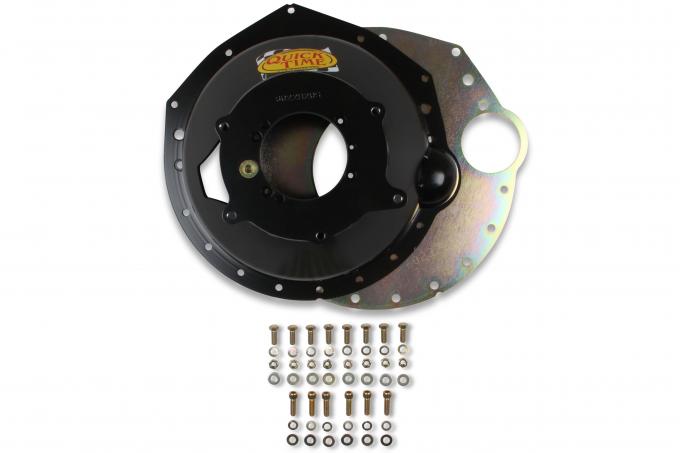

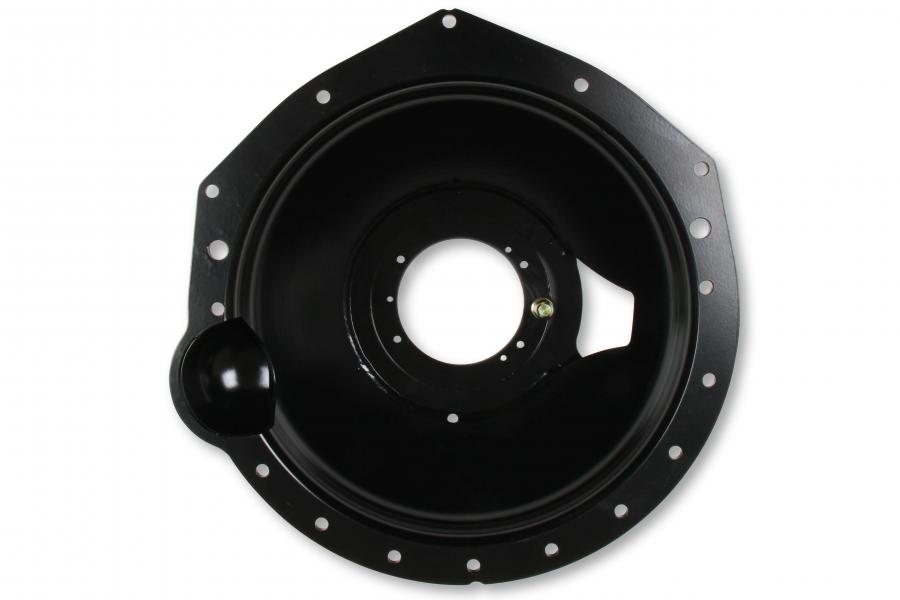

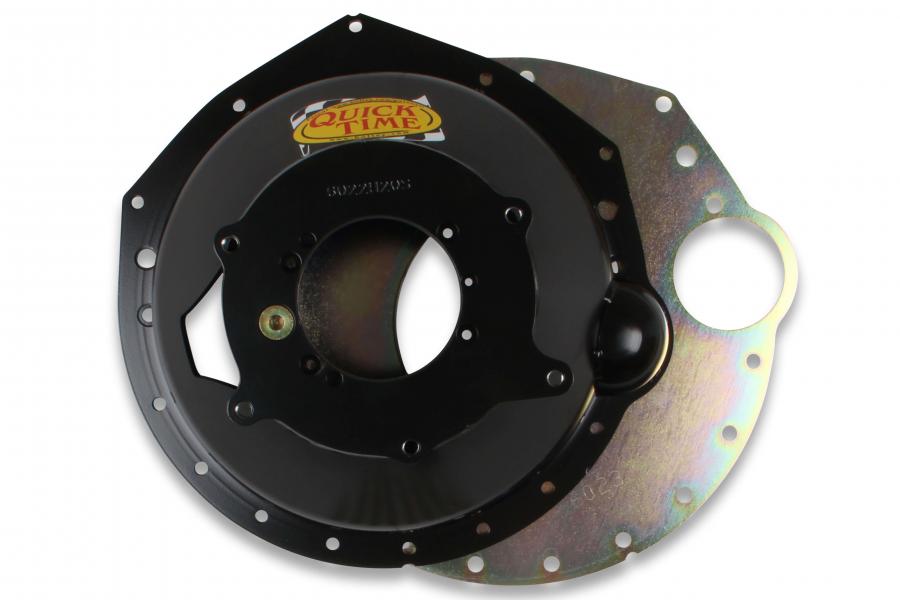

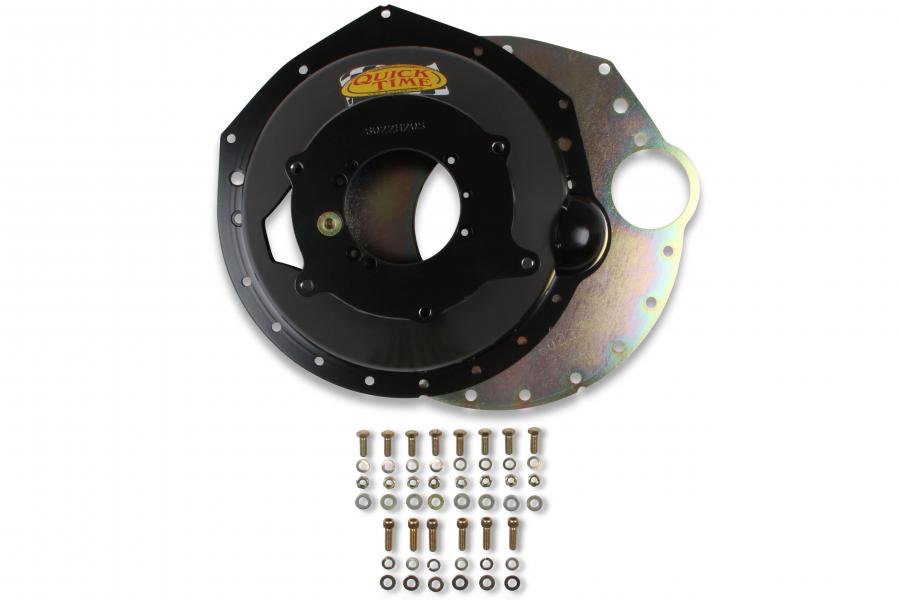

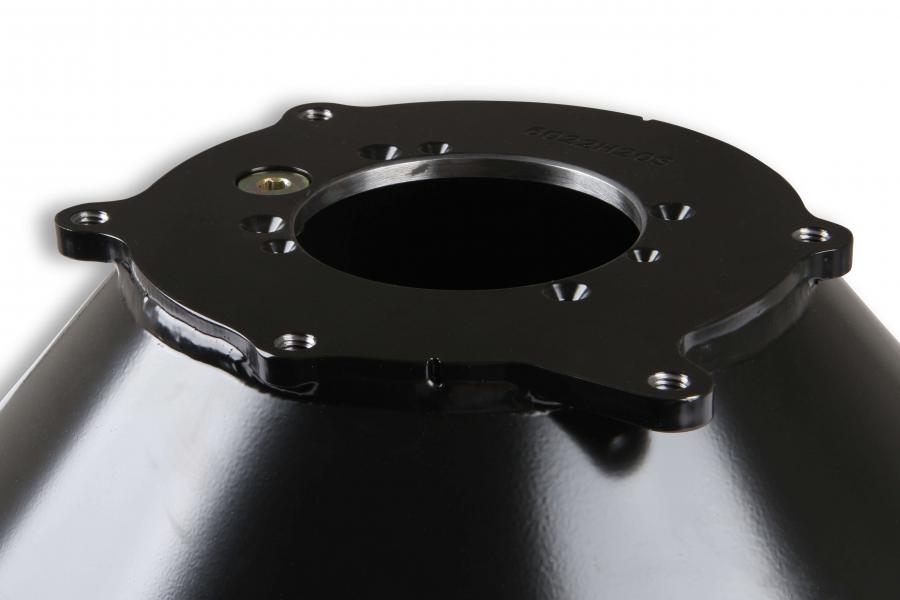

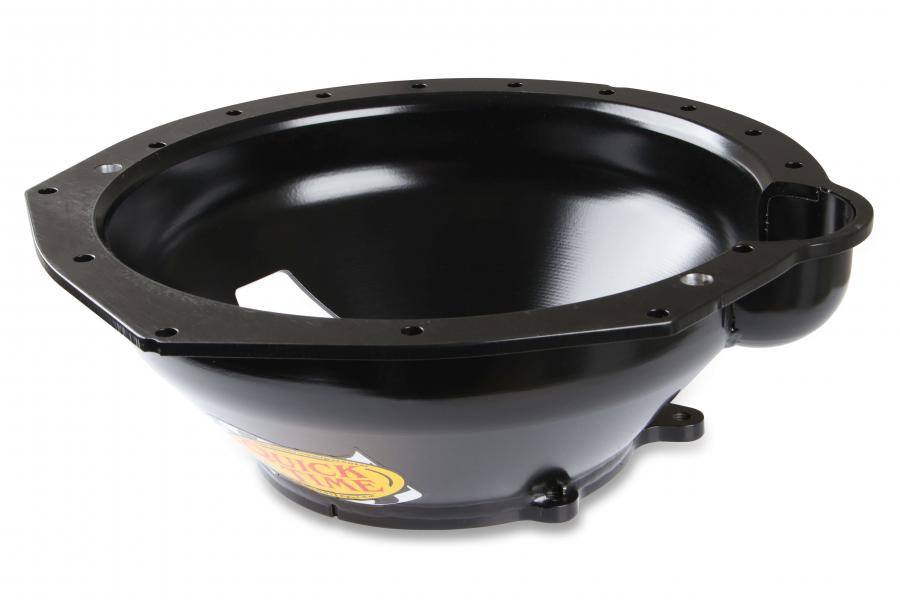

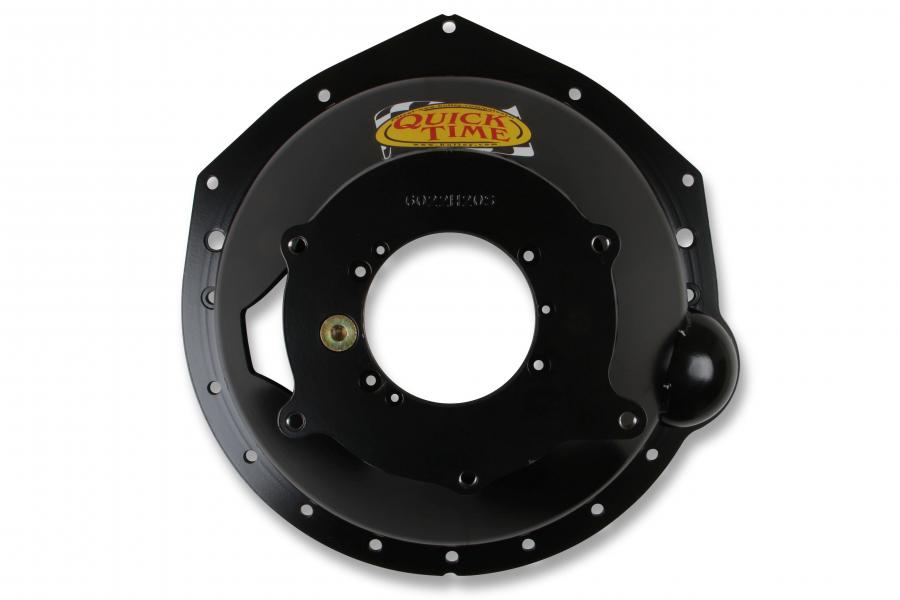

Quick Time Bellhousing, Chevy RM-6022

Quick Time Bellhousing, Chevy RM-6022
Quick Time Bellhousing, Chevy RM-6022Quick Time Bellhousing, Chevy RM-6022Quick Time Bellhousing, Chevy RM-6022Quick Time Bellhousing, Chevy RM-6022Quick Time Bellhousing, Chevy RM-6022Quick Time Bellhousing, Chevy RM-6022
$1,428.99 ea
NEWARRIVING SOONEstimated Ship Date 10/24/2024 (If Ordered Today)100 Available from HOLLEY PERFORMANCE PRODUCTS as of 10/07/2024
Model: 4014870
STANDARD
DELIVERY
The Quick Time RM-6022 bellhousing connects small block and big block Chevy engines to transmissions utilizing the GM standard pattern such as the Muncie, Saginaw, Borg Warner T10 and Tremec TKO transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Features:
  • Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
  • QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
  • Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
  • 100% built in the USA
  • Patent on 16 points of Bellhousing Design & Process
Std LH Fork or Hyd. Bearing
Installation Notes:
Std LH Fork or Hyd. Bearing

Downloads:

Download Name File Size
lakewood_instructions_quicktime_bellhousings.pdf461.94KB

Videos:

Specifications:

Certification 6.1 SFI
Clutch Diameter 11"
Clutch Operation Hydraulic
Color Black
Emission Code 5
Engine Chevrolet Small Block Gen I, Chevy Big Block V8
Engine Make Chevrolet

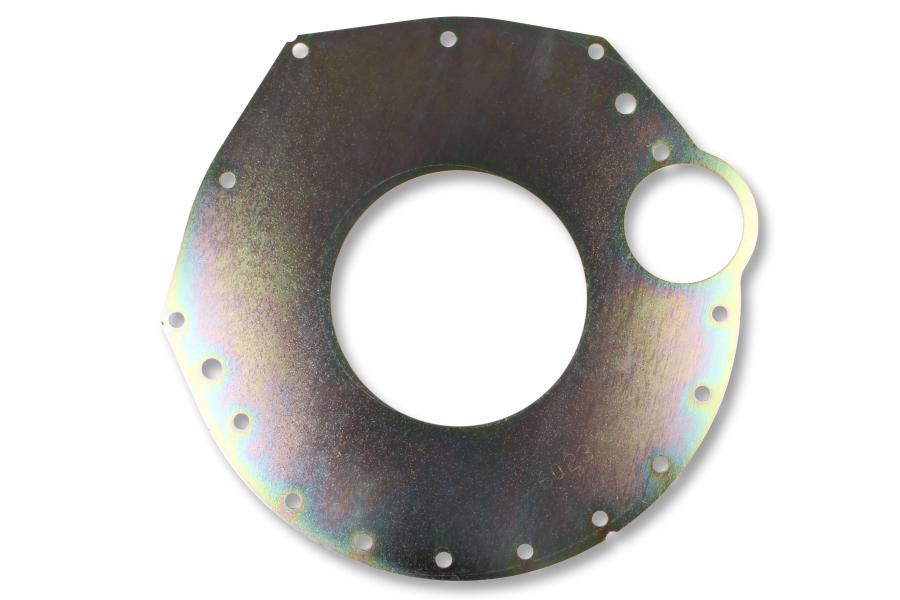

Engine Plate RM-6023-C
Finish Semi-Gloss
Flywheel 153/168 Tooth
Height 6.290 inch
Height (in) 6.29
Make Chevrolet
Material Steel
Part Type Transmission Bell Housing
Patented yes
Product Type Bellhousing
SFI Approved Yes
SFI Certification 6.1
Trans Bore 4.687
Trans. Bore Diameter 4.687 inch
Transmission T5 GM, Bert Racing, Muncie, T10, TKX GM, TKO 500/600 GM, Brinn Racing, Falcon, Jerico, Richmond, Saginaw
Transmission Type Manual
Warranty Limited 90 Day Warranty TX, Limited 90 Day Warranty
Weight 22#
Weight (lb) 22
