Wilwood Brakes 2005-2014 Ford Mustang AERO4 Big Brake Rear Parking Brake Kit 140-10950-R

Wilwood Brakes 2005-2014 Ford Mustang AERO4 Big Brake Rear Parking Brake Kit 140-10950-R
Wilwood Brakes 2005-2014 Ford Mustang AERO4 Big Brake Rear Parking Brake Kit 140-10950-RWilwood Brakes 2005-2014 Ford Mustang AERO4 Big Brake Rear Parking Brake Kit 140-10950-RWilwood Brakes 2005-2014 Ford Mustang AERO4 Big Brake Rear Parking Brake Kit 140-10950-RWilwood Brakes 2005-2014 Ford Mustang AERO4 Big Brake Rear Parking Brake Kit 140-10950-RWilwood Brakes 2005-2014 Ford Mustang AERO4 Big Brake Rear Parking Brake Kit 140-10950-RWilwood Brakes 2005-2014 Ford Mustang AERO4 Big Brake Rear Parking Brake Kit 140-10950-R
$3,796.99 ea
NEWARRIVING SOONEstimated Ship Date 04/11/2024 (If Ordered Today)10 Available from WILWOOD ENGINEERING as of 03/28/2024
Model: 3920913
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

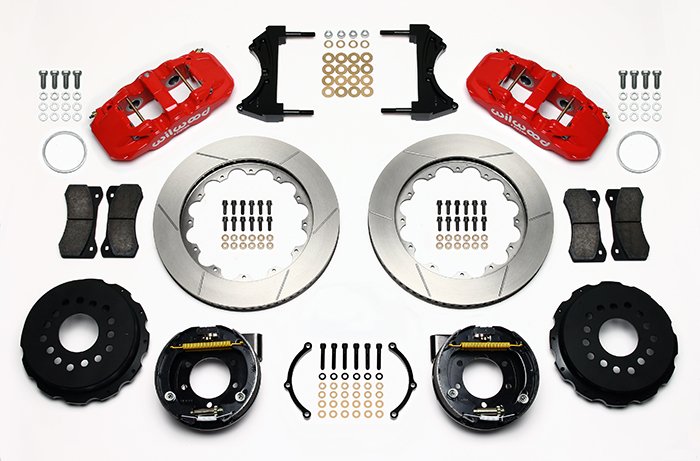

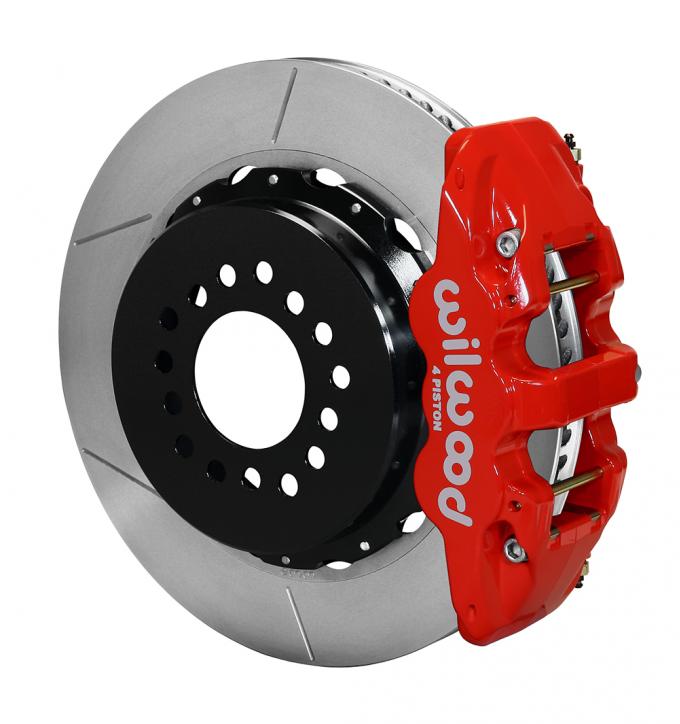

AERO4 Big Brake Rear Axle Kits replace the factory disc brakes and use the OE parking brake assembly as a compliment to front big brake upgrades on late model high performance vehicles. High capacity braking from the AERO4 radial mount calipers, High friction BP compound pads, and oversized 14.00" rotors are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Enhanced brake performance, increased durability, and high-tech style compliment big wheel, tire, and suspension upgrades on customized vehicles and all others with increased brake requirements.

Fitment Notes

1. 14" Rotor

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds697.pdf507.65KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Ford Mustang Base 2014 KIT,REAR,MUSTANG,05-UP,2.66 OFFSET,AERO4 14.00 ROTOR,RED; RTR:14.00-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT
14" Rotor
Ford Mustang Base 2005 - 2013 KIT,REAR,MUSTANG,05-UP,2.66 OFFSET,AERO4 14.00 ROTOR,RED; RTR:14.00-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT
14" Rotor
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Ford Mustang Boss 302 2012 - 2013 KIT,REAR,MUSTANG,05-UP,2.66 OFFSET,AERO4 14.00 ROTOR,RED; RTR:14.00-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT
14" Rotor
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Ford Mustang Bullitt 2008 KIT,REAR,MUSTANG,05-UP,2.66 OFFSET,AERO4 14.00 ROTOR,RED; RTR:14.00-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT
14" Rotor
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Ford Mustang GT 2005 - 2013 KIT,REAR,MUSTANG,05-UP,2.66 OFFSET,AERO4 14.00 ROTOR,RED; RTR:14.00-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT
14" Rotor
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Ford Mustang GT 2011 - 2012 KIT,REAR,MUSTANG,05-UP,2.66 OFFSET,AERO4 14.00 ROTOR,RED; RTR:14.00-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT
14" Rotor
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Except Performance Brakes
With Performance Brakes
Ford Mustang GT 2014 KIT,REAR,MUSTANG,05-UP,2.66 OFFSET,AERO4 14.00 ROTOR,RED; RTR:14.00-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT
14" Rotor
with Brembo Brakes
Except with Brembo Brakes
Ford Mustang Shelby GT500 2013 - 2014 KIT,REAR,MUSTANG,05-UP,2.66 OFFSET,AERO4 14.00 ROTOR,RED; RTR:14.00-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT
14" Rotor
Ford Mustang Shelby GT500 2007 - 2012 KIT,REAR,MUSTANG,05-UP,2.66 OFFSET,AERO4 14.00 ROTOR,RED; RTR:14.00-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT
14" Rotor
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Ford Mustang Shelby 2014 KIT,REAR,MUSTANG,05-UP,2.66 OFFSET,AERO4 14.00 ROTOR,RED; RTR:14.00-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT
14" Rotor
Ford Mustang 2007 - 2009 KIT,REAR,MUSTANG,05-UP,2.66 OFFSET,AERO4 14.00 ROTOR,RED; RTR:14.00-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT
14" Rotor
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Except Shelby GT500 Models
Ford Mustang 2008 KIT,REAR,MUSTANG,05-UP,2.66 OFFSET,AERO4 14.00 ROTOR,RED; RTR:14.00-IN DIA, GT 72 CURVED VANE, SLOTTED; CLPR:AERO4, 4-PISTON, RED POWDER COAT
14" Rotor
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Except Shelby GT500 and Bullit Models

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Summary
Axle Offset 2.66
Caliper Type 4 - Red Powder Coat
Min Wheel Diameter Req'd* 18
Mount Type Radial
Rear End Axle Mustang 05-up
Rotor Diameter 14.00
Kit Components & Specs / Rotors
Bedded No
Design Type GT
Dynamically Balanced Yes
Left Hand - Part No 160-8403
Material Spec-37 Iron
Outside Diameter (in) 14.00
Right Hand - Part No 160-8402
Style GT Slotted
Surface Finish Plain
Type GT 72 Curved Vane
Vane Count 72 CV
Width (in) 1.10
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
O-ring Kit 130-2579
Replacement Piston 1 200-7513
Replacement Piston 2 200-7513
Wear Plate - Left Hand 300-5876
Wear Plate - Right Hand 300-5876
Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 X 4.50
Bolt Circle 2 5 X 4.75
Bolt Circle 3 5 X 5.00
Finish Color Black E-Coat
Hat - Part No 170-13540
Hat Offset Dimension (in) 1.950
Material Aluminum
Stud Diameter - BC 1 0.520
Stud Diameter - BC 2 0.520
Stud Diameter - BC 3 0.520
Type Parking Brake Hat - Standard
Parts & Accessories / Hat
Bolt Kit 230-8008
Kit Components & Specs / Calipers
Brake Pad Area (In²) 11.1
Brake Pad Plate 6617
Brake Pad Volume (In³) 5.2
Finish Color Red Powder Coat
Left Hand - Part No 120-13338-RD
Mount Type Radial
Pad Compound BP-20
Piston 1 Bore (in) 1.12
Piston 2 Bore (in) 1.12
Piston Area (In²) 1.98
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-13338-RD
Type AERO4
Parts & Accessories / Brake Lines
Front Line Kit 220-9248
Parking Brake Cable 330-11221 330-12335
