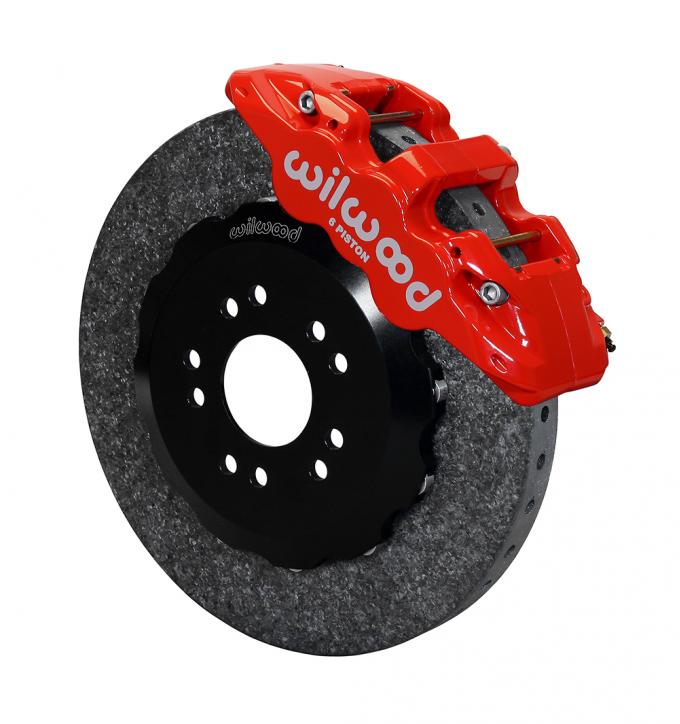

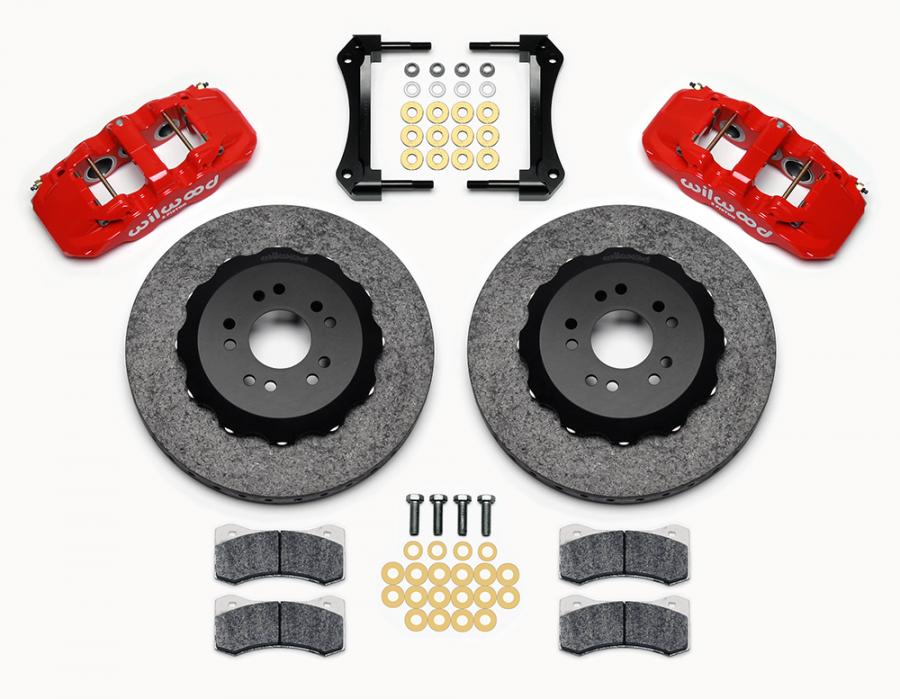

Wilwood Brakes 2005-2014 Ford Mustang AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-12756-CSICR

Wilwood Brakes 2005-2014 Ford Mustang AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-12756-CSICR
Wilwood Brakes 2005-2014 Ford Mustang AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-12756-CSICRWilwood Brakes 2005-2014 Ford Mustang AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-12756-CSICRWilwood Brakes 2005-2014 Ford Mustang AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-12756-CSICRWilwood Brakes 2005-2014 Ford Mustang AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-12756-CSICRWilwood Brakes 2005-2014 Ford Mustang AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-12756-CSICRWilwood Brakes 2005-2014 Ford Mustang AERO6 WCCB Carbon-Ceramic Big Brake Front Brake Kit 140-12756-CSICR
$13,464.99 ea
NEWOut of stock with WILWOOD ENGINEERING as of 03/28/2024
Model: 3921465
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

AERO6 WCCB Carbon-Ceramic Rotor Front Brake Kits offer an extreme performance upgrade featuring WCCB Carbon-Ceramic Dynamic Mount Rotors with Wilwood’s exclusive Bobbin Mounting System. AERO6 WCCB kits are engineered to maximize braking capacity inside custom wheels. These brake kits offer a simple bolt-on installation with minor modifications required to the front spindle only and are fully compatible with ABS and OE master cylinder output. W6AR calipers are a competition proven and offer fully detail machined forged caliper body demonstrates superior strength and resistance to deflection and separation under high load. A high temperature, fluid resistant “Quick-Silver“ Nickel plate is the standard for performance, other colors (Black and Red powder coat) are available as options. 14.00” WCCB rotors are made from a proprietary blend ceramic matrix composite material commonly known as Carbon-Ceramic and dynamically using Wilwood’s proprietary integrated anti-rattle Bobbin Mounting System. WCCB rotors offer higher thermal conductivity and heat capacity in excess of conventional iron or titanium rotors of similar or even greater weight and have been developed to withstand extreme temperatures with the highest possible degree of resistance against distortion, warping, cracking and wear.

Fitment Notes

1. 14" Rotor

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds933.pdf440.45KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Ford Mustang Base 2014 KIT,FRONT,MUSTANG 2005-2011,AERO6,14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO6, 6-PISTON, RED POWDER COAT
14" Rotor
Ford Mustang Base 2005 - 2013 KIT,FRONT,MUSTANG 2005-2011,AERO6,14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO6, 6-PISTON, RED POWDER COAT
14" Rotor
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Ford Mustang Boss 302 2012 - 2013 KIT,FRONT,MUSTANG 2005-2011,AERO6,14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO6, 6-PISTON, RED POWDER COAT
14" Rotor
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Ford Mustang Bullitt 2008 KIT,FRONT,MUSTANG 2005-2011,AERO6,14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO6, 6-PISTON, RED POWDER COAT
14" Rotor
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Ford Mustang GT 2005 - 2013 KIT,FRONT,MUSTANG 2005-2011,AERO6,14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO6, 6-PISTON, RED POWDER COAT
14" Rotor
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Ford Mustang GT 2011 - 2012 KIT,FRONT,MUSTANG 2005-2011,AERO6,14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO6, 6-PISTON, RED POWDER COAT
14" Rotor
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Except Performance Brakes
With Performance Brakes
Ford Mustang GT 2014 KIT,FRONT,MUSTANG 2005-2011,AERO6,14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO6, 6-PISTON, RED POWDER COAT
14" Rotor
with Brembo Brakes
Except with Brembo Brakes
Ford Mustang Shelby GT500 2013 - 2014 KIT,FRONT,MUSTANG 2005-2011,AERO6,14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO6, 6-PISTON, RED POWDER COAT
14" Rotor
Ford Mustang Shelby GT500 2007 - 2012 KIT,FRONT,MUSTANG 2005-2011,AERO6,14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO6, 6-PISTON, RED POWDER COAT
14" Rotor
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Ford Mustang Shelby 2014 KIT,FRONT,MUSTANG 2005-2011,AERO6,14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO6, 6-PISTON, RED POWDER COAT
14" Rotor
Ford Mustang 2007 - 2009 KIT,FRONT,MUSTANG 2005-2011,AERO6,14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO6, 6-PISTON, RED POWDER COAT
14" Rotor
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Except Shelby GT500 Models
Ford Mustang 2008 KIT,FRONT,MUSTANG 2005-2011,AERO6,14.00 C/SiC ROTOR,RED; RTR:14.00-IN DIA, WCCD CARBON-CERAMIC, PLAIN FACE; CLPR:AERO6, 6-PISTON, RED POWDER COAT
14" Rotor
Flexline kit 220-9248 used with Internal Drum P-brake Kit, Flexline kit 220-10417 used with CPB Kit.
Except Shelby GT500 and Bullit Models

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Components & Specs / Rotors
Bedded No
Design Type C/SiC
Dynamically Balanced No
Left Hand - Part No 160-12442
Material C/SiC
Outside Diameter (in) 14.00
Right Hand - Part No 160-12442
Style Plain Face
Surface Finish Plain
Type WCCD Carbon-Ceramic
Vane Count 24 V
Width (in) 1.25
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
O-ring Kit 130-5972
Replacement Piston 1 200-7519
Replacement Piston 2 200-7513
Replacement Piston 3 200-7513
Wear Plate - Left Hand 300-5876
Wear Plate - Right Hand 300-5876
Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 X 4.50
Bolt Circle 2 5 X 4.75
Finish Color Type III Anodize
Hat - Part No 170-12624
Hat Offset Dimension (in) 0.658
Material Aluminum
Stud Diameter - BC 1 0.520
Stud Diameter - BC 2 0.520
Stud Diameter - BC 3 0.000
Type Big Brake Dynamic Bobbin Mount Hat - Short Offset
Parts & Accessories / Hat
Bolt Kit Call
Kit Components & Specs / Calipers
Brake Pad Area (In²) 11.1
Brake Pad Plate 6617
Brake Pad Volume (In³) 5.2
Finish Color Red Powder Coat
Left Hand - Part No 120-13290-RD
Mount Type Radial
Pad Compound PCM
Piston 1 Bore (in) 1.62
Piston 2 Bore (in) 1.12
Piston 3 Bore (in) 1.12
Piston Area (In²) 4.04
Piston Count 6
Piston Type Stainless
Right Hand - Part No 120-13289-RD
Type AERO6
Caliper Type 6 - Red Powder Coat
Min Wheel Diameter Req'd* 18
Mount Type Radial
Rotor Diameter 14.00
Spindle Type Factory Disc Spindle
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-9111
