Wilwood Brakes 2015-2018 Ford Mustang Dynapro Radial Front Drag Brake Kit 140-14100-D

Wilwood Brakes 2015-2018 Ford Mustang Dynapro Radial Front Drag Brake Kit 140-14100-D
Wilwood Brakes 2015-2018 Ford Mustang Dynapro Radial Front Drag Brake Kit 140-14100-DWilwood Brakes 2015-2018 Ford Mustang Dynapro Radial Front Drag Brake Kit 140-14100-DWilwood Brakes 2015-2018 Ford Mustang Dynapro Radial Front Drag Brake Kit 140-14100-DWilwood Brakes 2015-2018 Ford Mustang Dynapro Radial Front Drag Brake Kit 140-14100-DWilwood Brakes 2015-2018 Ford Mustang Dynapro Radial Front Drag Brake Kit 140-14100-DWilwood Brakes 2015-2018 Ford Mustang Dynapro Radial Front Drag Brake Kit 140-14100-D
$2,733.99 ea
NEWOut of stock with WILWOOD ENGINEERING as of 03/28/2024
Model: 3921952
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

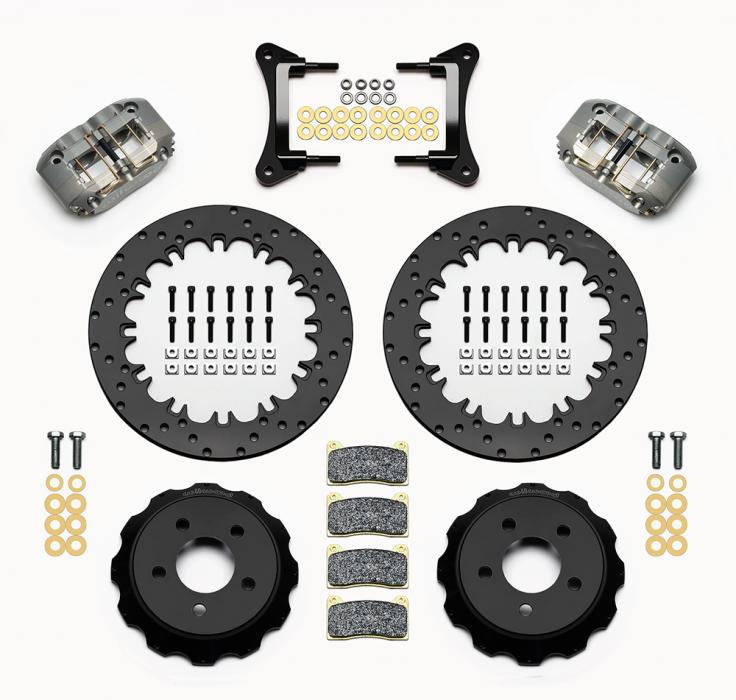

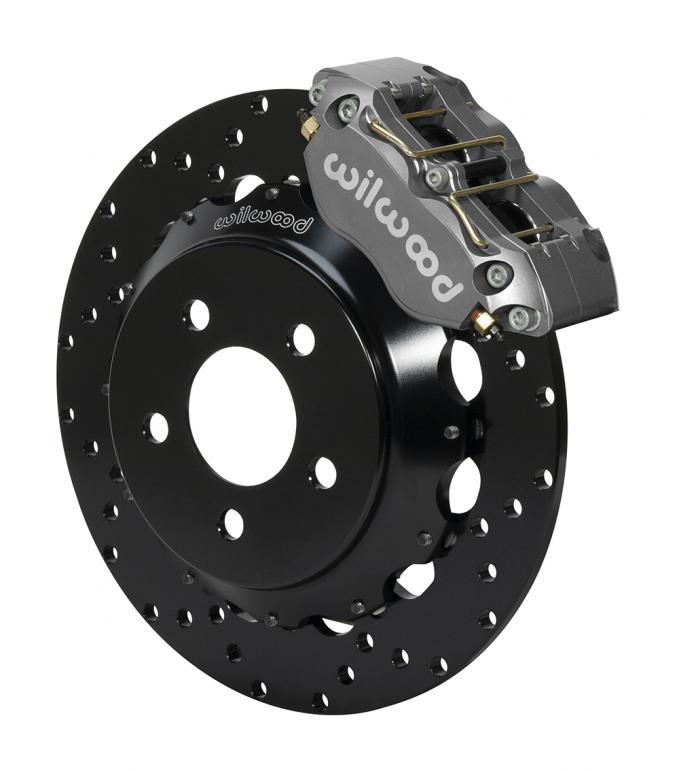

DynaPro4R Drag Race front brake kits deliver high torque stopping power with a substantial weight savings over the OE brake components. Dynamic mount steel rotors weigh only 5.7 pounds each. They attach to the OE hubs with lightweight forged aluminum hats using our T-nut mounting system that allows the rotor to move independently of the hat during heat cycles. This eliminates stress at the mount points and the subsequent rotor distortion that can otherwise occur with fixed mount steel plate rotors. Dynamic mount rotors also assure full release from the pads to run true and drag free down the track. Clamping force is provided by radial mount DynaPro 4R four piston aluminum calipers weighing in at only 4.1 pounds each. DP4R calipers feature stainless steel pistons, internal bore seals, stainless steel bridge wear plates, and allow easy access to the pads for service without removing the calipers from the mount. BP-20 compound SmartPads provide high response and holding power when cold, and resistance to fade when hot. The complete package mounts to the OE spindle with full bolt-on installation. This kit is configured for drag racing only and is not recommended for street use. A minimum size 17” wheels are required along with a stainless steel braided flexline kit available separately.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds1144.pdf560.45KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Ford Mustang Base 2015 KIT,DRAG,FRONT,MUSTANG 15-UP,NDPR 12.90x.38 ROTOR,DRILLED,ANO; RTR:12.90-IN DIA, SRP DRILLED ROTOR, DRILLED; CLPR:NARROW DYNAPRO RADIAL MOUNT, 4-PISTON, TYPE III ANO
Ford Mustang EcoBoost Premium 2015 - 2018 KIT,DRAG,FRONT,MUSTANG 15-UP,NDPR 12.90x.38 ROTOR,DRILLED,ANO; RTR:12.90-IN DIA, SRP DRILLED ROTOR, DRILLED; CLPR:NARROW DYNAPRO RADIAL MOUNT, 4-PISTON, TYPE III ANO
Ford Mustang EcoBoost 2015 - 2018 KIT,DRAG,FRONT,MUSTANG 15-UP,NDPR 12.90x.38 ROTOR,DRILLED,ANO; RTR:12.90-IN DIA, SRP DRILLED ROTOR, DRILLED; CLPR:NARROW DYNAPRO RADIAL MOUNT, 4-PISTON, TYPE III ANO
Ford Mustang GT Premium 2015 - 2018 KIT,DRAG,FRONT,MUSTANG 15-UP,NDPR 12.90x.38 ROTOR,DRILLED,ANO; RTR:12.90-IN DIA, SRP DRILLED ROTOR, DRILLED; CLPR:NARROW DYNAPRO RADIAL MOUNT, 4-PISTON, TYPE III ANO
Except Shelby GT300 Models
Ford Mustang GT 2015 - 2018 KIT,DRAG,FRONT,MUSTANG 15-UP,NDPR 12.90x.38 ROTOR,DRILLED,ANO; RTR:12.90-IN DIA, SRP DRILLED ROTOR, DRILLED; CLPR:NARROW DYNAPRO RADIAL MOUNT, 4-PISTON, TYPE III ANO
Except Shelby GT300 Models
Ford Mustang V6 2016 - 2017 KIT,DRAG,FRONT,MUSTANG 15-UP,NDPR 12.90x.38 ROTOR,DRILLED,ANO; RTR:12.90-IN DIA, SRP DRILLED ROTOR, DRILLED; CLPR:NARROW DYNAPRO RADIAL MOUNT, 4-PISTON, TYPE III ANO
Ford Mustang 2015 KIT,DRAG,FRONT,MUSTANG 15-UP,NDPR 12.90x.38 ROTOR,DRILLED,ANO; RTR:12.90-IN DIA, SRP DRILLED ROTOR, DRILLED; CLPR:NARROW DYNAPRO RADIAL MOUNT, 4-PISTON, TYPE III ANO
Except Shelby GT300 Models

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Components & Specs / Rotors
Bedded No
Design Type Solid
Dynamically Balanced No
Left Hand - Part No 160-4766
Material Steel
Outside Diameter (in) 12.90
Right Hand - Part No 160-4766
Style Drilled
Surface Finish Black Electro Coat
Type SRP Drilled Rotor
Vane Count Solid
Width (in) 0.38
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
Bridge Bolt Kit 230-10117
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-2655
Pad Retainer 300-9634
Replacement Piston 1 200-7528
Replacement Piston 2 200-7528
Wear Plate - Left Hand 300-5876
Wear Plate - Right Hand 300-5876
Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 X 4.50
Finish Color Black E-Coat
Hat - Part No 170-13926
Hat Offset Dimension (in) 1.380
Material Aluminum
Stud Diameter - BC 1 0.630
Stud Diameter - BC 2 0.000
Stud Diameter - BC 3 0.000
Type Big Brake Hat - Flared Bell
Parts & Accessories / Hat
Bolt Kit 230-8008
Kit Components & Specs / Calipers
Brake Pad Area (In²) 6.36
Brake Pad Plate 7812
Brake Pad Volume (In³) 2.1
Finish Color Type III Ano
Left Hand - Part No 120-9993
Mount Type Radial
Pad Compound BP-20
Piston 1 Bore (in) 1.75
Piston 2 Bore (in) 1.75
Piston Area (In²) 4.80
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-9993
Type Narrow Dynapro Radial Mount
Caliper Type 4 - Type III Ano

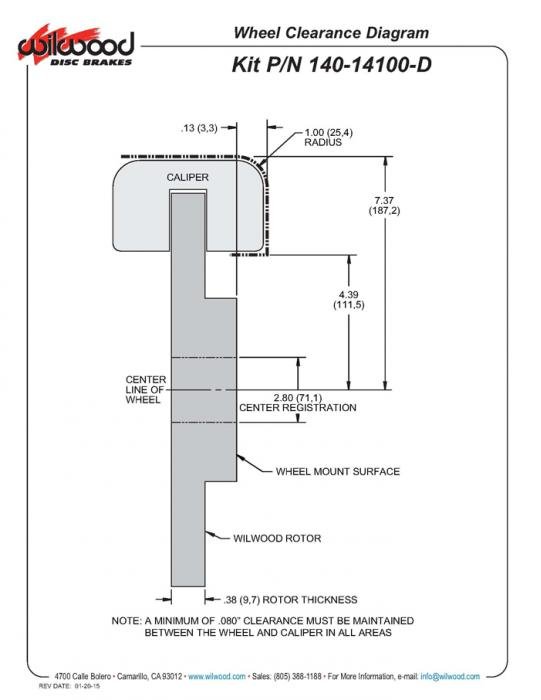

Min Wheel Diameter Req'd* 17
Mount Type Radial
Rotor Diameter 12.90
Spindle Type Factory Disc Spindle
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-13912
