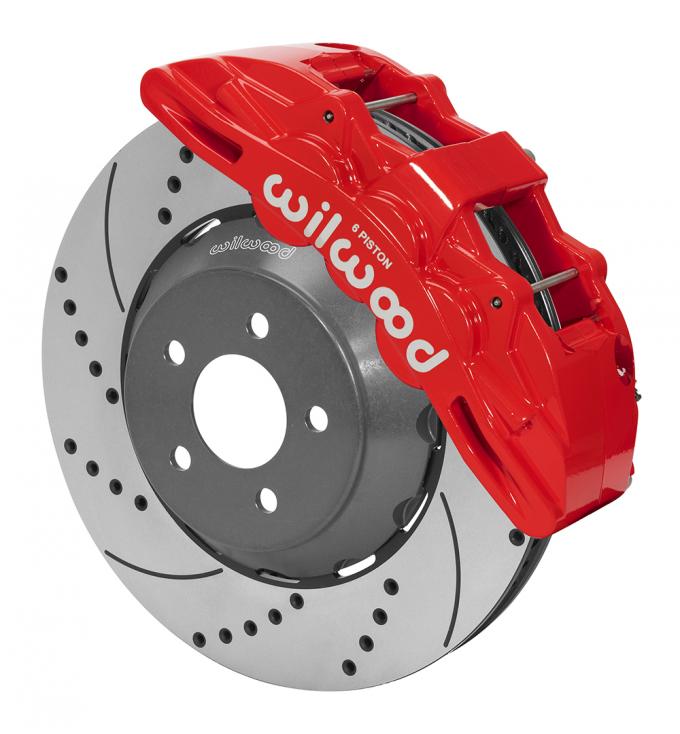

Wilwood Brakes 2015-2018 Ford Mustang SX6R Big Brake Dynamic Front Brake Kit 140-14928-DR

Wilwood Brakes 2015-2018 Ford Mustang SX6R Big Brake Dynamic Front Brake Kit 140-14928-DR
Wilwood Brakes 2015-2018 Ford Mustang SX6R Big Brake Dynamic Front Brake Kit 140-14928-DRWilwood Brakes 2015-2018 Ford Mustang SX6R Big Brake Dynamic Front Brake Kit 140-14928-DRWilwood Brakes 2015-2018 Ford Mustang SX6R Big Brake Dynamic Front Brake Kit 140-14928-DR
$6,698.99 ea
NEWARRIVING SOONEstimated Ship Date 04/11/2024 (If Ordered Today)5 Available from WILWOOD ENGINEERING as of 03/28/2024
Model: 3922165
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY

SX6R calipers were designed for the specific purpose of providing high capacity braking with large diameter rotors for extreme duty and race vehicles. It is the largest dual purpose caliper Wilwood has produced, providing big brake performance for show and dual purpose street and track vehicles. Offering additional enhanced braking with wheel and tire upgrades. Kits are fully compatible with OE master cylinder output and ABS function. Directional 72 staggered vane 14.00” to 15.00”rotors provide maximum cooling for sustained high heat durability.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds1271.pdf450.11KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Ford Mustang Base 2015 KIT,FRONT,MUSTANG,2015-UP,SX6R,LUG DRIVE 14.00 ROTOR,DRILLED,RED,W/LINES; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:SX6R, 6-PISTON, RED POWDER COAT
Ford Mustang EcoBoost Premium 2015 - 2018 KIT,FRONT,MUSTANG,2015-UP,SX6R,LUG DRIVE 14.00 ROTOR,DRILLED,RED,W/LINES; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:SX6R, 6-PISTON, RED POWDER COAT
Ford Mustang EcoBoost 2015 - 2018 KIT,FRONT,MUSTANG,2015-UP,SX6R,LUG DRIVE 14.00 ROTOR,DRILLED,RED,W/LINES; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:SX6R, 6-PISTON, RED POWDER COAT
Ford Mustang GT Premium 2015 - 2018 KIT,FRONT,MUSTANG,2015-UP,SX6R,LUG DRIVE 14.00 ROTOR,DRILLED,RED,W/LINES; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:SX6R, 6-PISTON, RED POWDER COAT
Except Shelby GT300 Models
Ford Mustang GT 2015 - 2018 KIT,FRONT,MUSTANG,2015-UP,SX6R,LUG DRIVE 14.00 ROTOR,DRILLED,RED,W/LINES; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:SX6R, 6-PISTON, RED POWDER COAT
Except Shelby GT300 Models
Ford Mustang V6 2016 - 2017 KIT,FRONT,MUSTANG,2015-UP,SX6R,LUG DRIVE 14.00 ROTOR,DRILLED,RED,W/LINES; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:SX6R, 6-PISTON, RED POWDER COAT
Ford Mustang 2015 KIT,FRONT,MUSTANG,2015-UP,SX6R,LUG DRIVE 14.00 ROTOR,DRILLED,RED,W/LINES; RTR:14.00-IN DIA, SRP DRILLED ROTOR, DRILLED & SLOTTED; CLPR:SX6R, 6-PISTON, RED POWDER COAT
Except Shelby GT300 Models

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit
Kit Components & Specs / Rotors
Bedded No
Design Type SRP-BLK
Dynamically Balanced Yes
Left Hand - Part No 165-15332
Material Spec-37 Iron
Outside Diameter (in) 14.00
Right Hand - Part No 165-15331
Style SRP Drilled & Slotted
Surface Finish Black Electro Coat
Type SRP Drilled Rotor
Vane Count 72 CV
Width (in) 1.25
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-0627
O-ring Kit 130-3084
Pad Retainer 180-14649
Replacement Dustboot Call
Replacement Piston 1 200-7531
Replacement Piston 2 200-7516
Replacement Piston 3 200-7516
Wear Plate - Left Hand 300-5876
Wear Plate - Right Hand 300-5876
Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 X 4.50
Finish Color Type III Anodize
Hat - Part No 170-14910
Hat Offset Dimension (in) 1.370
Material Aluminum
Stud Diameter - BC 1 0.630
Stud Diameter - BC 2 0.000
Stud Diameter - BC 3 0.000
Type Big Brake Dynamic Lug Drive - Flared Bell
Parts & Accessories / Hat
Bolt Kit 300-14912
Kit Components & Specs / Calipers
Brake Pad Area (In²) 15.9
Brake Pad Plate D1792
Brake Pad Volume (In³) 7.66
Finish Color Red Powder Coat
Left Hand - Part No 120-14861-RD
Mount Type Radial
Pad Compound BP-10
Piston 1 Bore (in) 1.75
Piston 2 Bore (in) 1.38
Piston 3 Bore (in) 1.38
Piston Area (In²) 5.40
Piston Count 6
Piston Type Stainless
Right Hand - Part No 120-14860-RD
Type SX6R
Caliper Type 6 - Red Powder Coat
Min Wheel Diameter Req'd* 18
Mount Type Radial
Rotor Diameter 14.00
Spindle Type Factory Disc Spindle
Parts & Accessories / Brake Lines
Front Line Kit 220-13912
