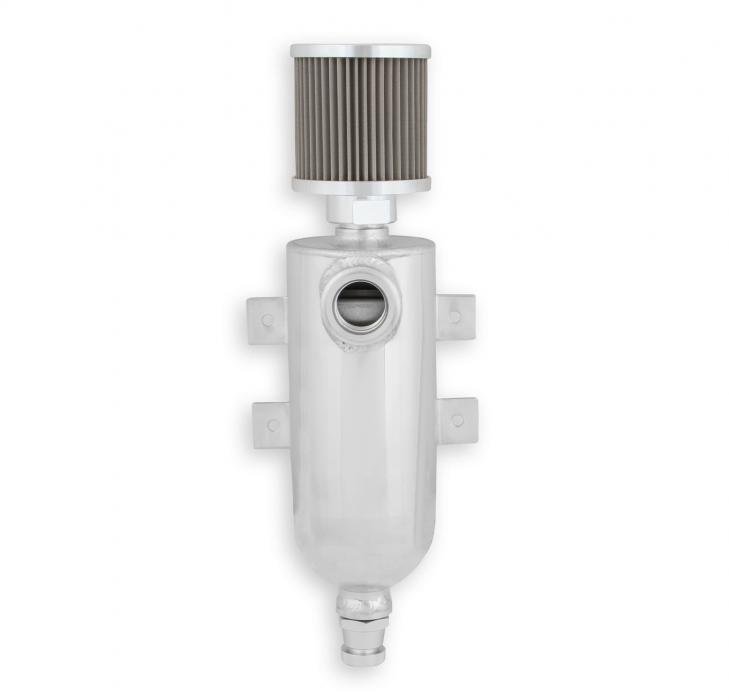

Earl's breather tanks are made from 6061 aluminum and have internal oil baffling. These tanks feature a -12 AN O-ring inlet port, knurled drain valve with an optional 1/8" NPT outlet port for use with a remote drain (or to drain back to the oil pan), w/ 4-bolt mounting brackets. Includes a heavy duty stainless steel mesh filter which has a billet aluminum housing to reduce weight. The filter may be removed to expose a -12AN Male. Ideal for use in all racing applications (i.e. engine PCV, dry sump tanks, transmissions, and rear-end venting). Choose from black anodized or polished aluminum finish.
Features:
- 6061 Aluminum Catch Tanks w/ Baffle Inside
- Choose from Polished Aluminum or Black Anodized Finish
- Dimensions: Overall Height 13.25” x Diameter 3.15” x Depth 3.20”

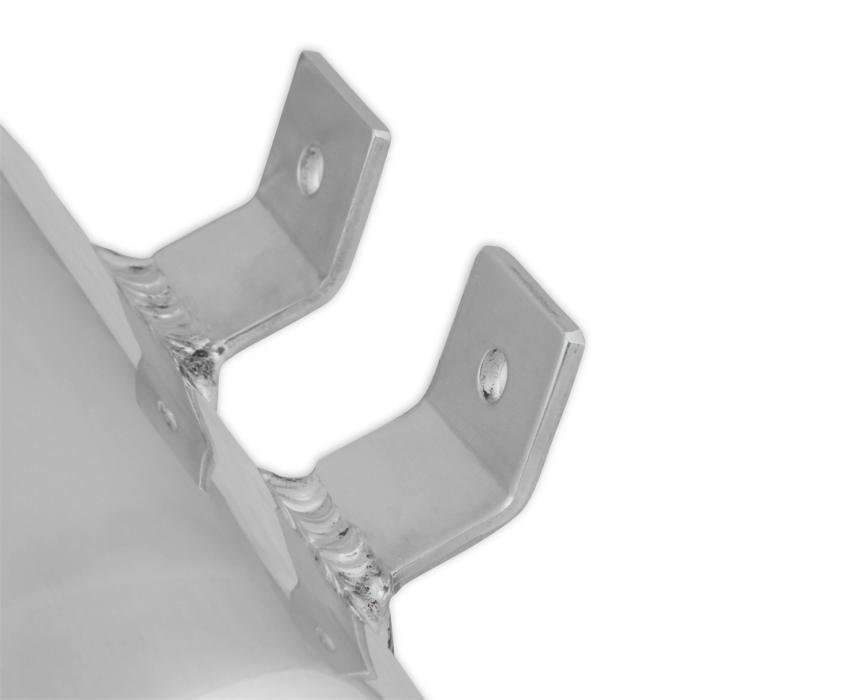

- 4-Bolt Mounting Brackets – Bolt Pattern 4.13” x 2.40”, Overall Bracket Width 5.07

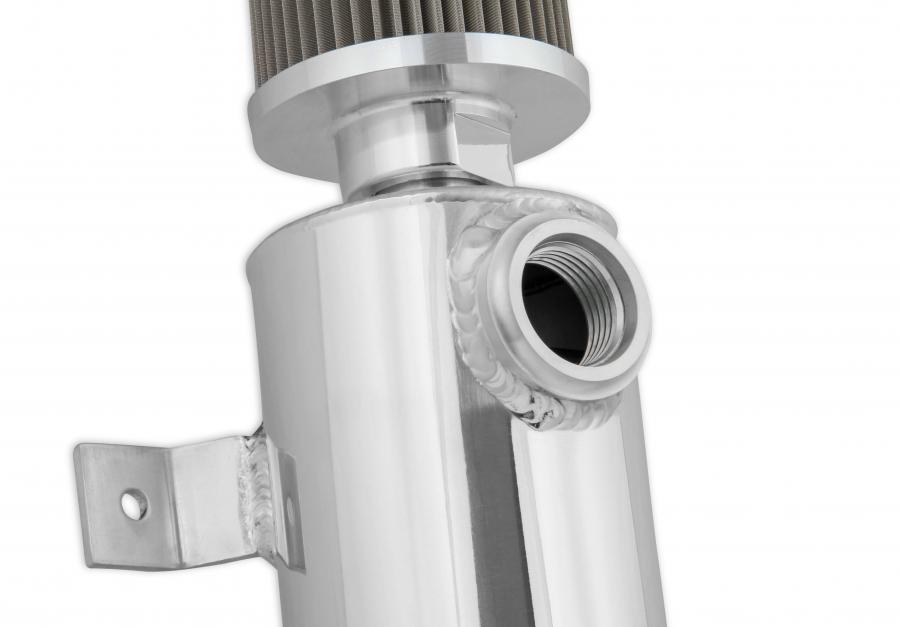

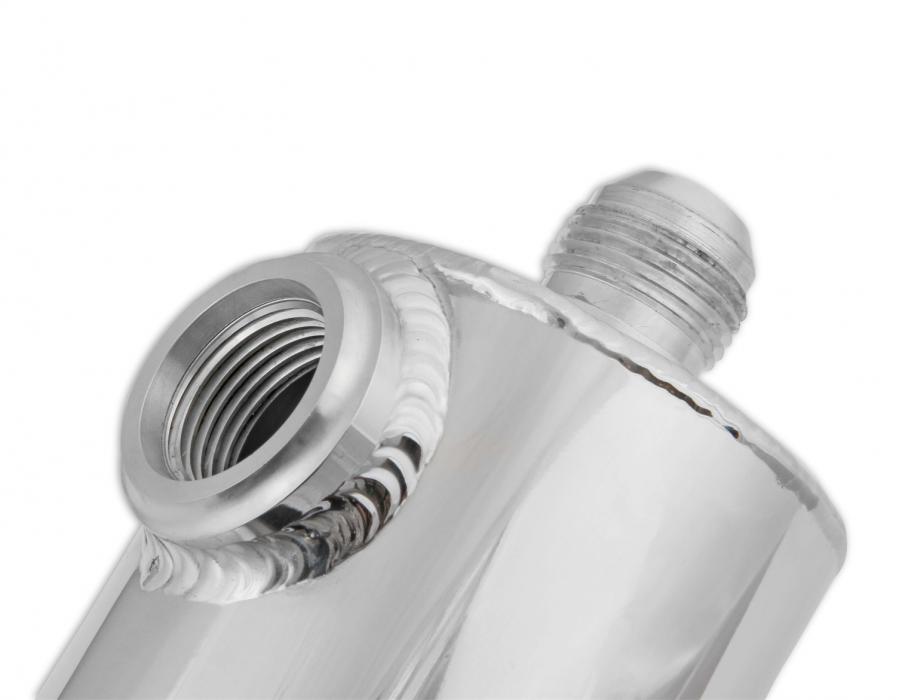

- Inlet: -12 AN ORB Female

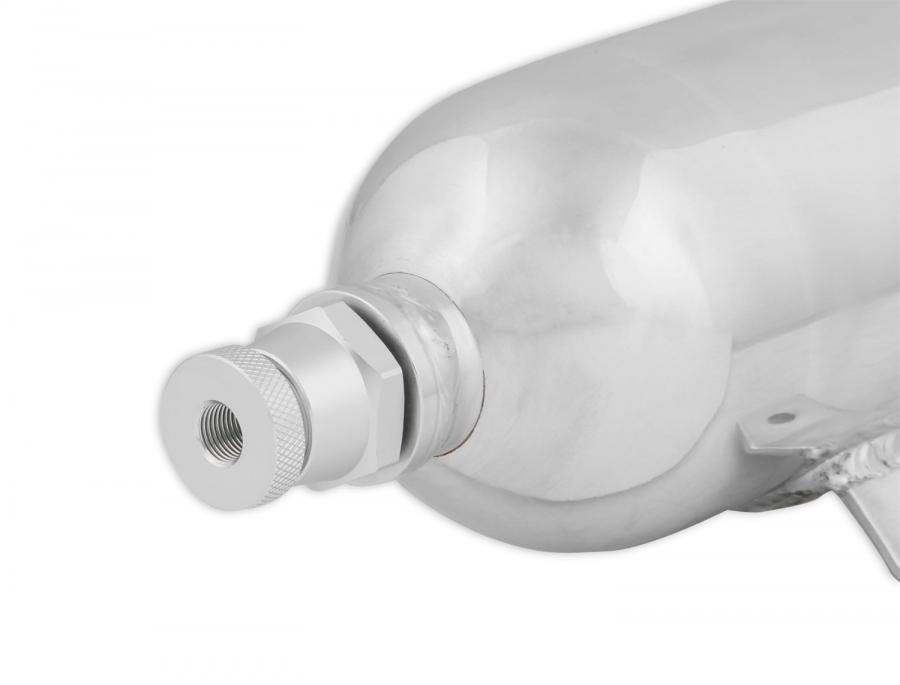

- Drain w/ Knurled Screw & 1/8” NPT Outlet (for optional remote drain)

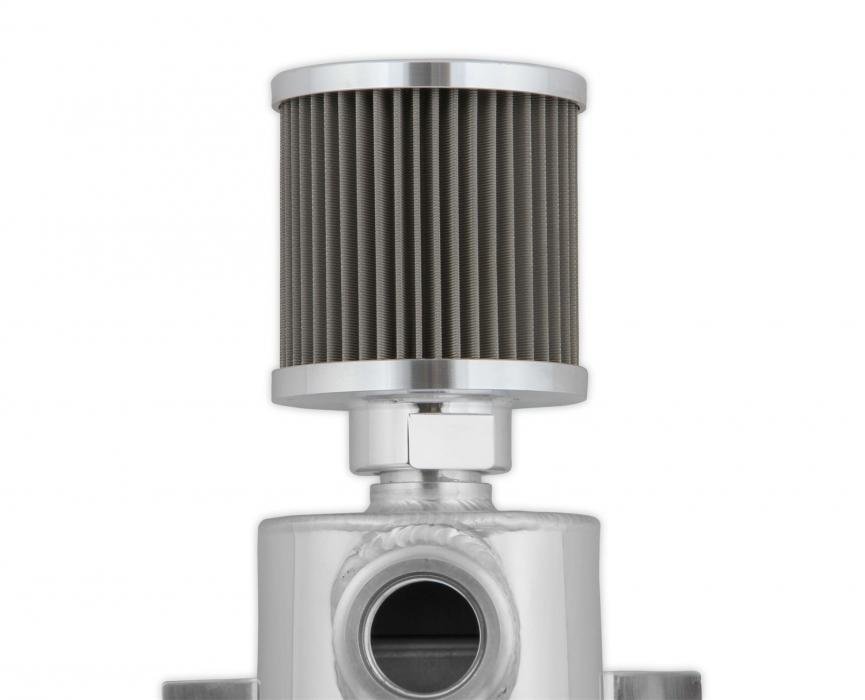

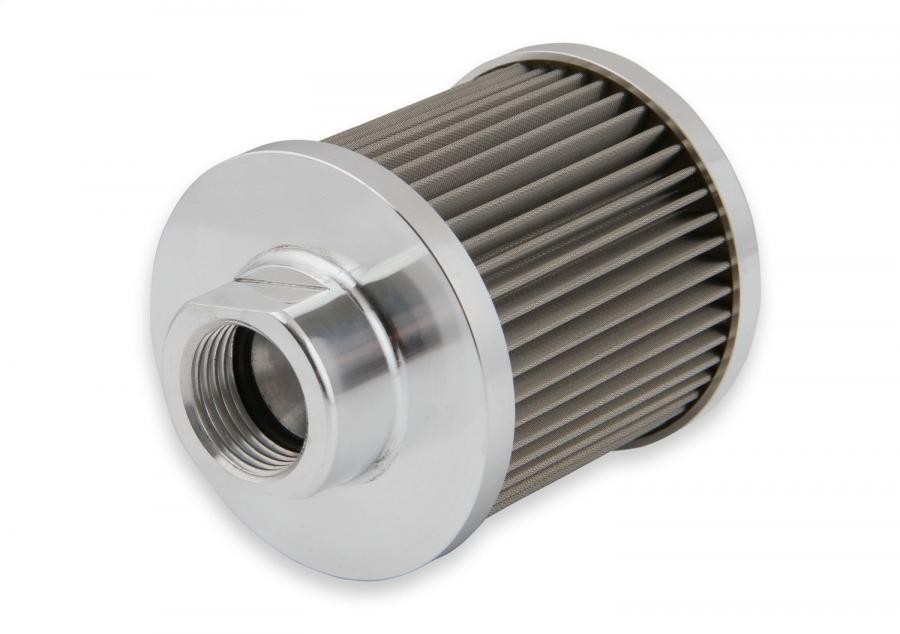

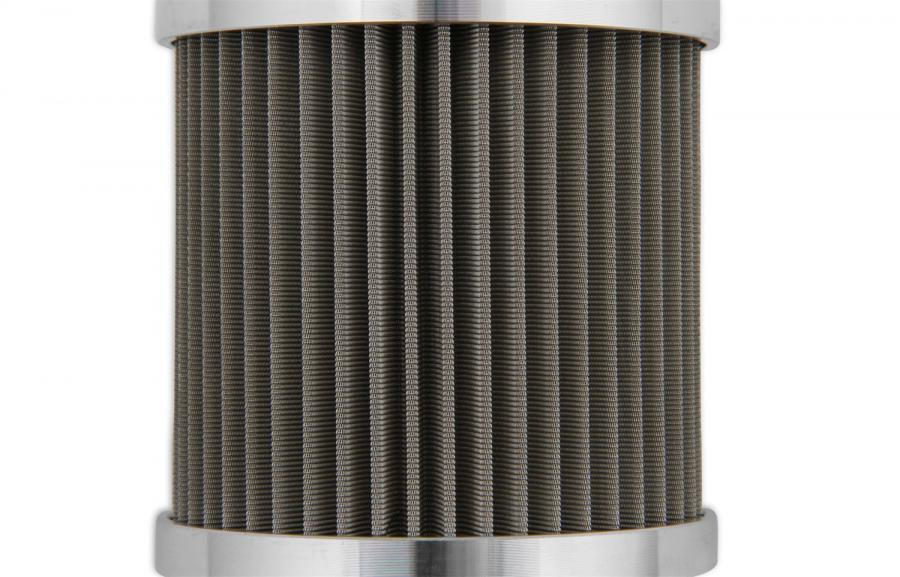

- Billet Aluminum Housing with Stainless Steel Mesh Filter w/ -12 AN Female Inlet
- Welded Construction
- Capacity: 0.75L
- Meets Requirements of Most Racing Sectioning Bodies – for Oil Catch Tank
- Weight: 1.5 LB
- Pressure Tested to 75psi
