Earl's Performance Products was founded by Earl Fouts in 1955 in Lawndale, California. The mission was to supply high-quality military aircraft surplus plumbing components directly to the racing industry from a small retail outlet. As the military surplus market dried up, Earl recognized the need for continuity of supply for the racing market and pioneered the Earl's range of hoses and fittings that are still used today. In doing so he created the racing aftermarket plumbing industry.
Download Name | File Size |
199r11610.pdf | 670.77KB |
Amp Draw | 4.8 |
Amperage Draw | 4.8 |
Application | Differential Cooler |
Blade Quantity | 5 |
Blade Style | Paddle |
Blade Type | Paddle |
Body Width | 16.000 in. |
Body Width (Overall) | 16.000" |
Bracket Included | No |
Brackets Included | No |
Capacity | 0.55 qt. |
Construction | Stacked Plate - Brazed |
Cooler Fittings | 585106ERL |
Cooler Fittings Included | No |
Emission Code | 5 |
Engine HP Range | 300-400 |
Engine Oil BTU Range | 35000-50000 |

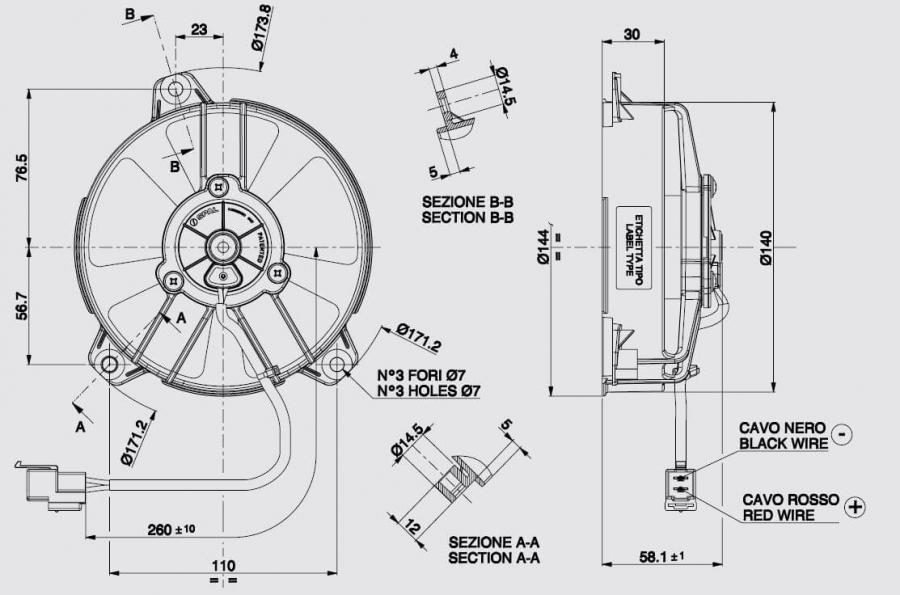

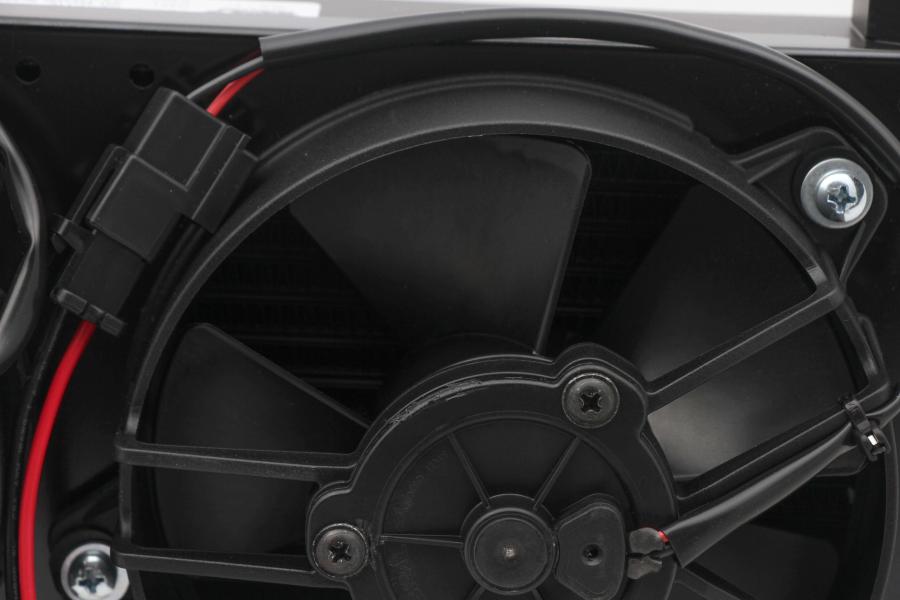

Fan Diameter | 4.800 in. |
Fan Style | Puller |
Fan Type | Electric |
Finish | Black |
Fitting Centers | 12.480 in. |
Fitting Number | 585106ERL, 585108ERL, 585110ERL, 585112ERL |
Fittings Included | No |
Height | 6.060" |
Item Height | 6.060 in. |
Item Weight | 7.200 lbs. |
Material | Aluminum |
Max Fan CFM | 342 |
Mounting Bracket Number | 800ERL |
Mounting Bracket Width | 15.160 in. |
Mounting Brackets | 800ERL |
Number Of Blades | 5 |
Part Type | Engine Oil Cooler |
Port Size | 0.875 in. -14 Female (-10 O-Ring Boss) |

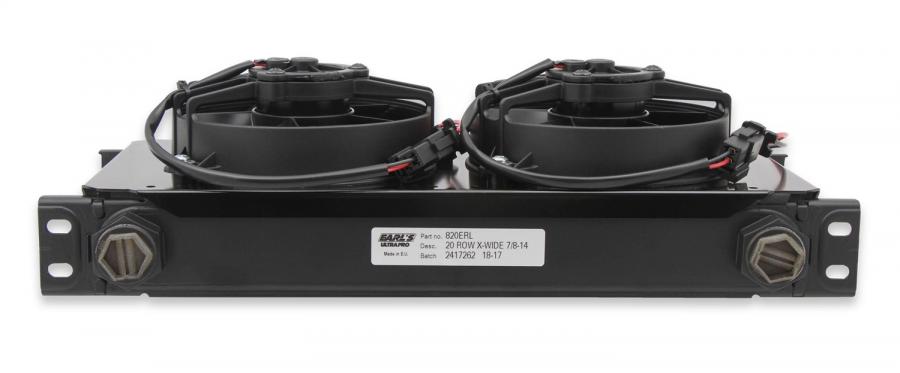

Product Line | UltraPro w/ Fan Pack |
Radiator Core Row Quantity | 20 |
Rows | 20 Rows |
Shroud Material | Aluminum |
Temperature Range | -40° F to 302° F |
Thickness | 5.500 in. |
Transmission Fluid BTU Range | 16500-29500 |
Voltage | 12 V |
Volume | .55 Quarts |
WARNING CA Proposition 65 | WARNING: Cancer and Reproductive Harm |
Weight | 7.20 Lbs |
Width | Extra-Wide Cooler |
Width (Less Mounting Ears) | 14.125 in. |
