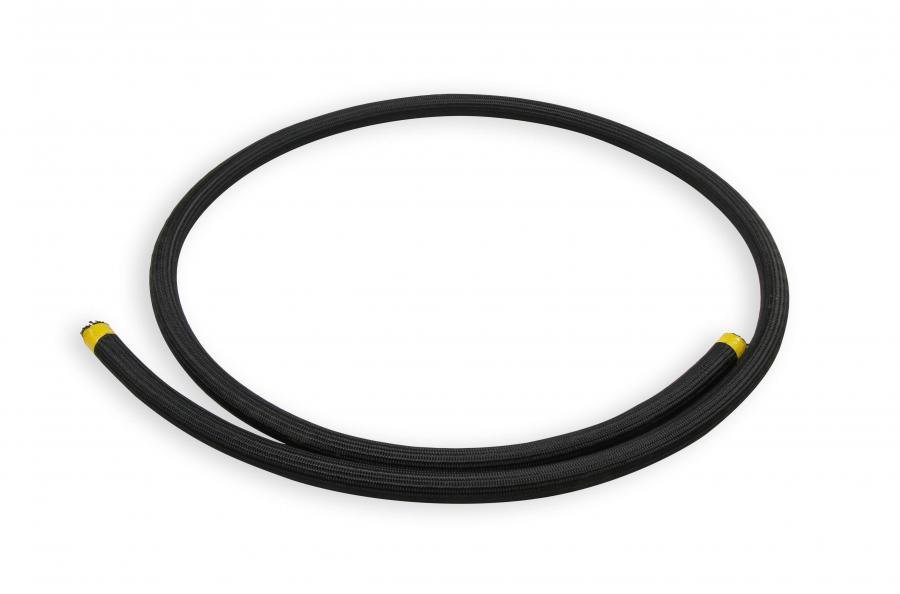

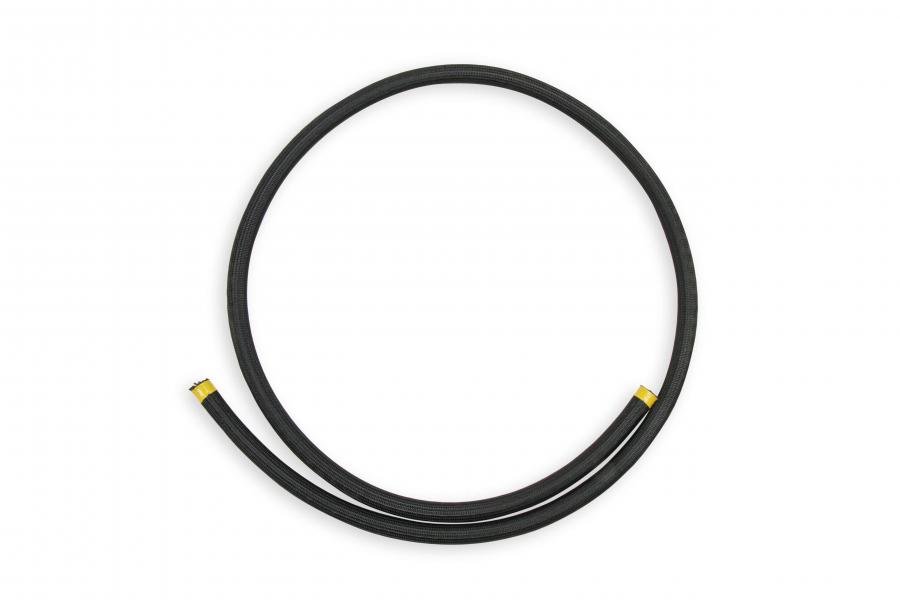

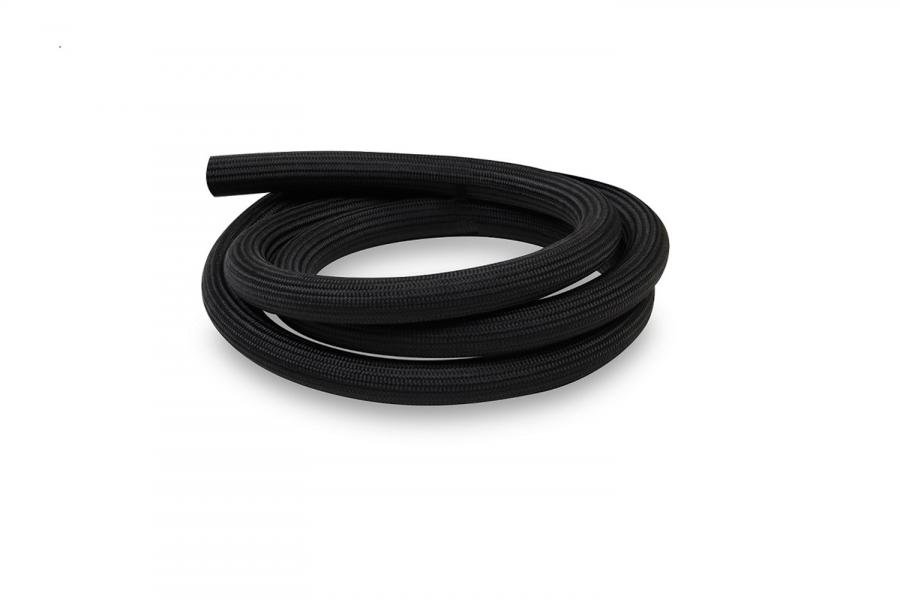

Earl's UltraPro Series Hose, Size 12, 33 Ft 683312ERL

Earl's UltraPro Series Hose, Size 12, 33 Ft 683312ERL
Earl's UltraPro Series Hose, Size 12, 33 Ft 683312ERLEarl's UltraPro Series Hose, Size 12, 33 Ft 683312ERLEarl's UltraPro Series Hose, Size 12, 33 Ft 683312ERL
$1,275.99 ea
NEWARRIVING SOONEstimated Ship Date 05/30/2025 (If Ordered Today)1 Available from HOLLEY PERFORMANCE PRODUCTS as of 05/12/2025
Model: 4001748
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Modern day high performance vehicles require a plumbing system designed to withstand today's fuids, harsh environments, brutal vibration, flow requirements & extreme pressures. UltraPro from Earl's was engineered as a system to exceed the rigorous demands of even the most extreme forms of racing. Don't settle for good enough. Go UltraPro!
Features:
  • PTFE inner liner impervious to all known fuels, oils and coolants used in automotive applications
  • Designed to withstand harsh environments, brutal vibrations, high flow requirements and extreme pressures

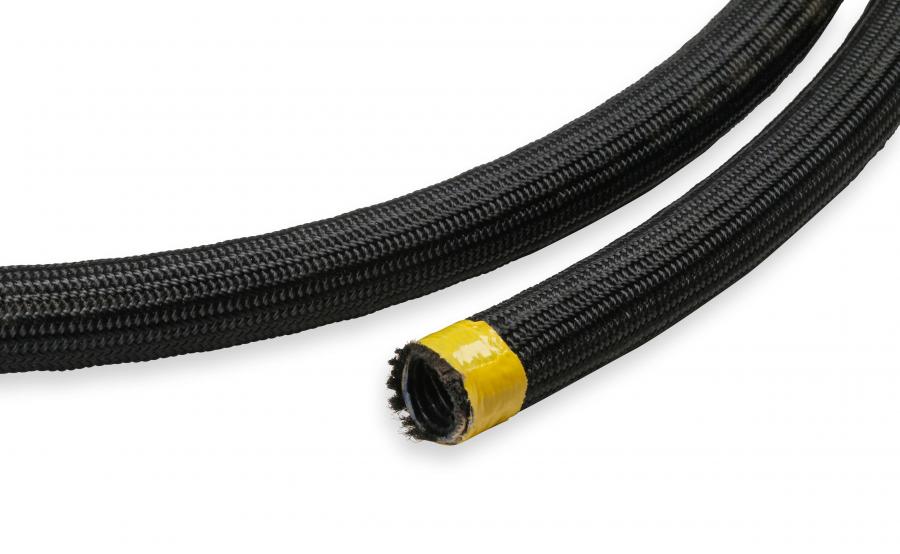

  • Double-helix ribbed inner hose liner offers extreme flexibility and full flow making tough plumbing jobs a snap with less hard connections!
  • Liner is reinforced with an outside glass-fiber wrap for additional strength and integrity!
  • PTFE inner liner is carbon infused for static dissipation
  • PTFE inner liner has ultra low coefficient of friction to promote maximum flow
  • Assembled with an olive that threads onto the double-helix ribbed inner liner of the hose for positive engagement and retention of the hose-ends
  • Available in popular -6, -8, -10, -12, -16, and -20 sizes in both woven polyester braid and stainless steel braid
  • UltraPro Polyester Braid hose is up to 67% lighter than traditional rubber hose with stainless steel braid
  • UltraPro Stainless Steel Braid is up to 37% lighter than traditional rubber hose with stainless steel braid
Note: All UltraPro Hose Ends must be crimped using the Earl's D105M1101ERL Crimping Machine and D10022BERL Crimp Die. All UltraPro hose assemblies must be pressure tested prior to use.
Installation Notes:
Note: All UltraPro Hose Ends must be crimped using the Earl's D105M1101ERL Crimping Machine and D10022BERL Crimp Die. All UltraPro hose assemblies must be pressure tested prior to use.

Downloads:

Download Name File Size
199r10853.pdf799.05KB
199r11133.pdf845.85KB
199r11200.pdf1.19MB

Videos:

Specifications:

Carbon Lined Yes
Compatible Hose Ends UltraPro - Crimp On, UltraPro - Twist On
Crimping Die 22MM - D10022BERL
Emission Code 5
Final Crimp O.D. Range .982"-.986"
Final Crimp O.D. Range .982"-.986"
Fluid Type Pump Gas, Diesel, Automatic Transmission Fluid, Coolant, Oil, Race Gas, Bio-Fuels, E85, Methanol/Alcohol
Fluid Type Rating - Automatic Transmission Fluid 5 out of 5 Rating
Fluid Type Rating - Bio-Fuels 5 out of 5 Rating
Fluid Type Rating - Coolant 5 out of 5 Rating
Fluid Type Rating - Diesel 5 out of 5 Rating
Fluid Type Rating - E85 5 out of 5 Rating
Fluid Type Rating - Methanol/Alcohol 5 out of 5 Rating
Fluid Type Rating - Oil 5 out of 5 Rating
Fluid Type Rating - Pump Gas 5 out of 5 Rating
Fluid Type Rating - Race Gas 5 out of 5 Rating
Hose Family UltraPro
Hose Length 33 Feet
Hose Outer Material Black Polyester
Hose Size 12 AN
Inside Diameter .646"
Max Vacuum 20 in Hg
Max Working PSI 250 PSI
Min. Bend Radius 2.5"
Outside Diameter .905"
Part Type Fuel Hose
Product Type UltraPro Black Polyester Braided
Proposition 65 www.P65Warnings.ca.gov
Submersible in Fuel No
Temperature Range -67° F to 257° F
