Holley In-Line Universal Electric Fuel Pump 12-920

Holley In-Line Universal Electric Fuel Pump 12-920
Holley In-Line Universal Electric Fuel Pump 12-920
$328.99 ea
NEWARRIVING SOONEstimated Ship Date 08/18/2021 (If Ordered Today)453 available from HOLLEY PERFORMANCE PRODUCTS as of 08/01/2021
Model: 3991342
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

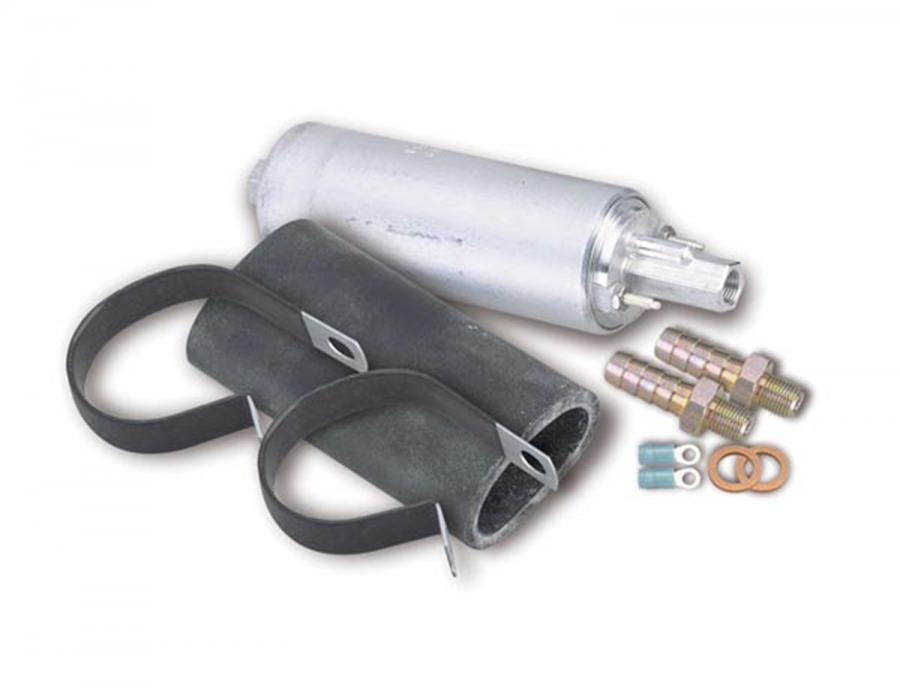

Holley offers a full line of high performance inline fuel pumps. These Holley electric in-tank fuel pumps have a lightweight. compact design to fit most EFI applications, including turbo and supercharged.
Features:
  • Draws 5 Amps At 15 PSI
  • Will Feed Up To 800 Horsepower Throttle Body EFI Units
  • Will Feed Up To 700 Horsepower Multipoint Units
  • Will Feed Up To 600 Hp Forced Induction Multipoint Units
  • Lightweight and Compact
  • 3/8 in. Barbed Fittings Included
Holley Performance Emission Code 3: This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles. The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles: 1965 and older U.S. manufactured California Certified vehicles/1967 and older U.S. manufactured Federally Certified vehicles/1967 and older Foreign manufactured vehicle. The following vehicles are considered Racing Use Only Vehicles: Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street. WARNING: It is against the law to install this part on an Emissions Controlled Vehicle. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle
Installation Notes:
Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. 10mm x 1.0 inlet and outlets. Includes 10mm x 1.0 gasket sealed 3/8" Outside diameter hose barbs. A/N adapters are available: -6 AN, Part number 26-160. -8 AN, Part number 26-180

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
Warranty_Policy.pdf14.65KB
holleyfuelsystems_chart1.pdf360.32KB
fuel_pump_tech_info.pdf168.1KB
12-920.pdf48.53KB
Fuel_Pump_Tech_Info_12-920.pdf102.24KB
199r10289.pdf71.26KB

Specifications:

Application Universal
Body Color Silver
Bracket Color Black
Coast Guard Approved Yes
Emission Code 3

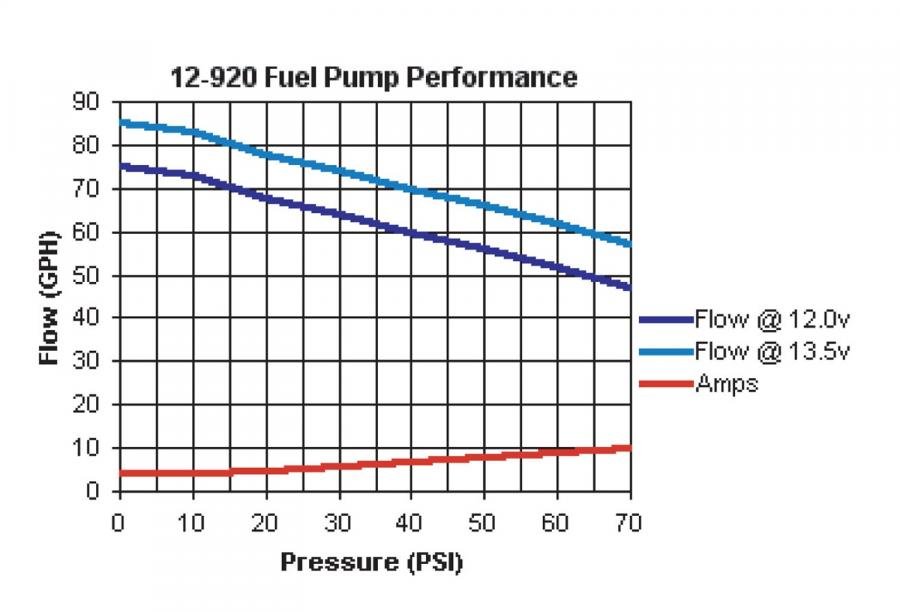

Forced Induction HP@43PSI 600
Free Flow GPH 80
Fuel System Carbureted
Fuel System Type Carbureted, EFI
Fuel Type Gasoline
GPH@15PSI 80
GPH@43PSI 67
GPH@60PSI 62
GPH@8PSI 85
Housing Color Silver
Inlet Size 10mm x 1.000 in.
LPH@15PSI 302
LPH@43PSI 235
LPH@60PSI 254
LPH@8PSI 322
Material Steel
Naturally Aspirated HP@15PSI 800
Naturally Aspirated HP@43PSI 700
Naturally Aspirated HP@8PSI 850
Outlet Size 10mm x 1.000 in.
Part Type Electric Fuel Pump
Pump Body Color Silver
