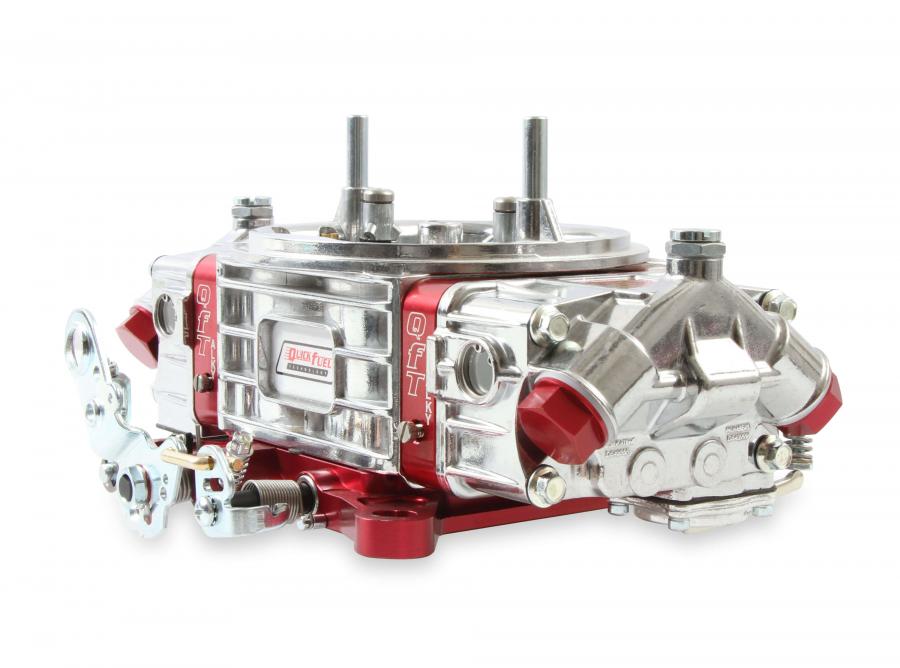

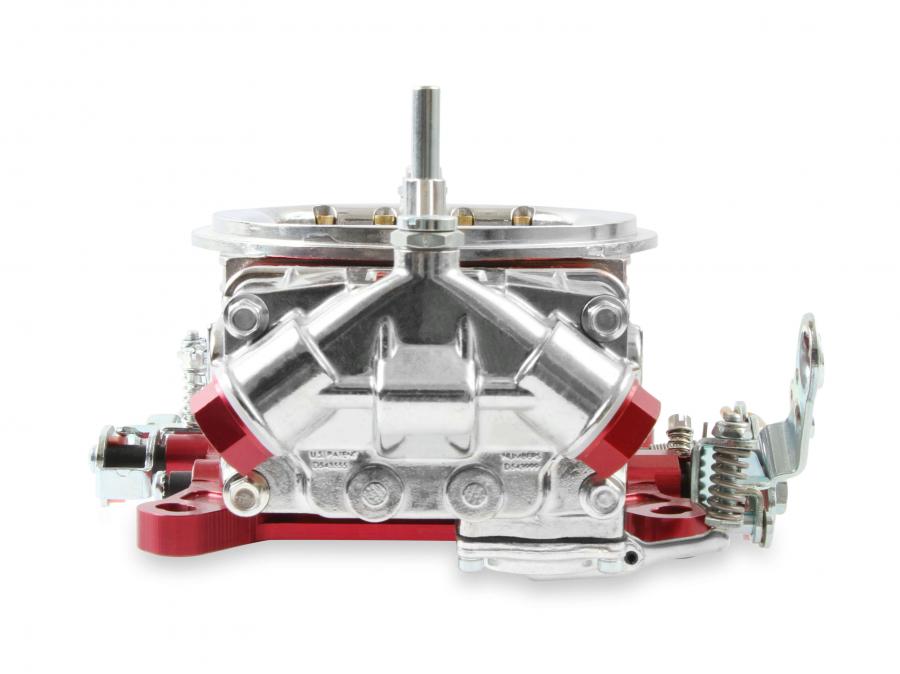

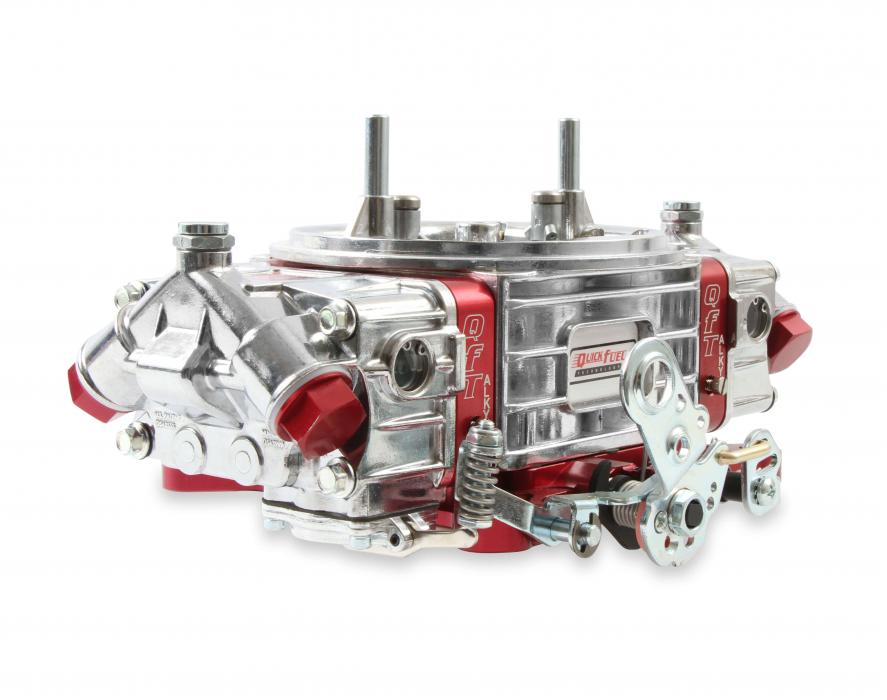

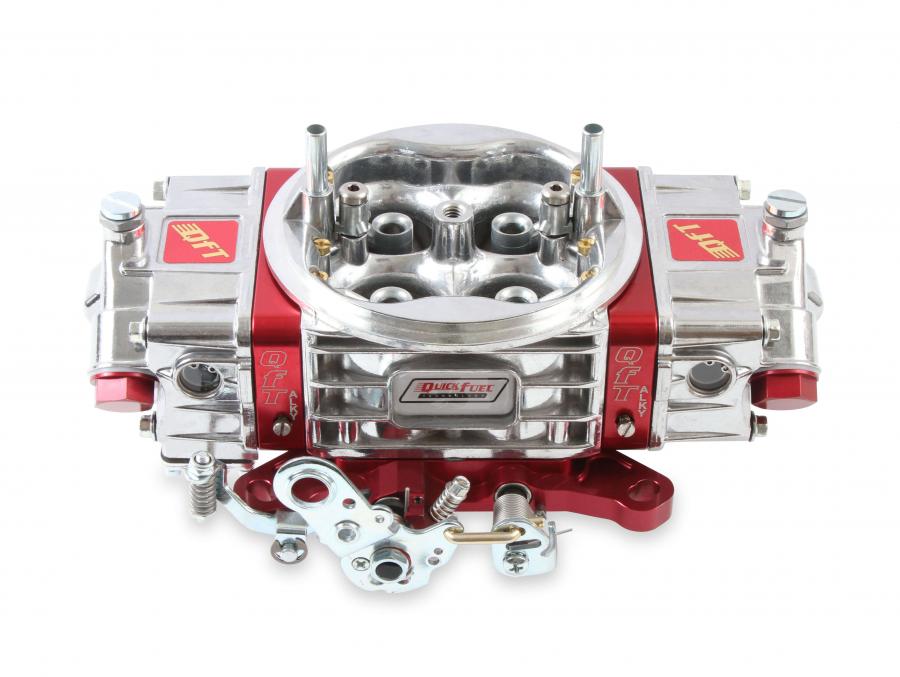

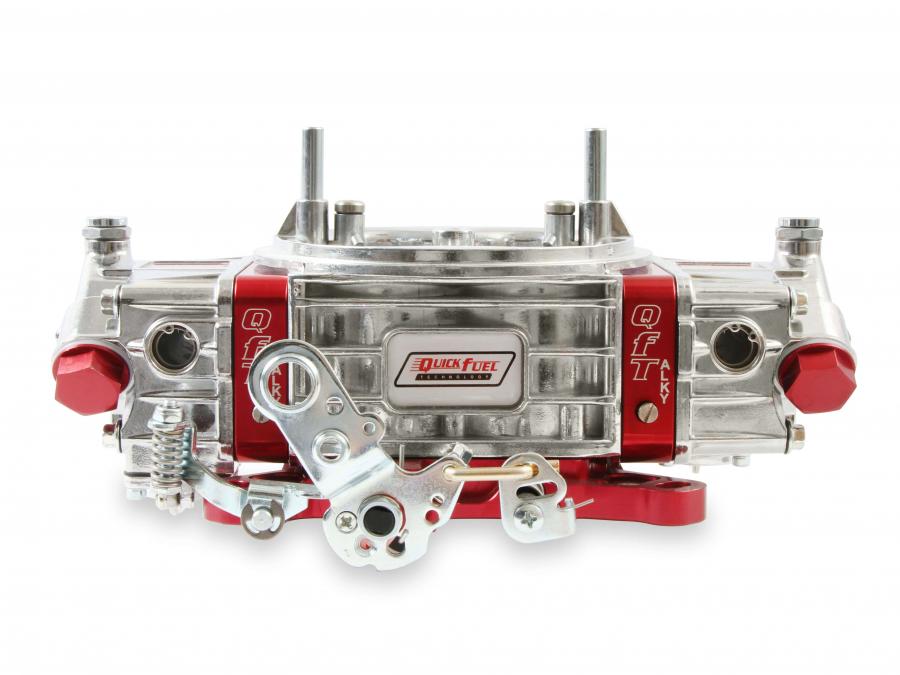

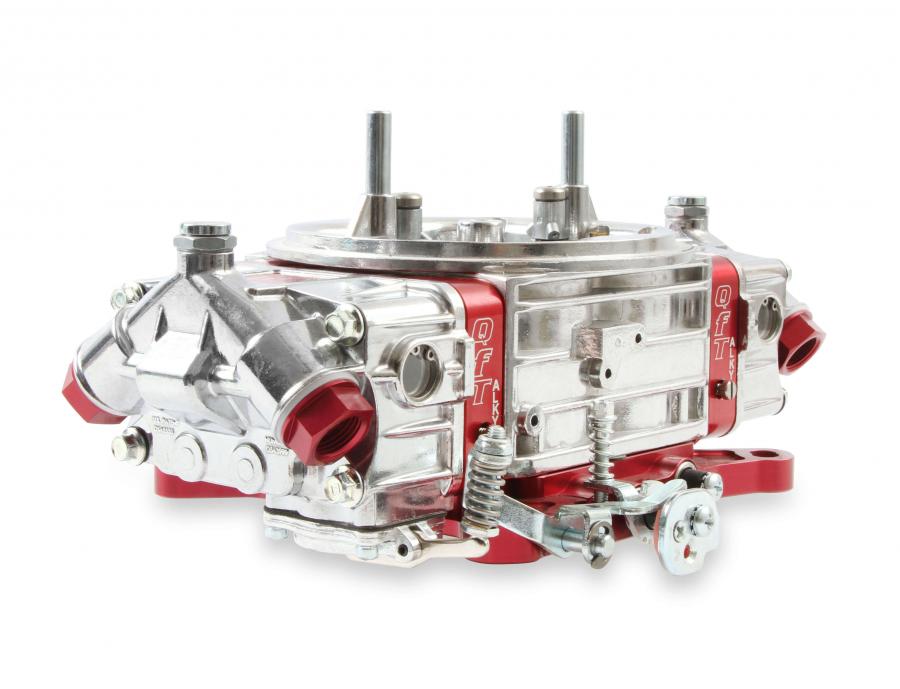

Quick Fuel Technology Q-Series Carburetor 850CFM Drag Race Alcohol Q-850-A

Ideally suited for bracket racers and weekend warriors alike, Q-Series carburetors are purpose-built for the dragstrip. To combat the g's experienced during hard launches, Q-Series carbs are equipped with notched floats and secondary jet extensions. The high-flow aluminum main body isn't just lightweight, but it also features recessed air bleed cavities for improved air flow. Die-cast venturi are machined to exacting tolerances for outstanding throttle response. Billet metering blocks ensure a uniform fuel curve, while throttle-bodies enhance durability. For those days when track conditions vary from one pass to the next, QFT's QuickLink system makes adjusting the secondaries easy on models equipped with mechanical secondaries. The Q-Series is our most comprehensive line of carburetors, with applications available for use with gasoline, methanol, and E85 fuels, forced induction, drag race, circle track, and comes in both vacuum and mechanical secondary models. •Lightweight aluminum main body •Vacuum and mechanical secondary models available •Aluminum fuel bowls with dual sight glass windows •Billet metering blocks with 4-corner idle system •Changeable idle feed and power valve channel restrictions •Billet aluminum throttle body provides exceptional precision and strength •PTFE coated and sealed shafts

The QFT alcohol and E-85 carburetors are transitioning to red billet metering blocks and throttle bodies. This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
