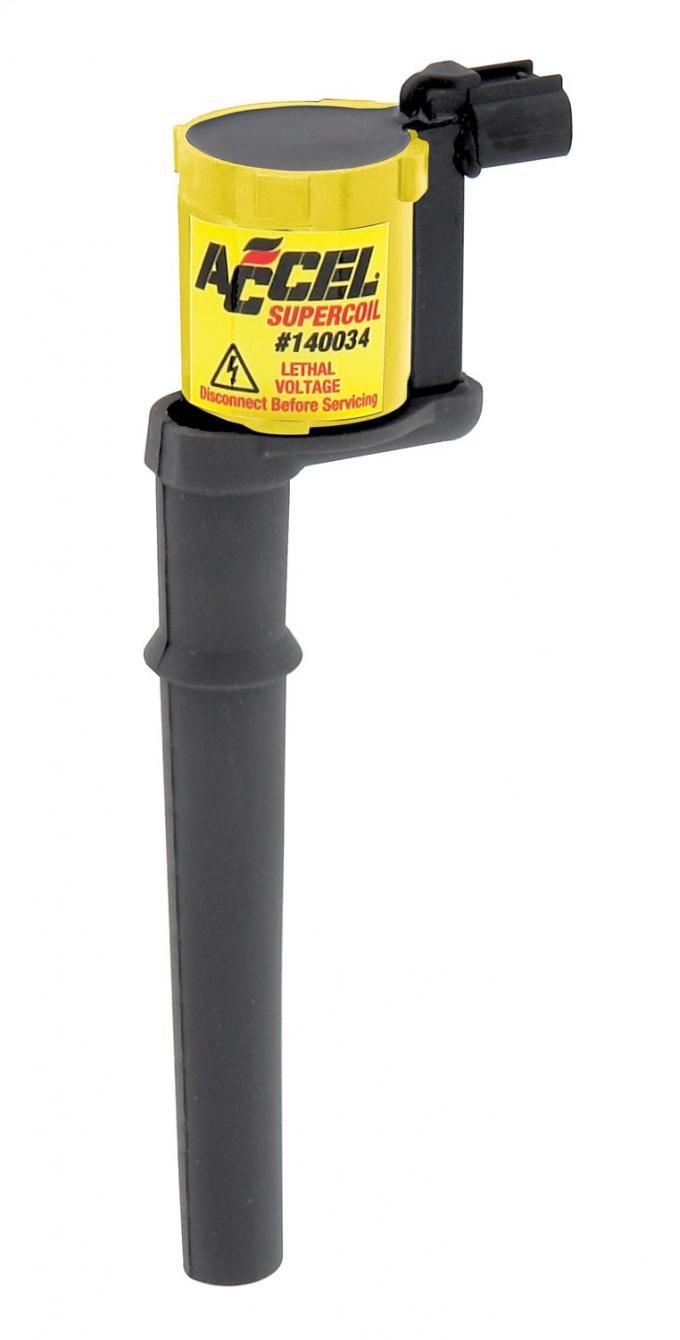

Accel Ignition Coil, SuperCoil, 1997-2011 Ford 4.6L/5.4L 4-Valve Modular Engines, Yellow, Individual 140034

Accel Ignition Coil, SuperCoil, 1997-2011 Ford 4.6L/5.4L 4-Valve Modular Engines, Yellow, Individual 140034
Accel Ignition Coil, SuperCoil, 1997-2011 Ford 4.6L/5.4L 4-Valve Modular Engines, Yellow, Individual 140034
$34.99 ea
NEWARRIVING SOONEstimated Ship Date 09/03/2025 (If Ordered Today)100 Available from HOLLEY PERFORMANCE PRODUCTS as of 08/17/2025
Model: 3988522
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
ACCEL Super Coils feature advanced bobbin technology, highly specialized silicon magnetic steel cores, optimized windings, proper resistance and engineered turn ratios that deliver a high performance, quality coil. Specialized high temperature epoxy resists shock and vibration, while increasing thermal conductivity. These are direct high performance replacements for OEM coils.
Features:
  • Specialized silicone magnetic steel cores are surrounded by precision wrapped windings using advanced bobbin technology which helps maintain the proper resistance and turn ratios necessary to deliver a improved performance spark.
  • Direct Plug In Replacement results in a Direct OE Fit
  • OBD ll Safe, so you won't be throwing codes, just sparks
  • Standard Motor Products SMP Uf-191
  • MSD 8244 82448
About Accel Performance Group

For more than 40 years, ACCEL has been a leader in performance fuel and ignition systems, proving itself on the racetracks and drag strips of the world – and on the street. With an ever-expanding line of SuperCoils and all the spark plug wires, tune-up kits, and fuel injectors hot rodders have trusted and relied on for years, ACCEL is constantly developing innovative new products designed to push power, speed, and performance to match advancements in automotive technology. Now part of Holley Performance, ACCEL offers a comprehensive selection of performance products, including coils, digital fuel injection systems, fuel injectors, distributors, caps, rotors, ignition wires, spark plugs.

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Ford GT 2005 5.4L / 330 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Ford GT 2006 5.4L / 330 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Ford Mustang 1997 4.6L / 281 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Ford Mustang 1998 4.6L / 281 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Ford Mustang 1999 4.6L / 281 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Ford Mustang 2000 5.4L / 330 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Ford Mustang 2001 4.6L / 281 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Ford Mustang 2003 4.6L / 281 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Ford Mustang 2004 4.6L / 281 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Ford Mustang 2007 4.6L / 281 / V8
5.4L / 330 / V8		 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Ford Mustang 2008 5.4L / 330 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Ford Mustang 2009 5.4L / 330 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Ford Mustang 2010 5.4L / 330 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Ford Mustang 2011 5.4L / 330 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Lincoln Blackwood 2002 5.4L / 330 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Lincoln Continental 1997 4.6L / 281 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Lincoln Continental 1998 4.6L / 281 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Lincoln Continental 1999 4.6L / 281 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Lincoln Continental 2000 4.6L / 281 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Lincoln Continental 2001 4.6L / 281 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Lincoln Continental 2002 4.6L / 281 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Lincoln Mark VIII 1997 4.6L / 281 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Lincoln Mark VIII 1998 4.6L / 281 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Lincoln Navigator 1999 5.4L / 330 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Lincoln Navigator 2000 5.4L / 330 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Lincoln Navigator 2001 5.4L / 330 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Lincoln Navigator 2002 5.4L / 330 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Lincoln Navigator 2003 5.4L / 330 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Lincoln Navigator 2004 5.4L / 330 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Mercury Marauder 2003 4.6L / 281 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;
Mercury Marauder 2004 4.6L / 281 / V8 SUPERCOIL; MODULAR; 4 VALVE DIRECT FIRE; PRIMARY RESISTANCE 0.62 OHMS; SECONDARY RESISTANCE 5.6K OHMS; TURN RATIO 66:1; MAX. VOLTAGE 25KV; EACH;

Specifications:

Application Ford
Color Yellow
Emission Code 2
Part Type Direct Ignition Coil
Product Type Ignition Coils
Proposition 65 www.P65Warnings.ca.gov
Quantity 1
Quantity Per Pkg. 1
Warranty Limited 90 Day Warranty TX, Limited 90 Day Warranty
Weight 0.5
