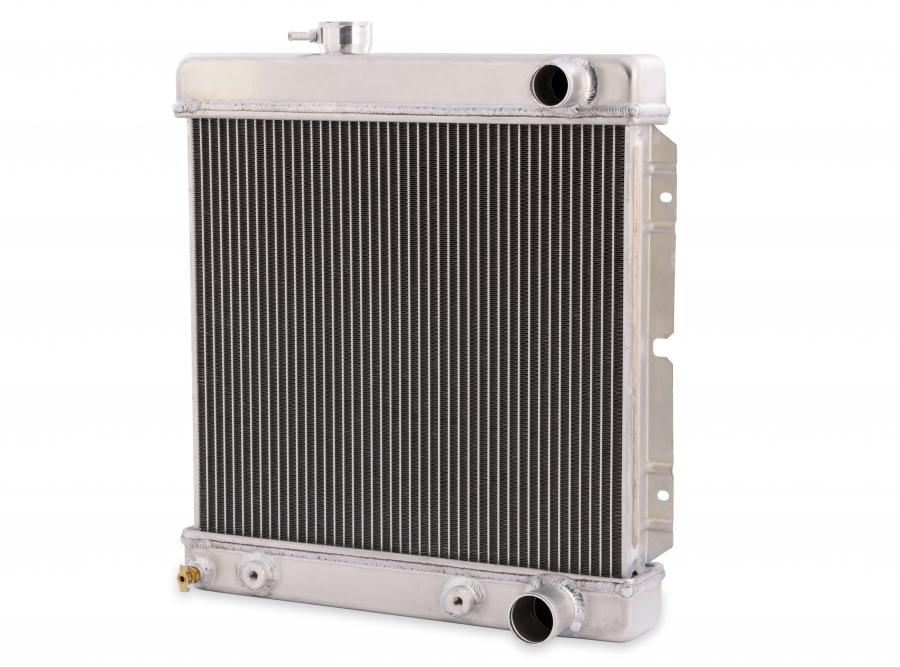

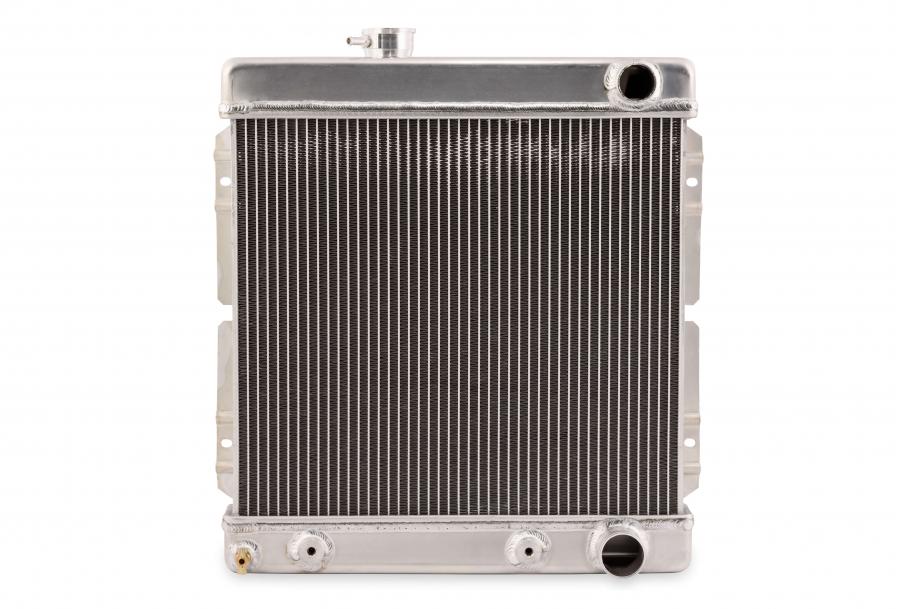

Features extra large 1? tubes for 4 row efficiency but with 5-7 lbs less weight. We also added Scott Drake exlusive baffle at the top to help evenly distribute the flow of hot water across the upper part of the radiator. The original radiators had a real problem distributing the hot water to the far right side of the radiator. We have tested our design and recorded significant changes in the temperatures across the radiator?s cooling tubes. A/T cooler included.
Scott Drake is the world's largest manufacturer and supplier of reproduction parts for classic Mustangs. Featuring thousands of quality products, Scott Drake is also one of the largest manufacturers of Ford-licensed parts. Scott Drake products are available through Mustang parts retailers, distributors, and restoration shops world-wide.
Make | Model | Years |
Ford | Mustang | 1964 - 1966 |
Core Thickness | 2 5/8 IN |

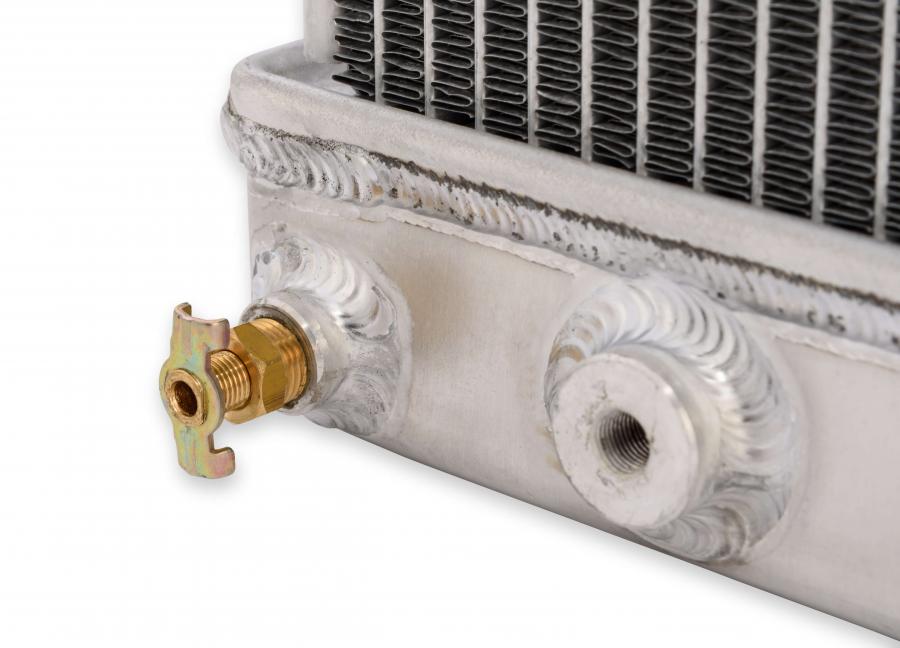

Drain Petcock Included | Yes |
Overall Thickness | 3 IN |
Inlet Diameter | 1 1/2 IN |
Tubing Spacing | 5/8 IN |
Core Row Quantity | 2 |
Tube Quantity | 41 |
Radiator Cap Included | No |
Overall Width | 17 3/8 IN |
Outlet Diameter | 1 3/4 IN |
Inlet Location | Top Right |
Core Width | 17 IN |
Core Height | 16 1/2 IN |
Overall Height | 21 1/2 IN |
Mounting Type | Bolt On |
Outlet Location | Bottom Right |
Fan Included | No |
Finish | Natural |
Part Type | Radiator |
Material | Aluminum |
Transmission Oil Cooler Included | Yes |
Engine Oil Cooler Included | No |
Down Flow Or Cross Flow Type | Down Flow |
