Detroit Speed Chassis Stiffening Kit 79-93 Mustang 79-86 Capri 010116

Detroit Speed Chassis Stiffening Kit 79-93 Mustang 79-86 Capri 010116
$1,868.99 kt
NEWARRIVING SOONEstimated Ship Date 04/22/2024 (If Ordered Today)2 Available from HOLLEY PERFORMANCE PRODUCTS as of 03/29/2024
Model: 4826418
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
OVERSIZE 1

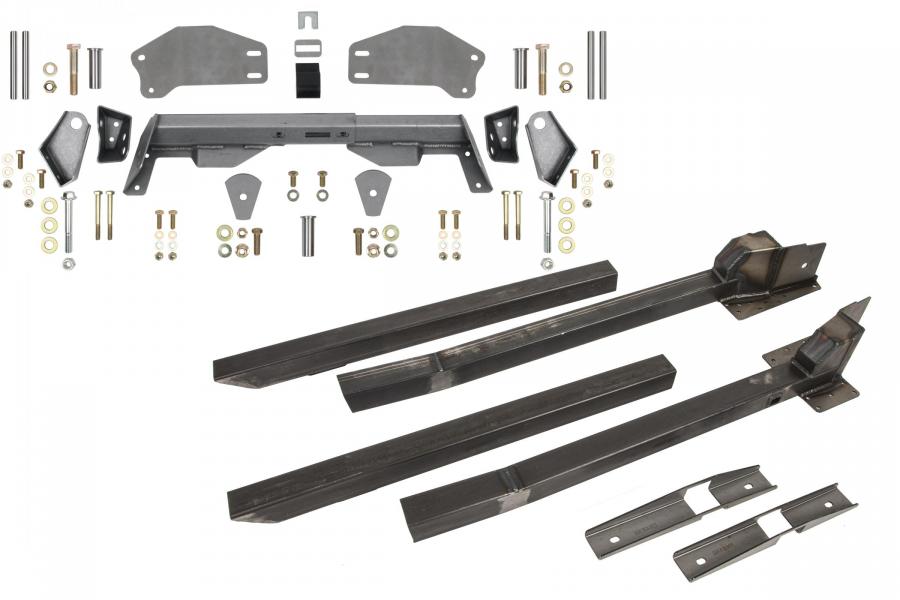

The Detroit Speed Fox Chassis Stiffening Kit is designed to give maximum stiffness to the notoriously flimsy Foxbody chassis. This kit combines our Subframe Connectors and Detroit Speed EXO Brace.

Subframe Connectors
The Detroit Speed Subframe Connectors are designed to give maximum torsional stiffness connecting the front and rear frame rails. The connectors do not hang lower than the rocker pinch flange so ground clearance is unaffected.

In addition to front seat mounting brackets that are stronger than factory, the connectors provide torque box and lower link reinforcement. The greatest value of this kit is that it fixes two common Fox Body issues with a single integrated solution.

Features and Benefits:

  • Fixes multiple Fox Body reinforcement issues with this single component, minimizing the need and costs to replace multiple individual components
  • Reinforces the lower link pocket and strengthens the rear torque box to stop common cracking
  • Strengthens seat mounts without interfering with stock mounting
  • Connects the rear torque box to the firewall creating one continuous frame rail
  • Fabricated from 2 x 2 x .083 steel tube and .090 plate for superior stiffness with minimal added weight
  • Compatible with stock suspension
  • Does not affect ground clearance

Detroit Speed EXO Brace
The Detroit Speed EXO Brace fixes a notorious failure point on the Fox Body platform. This is the point where the upper links mount to the chassis. The factory torque boxes weaken over time and are known to tear or even rip completely out of the vehicle.

Losing an upper link mount can result in unpredictable handling and is dangerous at any speed. Detroit Speed has developed an effective bolt-on (or weld-in) solution that improves the rigidity of the torque box, prevents damage to the chassis, and improves the safety of the vehicle.

It ties the link pockets into the frame and floor pan on both sides and connects the two boxes side-to-side with a telescoping feature. The Detroit Speed EXO Brace kit is a highly recommended addition to any Fox Body Mustang - especially those that are driven hard with higher horsepower.

Features and Benefits:

  • A Bolt on Kit with Weld in capability
  • Fixes weaknesses in the upper torque box with bolt on solution to prevent tearing in cars up to 400hp
  • Welding kit in supports torque boxes in cars 400+hp
  • Ties link pockets into the frame and floor pan on both sides of the frame rail, as well as connecting the two boxes side to side with a telescoping feature
  • Provides second adjustment hole for upper link to help correct instant center on lowered cars
  • Works with factory links in both hole positions

About Detroit Speed

Detroit Speed puts a significant amount of effort into developing long-lasting, dependable products that are formulated to exceed late-model performance expectations. Our systems are designed by exceptionally qualified engineers and built by fabricators dedicated to making the best systems they possibly can. Our parts are made using state-of-the-art manufacturing technologies–CNC machining, forging, hydroforming, and more–to bring your classic muscle car to the 21st century.

Months of testing, revising, and polishing stand behind every product we make available to the public, and our test cars prove the point. Each of our development mules receive thousands of hard miles attending car shows, completing road trips, crushing autocross paddocks, and storming track days in the process. The pursuit of perfection has always been our primary goal, and it always will be. Because of this, we can confidently say our systems are the best, most comprehensive solutions to any and all your muscle car problems.

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Ford Mustang Cobra 1981 5.0 Liter
Ford Mustang GLX 1982 - 1983 5.0 Liter
Ford Mustang GL 1982 - 1983 5.0 Liter
Ford Mustang GT-350 20th Anniversary 1984 5.0 Liter
Ford Mustang GT 1982 - 1993 5.0 Liter
Ford Mustang Ghia 1979 - 1981 5.0 Liter
Ford Mustang LX 1984 - 1993 5.0 Liter
Ford Mustang L 1982 - 1984 5.0 Liter
Ford Mustang SVO 1984 - 1986 5.0 Liter
Ford Mustang SVT Cobra R 1993 5.0 Liter
Ford Mustang SVT Cobra 1993 5.0 Liter
Ford Mustang Turbo GT 1983 5.0 Liter
Ford Mustang 1979 - 1981 5.0 Liter
Mercury Capri 5.0 1986 5.0 Liter
Mercury Capri Black Magic 1982 - 1983 5.0 Liter
Mercury Capri Crimson Cat 1983 5.0 Liter
Mercury Capri GS 1981 - 1986 5.0 Liter
Mercury Capri Ghia 1979 - 1980 5.0 Liter
Mercury Capri L 1982 - 1983 5.0 Liter
Mercury Capri RS Turbo 1984 5.0 Liter
Mercury Capri RS 1982 - 1985 5.0 Liter
Mercury Capri 1979 - 1983 5.0 Liter

Specifications:

Chassis Codes Ford Mustang 1979-1993, Mercury Capri 1979-1986
Engine Ford 5.0 Liter
Liter 5.0 Liter
Location Rear
Material Steel
Series Mustang
Vehicle Type Car
