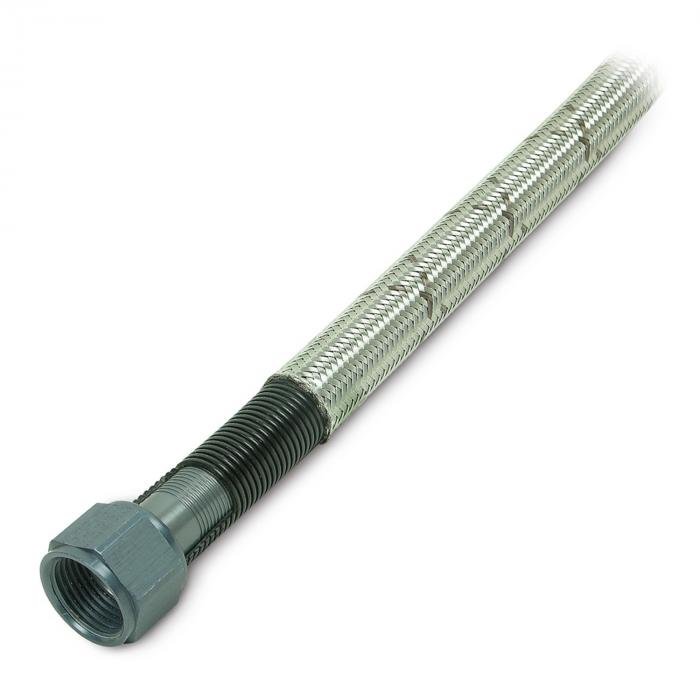

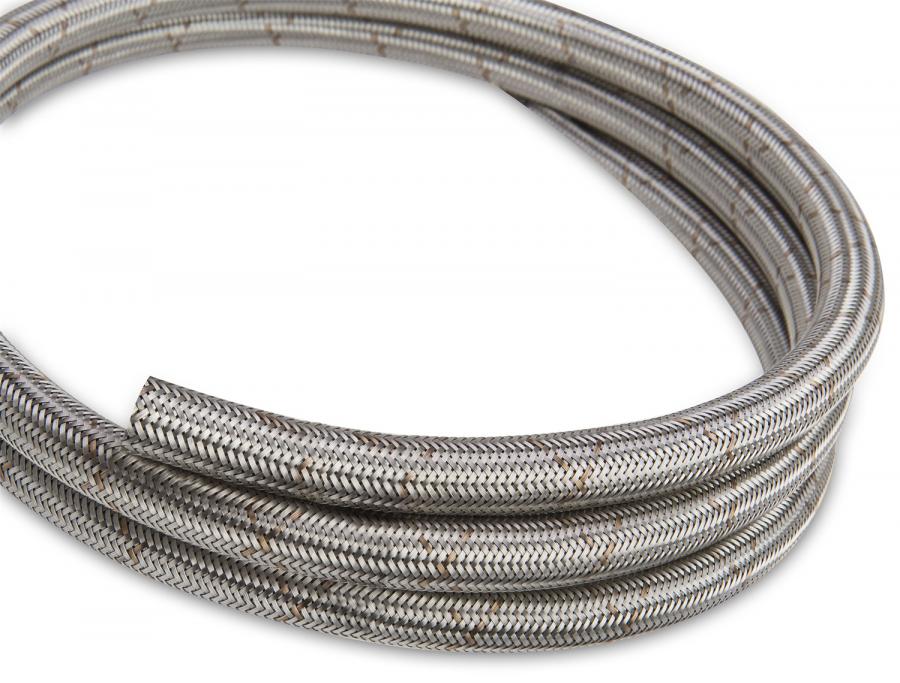

Earl's Ultra Flex Hose Size -8 Stainless Steel Braid, Bulk Hose Sold by the Foot in Continuous Length Up to 25' 660008ERL

Earl's Ultra Flex Hose Size -8 Stainless Steel Braid, Bulk Hose Sold by the Foot in Continuous Length Up to 25' 660008ERL
Earl's Ultra Flex Hose Size -8 Stainless Steel Braid, Bulk Hose Sold by the Foot in Continuous Length Up to 25' 660008ERL
$64.99 ea
NEWOUT OF STOCK
Model: 4001542
STANDARD
DELIVERY
STORE PICKUP
[More Info]
We have taken the same inner tubing of our Kevlar® hose, and covered it with a high tensile grade 304 stainless steel. You still get all of the same flow rate and flexibility advantages of the Kevlar® hose but with additional protection. The carbon lined inner tubing (for static dissipation) is smooth bore with large ID for maximum flow and convoluted exterior support for incredible flexibility. Ultra-Flex stainless is 40% lighter and has an average of 14% larger ID than our premium stainless braided rubber hose. Being PTFE it has a large range of applications: Fuel, Oil, Water, Methanol, and Air as well as a very high vacuum rating - 29Hg. The new stainless hose also accepts all of the same hose ends and crimp collars made for the Kevlar® Ultra-Flex line. This means that the same crimper and dies used for the Kevlar® hose can be used with the new stainless, so your Earl's universals crimper and dies are all you need for all of your high end line assemblies. (All trademarks are property of their respective owners.)
Features:
  • Covered in aircraft quality 304 grade stainless steel wire
  • High-Temp. Smooth bore PTFE tubing
  • Convoluted outer wall of inner tube for incredible flexibility
  • Remains Flexible at Temperatures Between -94°F and +510°F
  • Bend radius of 1.496"
  • Clean and Fast Flowing
  • Sold per foot
Bulk hose takes about 3-4 days for processing. Each bulk order must be created, scheduled at the production facility, cut to length, packaged, shipped to the warehouse, and received by the warehouse (before it can be shipped to the customer). Pre-cut boxed hose (i.e. 3 to 33 foot lengths) ship directly from the warehouse.
Installation Notes:
Bulk hose takes about 3-4 days for processing. Each bulk order must be created, scheduled at the production facility, cut to length, packaged, shipped to the warehouse, and received by the warehouse (before it can be shipped to the customer). Pre-cut boxed hose (i.e. 3 to 33 foot lengths) ship directly from the warehouse.

Downloads:

Download Name File Size
earls_guide.pdf479.44KB

Videos:

Specifications:

Compatible Hose Ends Ultra-Flex
Crimping Die 19MM - D10019BERL
Emission Code 5
Final Crimp O.D. Range .795"-.815"
Final Crimp O.D. Range .795"-.815"
Fluid Type Pump Gas, Diesel, Automatic Transmission Fluid, Coolant, Oil, Race Gas, Bio-Fuels, E85, Methanol/Alcohol
Fluid Type Rating - Automatic Transmission Fluid 5 out of 5 Rating
Fluid Type Rating - Bio-Fuels 5 out of 5 Rating
Fluid Type Rating - Coolant 5 out of 5 Rating
Fluid Type Rating - Diesel 5 out of 5 Rating
Fluid Type Rating - E85 5 out of 5 Rating
Fluid Type Rating - Methanol/Alcohol 5 out of 5 Rating
Fluid Type Rating - Oil 5 out of 5 Rating
Fluid Type Rating - Pump Gas 5 out of 5 Rating
Fluid Type Rating - Race Gas 5 out of 5 Rating
Fluid Type Rating - Vacuum 5 out of 5 Rating
Hose Family Ultra-Flex
Hose Length Bulk
Hose Outer Material Stainless Steel
Hose Size 8 AN
Inside Diameter .536"
Max Vacuum 29 in Hg
Max Working PSI 1030 PSI
Maximum Continuous Length 25 Feet
Min. Bend Radius 1.496"
Outside Diameter .650"
Part Type Fuel Hose
Product Type Hose
Proposition 65 www.P65Warnings.ca.gov
Submersible in Fuel Yes
