Modern fuels are at war with your fuel system. Modern fuels (more than 40 EPA-approved fuel blends in the US alone) include additives that break down traditional rubber hose. This breakdown leads to potentially dangerous leaks & weeping as well as vapors that waste fuel and leave unwanted odors in your shop.
EARL'S,
EARL'S,Once fuel lines are degraded, hose particles can contaminate and obstruct fuel injectors and carburetor passages. Earl's Vapor Guard hose and hose ends provide a complete, economical solution that virtually eliminates these fuel permeation issues common with most rubber fuel lines.
EARL'S,

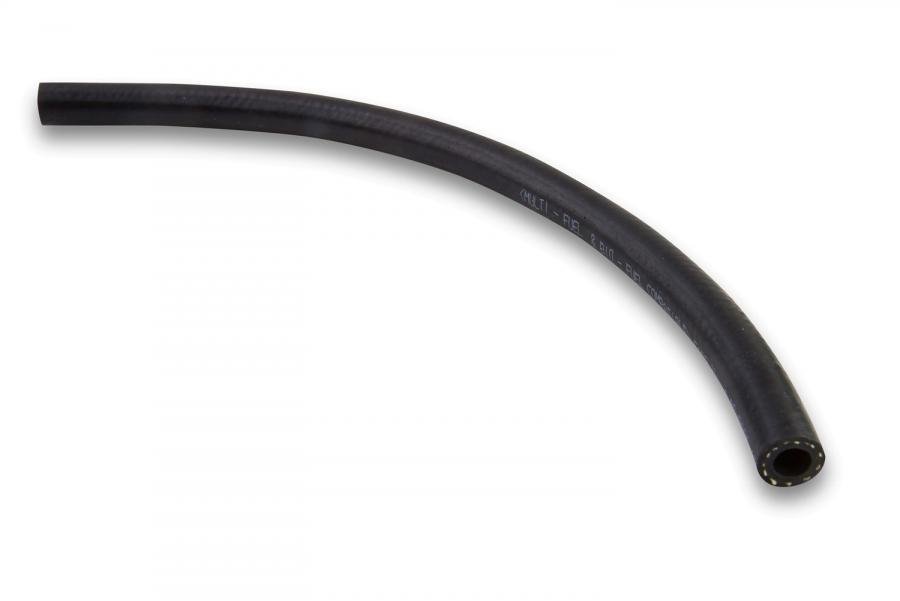

EARL'S,The secret to Earl's Vapor Guard hose is in its layers. The innermost Primary Barrier Layer offers high resistance to heat and aggressive fuels. The middle Earl's Vapor Guard™ Barrier is a Thermoplastic layer that provides superior fuel isolation and virtually eliminates vapors from escaping through the hose. The Exterior Cover Barrier provides extreme tolerance to heat and ozone giving Earl's Vapor Guard a three way shield against hose deterioration.
Features:
- Multi-layer rubber hose designed to withstand to the corrosive properties of modern fuels
- Multi-fuel compatible: Approved for use with leaded and unleaded Gasoline, Diesel, Biodiesel, E-85, 100% Methanol, ETHANOL and Gasohol fuels
- A two foot section of Earl’s Vapor Guard saves one gallon of gas each year as compared to traditional rubber hose from permeation alone
- Primary Barrier Liner – initial layer offers high resistance to heat and aggressive fuels
- Vapor Guard Barrier – Thermoplastic layer provides superior fuel isolation significantly reducing vapors from escaping through the hose
- Reinforcement braid-aramid material – (EFI hose only) is used to provide the higher pressure rating that is required with fuel injection
- Exterior cover – provides extreme tolerance of heat and ozone
- Choose from carburetor or higher pressure EFI hose
- Hose available in 5/16” and 3/8” sizes
- Not for use in applications where the hose is submersed in fuel
- Carburetion Hose – Rated Maximum 50 PSI (not for use with fuel injection systems)
Vapor Guard hose must be used with Vapor Guard hose ends and clamps (other hose barb style fittings or hose ends may damage the inner liner on the hose)
EARL'S,
EARL'S,*Quantity ordered of bulk hose (one foot) determines quantity. (Example: Quantity 24 = 24 foot of hose)
EARL'S,
EARL'S,Vapor Guard is not Recommended for Vacuum applications.
EARL'S,
EARL'S,Bulk hose takes about 3-4 days for processing. Each bulk order must be created, scheduled at the production facility, cut to length, packaged, shipped to the warehouse, and received by the warehouse (before it can be shipped to the customer). Pre-cut boxed hose (i.e. 3 to 33 foot lengths) ship directly from the warehouse.
Installation Notes:
Vapor Guard hose must be used with Vapor Guard hose ends and clamps (other hose barb style fittings or hose ends may damage the inner liner on the hose)
*Quantity ordered of bulk hose (one foot) determines quantity. (Example: Quantity 24 = 24 foot of hose)
Vapor Guard is not Recommended for Vacuum applications.
Bulk hose takes about 3-4 days for processing. Each bulk order must be created, scheduled at the production facility, cut to length, packaged, shipped to the warehouse, and received by the warehouse (before it can be shipped to the customer). Pre-cut boxed hose (i.e. 3 to 33 foot lengths) ship directly from the warehouse.
