Earl's Vapor Guard™ Fuel Filter 730166ERL

Earl's Vapor Guard™ Fuel Filter 730166ERL
Earl's Vapor Guard™ Fuel Filter 730166ERLEarl's Vapor Guard™ Fuel Filter 730166ERL
$27.99 ea
NEWARRIVING SOONEstimated Ship Date 07/04/2024 (If Ordered Today)100 Available from HOLLEY PERFORMANCE PRODUCTS as of 06/15/2024
Model: 4001954

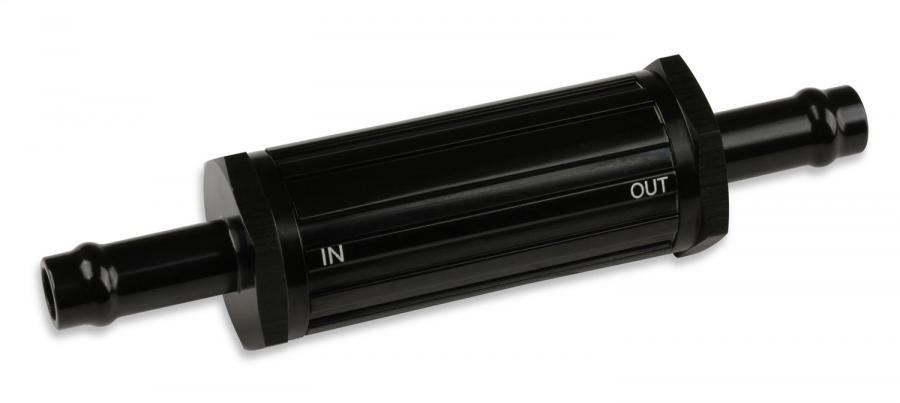

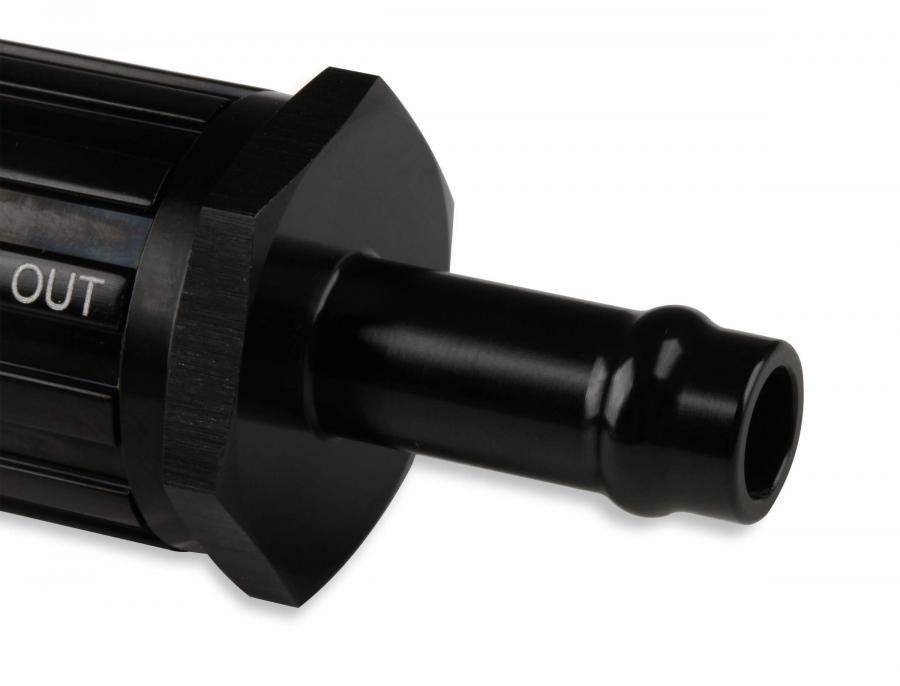

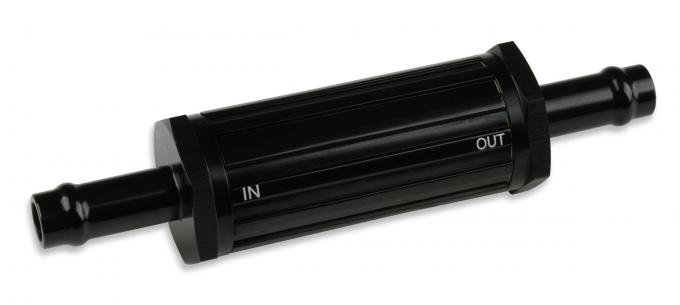

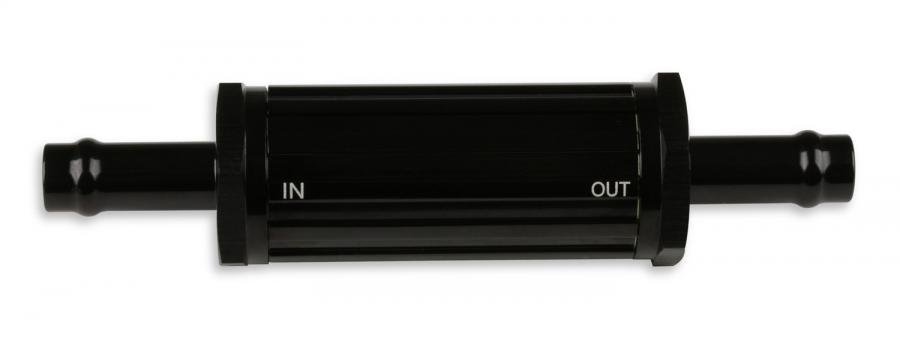

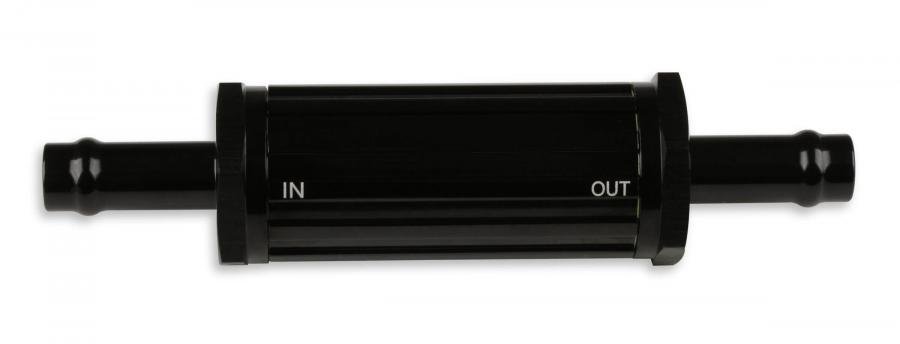

Billet aluminum fuel filter for carburetor (30 micron) applications. Use w/ 3/8" Vapor Guard Fuel Hose & Clamps.
  • Vapor Guard Fuel Filter for Carburetor Applications
  • Billet Aluminum w/ Black Anodized Finish
  • Replaceable / Washable Bronze Filter Element
  • Filter Flows 125 GPH at 2.5 PSI (Free Flow) & 88 GPH at 61.4 PSI



Adjustable Yes
Assembly Method Barb & Band Clamp
Body Diameter 1.0"
Color Black
Compatible Hose Vapor Guard
Diameter 1.00 inch
Element Material Sintered Bronze
Emission Code 5
Filter Type Post Filter
Finish Anodized Black
Fitting to Hose Mate Type Barb & Band Clamp
Fuel System Type Carburetor
Fuel Type Gasoline / Diesel
GPH 88
Hose Barb 3/8"
Hose Barb (A) 3/8 Inch
Hose End Family Vapor Guard
Hose End Series 75/78
Hose Size 3/8
Inlet / Outlet Size 3/8" Hose Barb
Inlet Size 3/8" Barb
Installed Length 2.560"
Material 6061 Aluminum
Max PSI 100
Micron 30 Micron
Outlet Size 3/8" Barb
Overall Length 4.500"
Part Type Fuel Filter
Product Line Budget
Product Type Fuel Filter
Proposition 65 www.P65Warnings.ca.gov
Reusable Yes
Swivel No
Warranty Limited 90 Day
