| Adjustable | Yes |
| Assembly Method | Barb & Band Clamp |
| Body Diameter | 1.0" |
| Color | Black |
| Compatible Hose | Vapor Guard |
| Diameter | 1.00 inch |

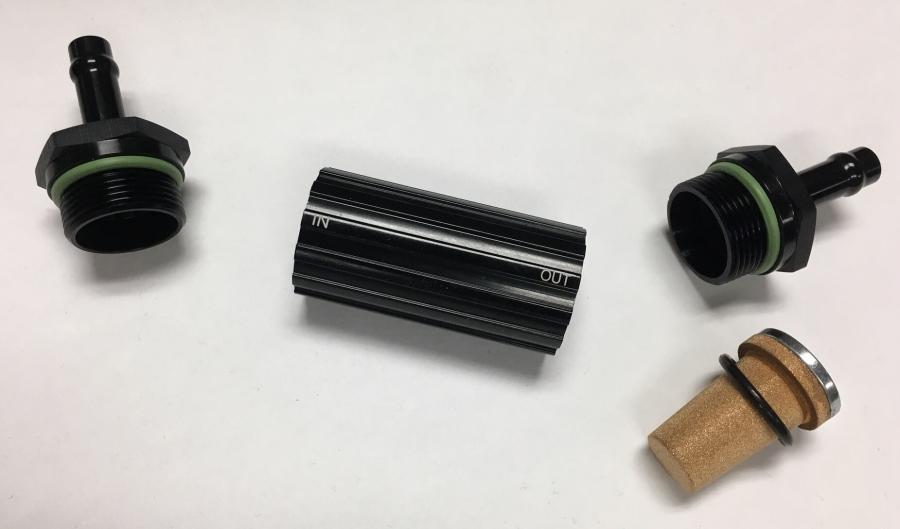

| Element Material | Sintered Bronze |
| Emission Code | 5 |
| Filter Type | Pre Filter |
| Finish | Anodized Black |
| Fitting to Hose Mate Type | Barb & Band Clamp |
| Fuel System Type | EFI, Carburetor |
| Fuel Type | Gasoline / Diesel |
| GPH | 88 |
| Hose Barb | 3/8" |
| Hose End Family | Vapor Guard |
| Hose End Series | 75/78 |
| Hose Size | 3/8 |
| Inlet / Outlet Size | 3/8" Hose Barb |
| Inlet Size | 3/8" Barb |
| Installed Length | 2.560" |
| Material | 6061 Aluminum |
| Max PSI | 100 |
| Micron | 100 Micron |
| Outlet Size | 3/8" Barb |
| Overall Length | 4.500" |
| Part Type | Fuel Filter |
| Product Line | Budget |
| Product Type | Fuel Filter |
| Proposition 65 | www.P65Warnings.ca.gov |
| Reusable | Yes |
| Swivel | No |
| Warranty | Limited 90 Day |
