STANDARD
Manufacturer of performance exhaust systems, mufflers, performance air intakes, turbo boost modules, catalytic converters, race mufflers, headers and numerous exhaust accessories for late model cars, trucks, off-road, Jeeps, SUV’s, classic muscle cars, powersports vehicles and more. Flowmaster® gives you lots of exhaust choices with 12 designs of chambered mufflers, 3 styles of our exclusive “laminar-flow” mufflers and a new line of FlowFX “straight-through” performance mufflers, along with 5 sound categories of exhaust systems, giving you the customer, the power to custom tailor the sound of your vehicle whether you prefer mild, moderate or aggressive tones and sound levels. Since 1983, Flowmaster is the company you can trust, and has led the industry in offering only the best products you can buy for your vehicles.
| Download Name | File Size |
| FM_Warranty_EPA_Converter.pdf | 218.36KB |
| fm_warranty_epa_converter.pdf | 218.36KB |
| Air Tube Adaptable | No |

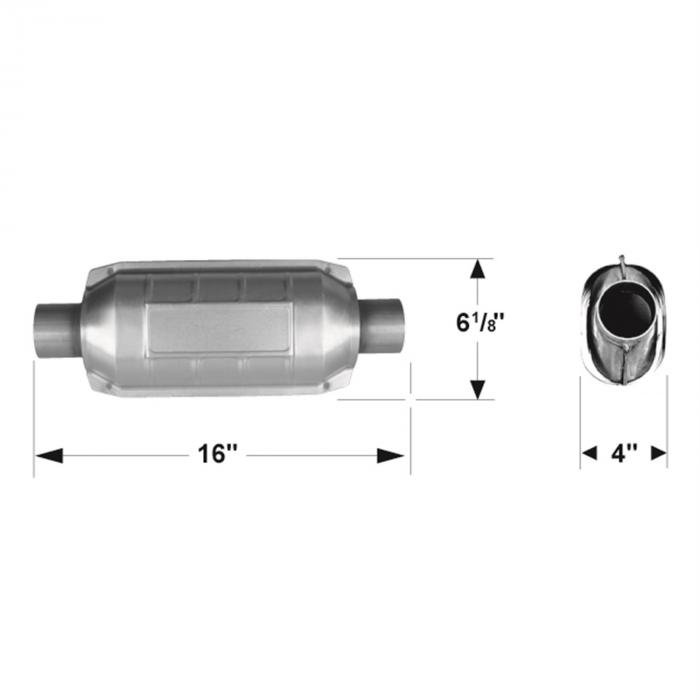

| Assembled Length | 16.000 in. |
| Assembled Width | 6.125 in. |
| Assembly Length (in) | 16 |
| Assembly Width (in) | 6.125 |
| Body Length | 12.000 in. |
| Body Length (in) | 12 |
| Body Shape | Oval |
| Body Width | 6.125 in. |
| Body Width (in) | 6.125 |
| California Proposition 65 Required | No |
| CARB (California) Compliant | No |
| CARB EO# | N/A |
| Catalytic Converter Air Tube Adapter | Not Air Tube Kit Adaptable |
| Core Substrate Material | Ceramic |
| Emission Code | 2 |
| Fitment | Universal |
| Format | Main Catalytic Converter |
| Gross Vehicle Weight | 6515 lbs. |
| Heat Shield | Yes |
| Heat Shield Included | Yes |
| Inlet Connection Type | Clamp-On |
| Inlet Diameter | 2.000 in. |
| Inlet Diameter (in) | 2 |
| Inlet Inside Diameter | 2.000 in. |
| Inlet Quantity | 1 |
| Material | Stainless Steel |
| Max Engine Size | 5.9L |
| Max Gross Vehicle Weight (lb) | 6515 |
| Maximum Engine Size | 5.9L |
| Mount Type | Uses New Hangers (Not Included) |
| Outlet Connection Type | Clamp-On |
| Outlet Diameter | 2.000 in. |
| Outlet Diameter (in) | 2 |
| Outlet Outside Diameter | 2.000 in. |
| Outlet Quantity | 1 |
| Overall Length | 16.000 in. |
| Oxygen Sensor Location | No Port Location |
| Part Type | Catalytic Converter |
| Style | 3-Way |
| Substrate Material | Ceramic |
| Warranty | 25000 MI Emissions/50000 MI Structural Warranty TX |
| Warranty Time | 12 Months |
