Hays Street/Strip Clutch Kit 85-103

Name: Hays Street/Strip Clutch Kit 85-103
Brand: Hays
SKU: 4006923
Price: 764.99 CAD
Availability: InStock

$764.99 ea

NEWARRIVING SOONEstimated Ship Date 10/16/2023 (If Ordered Today)10 available from HOLLEY PERFORMANCE PRODUCTS as of 09/23/2023

Model: 4006923

0 reviewsWrite a Review Add to Wish List

Supplier has not provided any fitment data for this product.

CALL US
877.352.5355

Description Downloads Specifications Reviews (0) Product Q&A Related Products

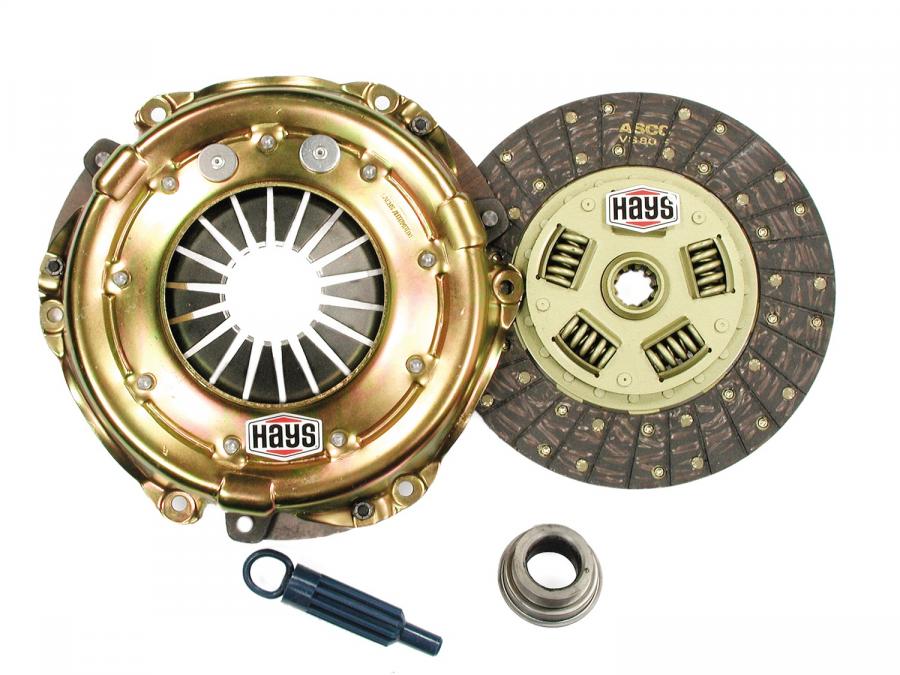

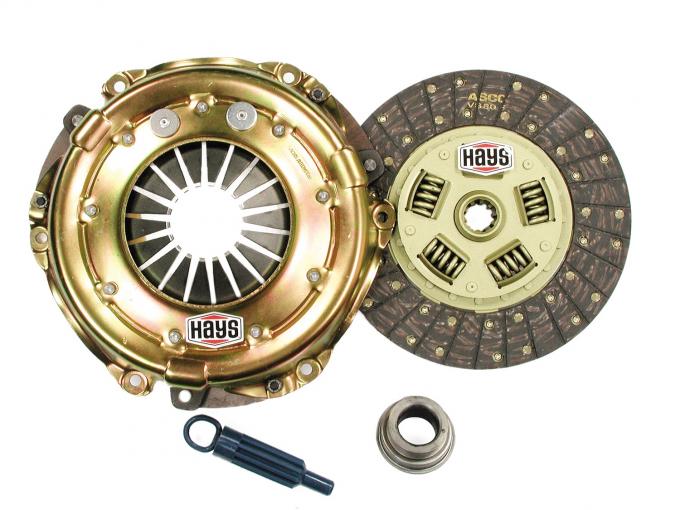

Hays street/strip clutch kits are great replacements for original equipment units. Engineered and built as a matched assembly, each kit will provide exceptional performance, durability and long term dependability. This clutch features a heavy duty cover to minimize flex and ensure strength and stability. The kit fits Buick, Chevy and Pontiac applications with 10.5 in clutch and 1-1/8 in 10 spline input shaft. The pressure plate is a diaphragm style with light pedal pressure and a quick clean release for precise gear changes with positive engagement to handle high horsepower. The clutch disk is organic sprung hub. Comes complete with the throw out bearing and alignment tool. Other applications and styles available.

Features:

Great For Street or Strip
Exceptional Performance And Durability
Organic Disc Material
Spring Hub Disc Style
1 1/8 in. Input Shaft Diameter
600 Max Horsepower Rating
573 ft.-lbs. Max Torque Rating
Diaphragm Pressure Plate Style
Limited 90 Day Warranty

Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations

About Hays

Drag racing's biggest stars have relied on Hays clutches since SEMA Hall of Famer Bill Hays decided back in 1958 that there had to be a way to build one that could stand up to racing's unimaginable power and torque. Now part of Holley Performance, Hays continues to develop complete clutch kits for an infinite number of high-performance applications, pressure plates for precise gear changes, clutch discs for smooth, chatter-free engagement, and flywheels and flexplates ideal for today's vehicles.

Downloads:

Download Name	File Size
InstallationTroubleshootingClutchesFlywhe.pdf	136.42KB
hays_instructions_installation_troubleshooting_clutches_flywheels.pdf	276.41KB

Specifications:

Alignment Tool Included	Yes
Application	GM
Disc Diameter	10.500 in.
Disc Material	Organic
Disc Style	Spring Hub
Disc Type	Spring Hub
Emission Code	5
Input Shaft Diameter	1.125 in.
Input Shaft Spline Quantity	10
Input Spline	10
Material	Steel
Max Horsepower Rating	600
Max Torque Rating (ft.-lbs.)	573
Maximum Horsepower	600
Part Type	Clutch Kit
Pressure Plate Style	Diaphragm
Pressure Plate Type	Diaphram
Throwout Bearing Included	Yes
Torque Capacity	573 ft/lbs.
Warranty	Limited 90 Day Warranty TX
