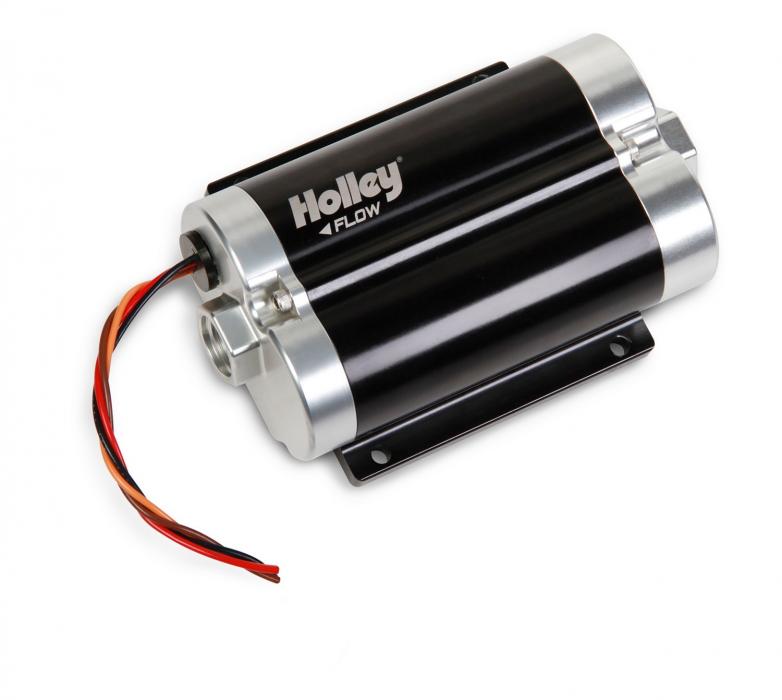

Holley Dominator In-Line Billet Fuel Pump 12-1800

Holley Dominator In-Line Billet Fuel Pump 12-1800
Holley Dominator In-Line Billet Fuel Pump 12-1800
$697.99 ea
NEWBackordered until 08/11/2021Out of stock at HOLLEY PERFORMANCE PRODUCTS as of 08/05/2021
Model: 3991193
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Need to feed some serious horsepower? Have a nitrous or forced induction power plant that also sees street duty? Holley's new Dominator in–line fuel pumps are the answer! The patent pending twin pump design allows you to use one pump for cruising and both pumps when you activate the nitrous switch or start building boost! By staging the second pump, you eliminate the unnecessary recirculating and heating of extra fuel which can lead to poor performance and hot fuel issues. As an added benefit for the hard core enthusiasts that run events like Hot Rod Power Tour and the Baja 1000, the extra pump offers the peace of mind that you will always finish what you start! For hard core race vehicles, both pumps can be wired for full time duty to get maximum performance and are proven with 18.5 volt compatibility at pressures up to 80 psi. At only 5.1 lbs, they weigh half a pound less than competitive 1000 horsepower pumps yet have twice the features!
Features:
  • Billet Aluminum Construction For Durability and Good Looks
  • 10AN O-Ring Inlet/Outlet For High Flow and Superior Sealing
  • Excellent For Use With Carbureted Or EFI Applications
  • Fully Submersible In Tank
  • Compatible With 12V To 18.5V Systems For Street Or Race Use
  • Compact For Easy Installation On Frame Rails Or Other Tight Areas
  • Twin Pump Design Allows The Use Of Both Pumps
  • Patent Pending Dual Pump Technology
  • Proven Durability Beyond 3000 Hours In Gasoline Or Diesel Fuels
  • Weighs Only 5.1 lbs..
  • Current Draw At 43 PSI and 13.5 Vdc Is 17.2 Amps
Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations
Installation Notes:
*Pump gas compatible for intermittent or under 90 degree ambient temperature use Pump gas use recommendations: • This pump is compatible with pump gas, but is not recommended for street driven vehicles where the ambient temperature is regularly above 90 degrees • For street driven vehicles in high temps with pump gas, Holley recommends part numbers 12-1200 or 12-1600 for optimum hot fuel handling• Proper fuel system engineering is critical for maximum performance. Please see Holley Fuel System Chart for information about proper installation of your fuel system.• To reduce fuel temperatures and vapor lock issues, it is recommended to operate these pumps using one pump for daily driving and low power levels and bring the second pump in with a pressure switch or other device when fuel flow needs increase. This will reduce heating of the fuel load by eliminating excess fuel circulating to the front of the vehicle, thru the fuel rails and back the tank. Will work with E-85! These pumps do not have an internal bypass. A bypass style regulator and return line are required.This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example: Part # AT981510ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as :Part # AT985010ERL.

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
Warranty_Policy.pdf14.65KB
199r10573-1rev.pdf946.43KB
holleyfuelsystems_chart1.pdf360.32KB
12-1800.pdf313.18KB

Videos:

Specifications:

Application Universal
Body Color Black Anodized
Emission Code 5
Forced Induction HP@43PSI 1400
Forced Induction HP@60PSI 1200
Forced Induction HP@8PSI 1600
Free Flow GPH 200
Fuel System Carbureted
Fuel System Type Carbureted, EFI
Fuel Type Gasoline, E85, Diesel
GPH@43PSI 156
GPH@60PSI 140
GPH@8PSI 200
Housing Color Black Anodized
Inlet Size 10 AN O-Ring - 7/8-14 SAE
LPH@43PSI 530
LPH@60PSI 590
LPH@8PSI 720
Material Aluminum
Naturally Aspirated HP@43PSI 1800
Naturally Aspirated HP@60PSI 1600
Naturally Aspirated HP@8PSI 2100
Outlet Size 10AN O-Ring - 0.875 in. - 14 SAE
Part Type Electric Fuel Pump
Pump Body Color Black Anodized
