Holley EFI 8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top 300-306

Holley EFI 8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top 300-306
Holley EFI 8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top 300-306Holley EFI 8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top 300-306Holley EFI 8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top 300-306Holley EFI 8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top 300-306Holley EFI 8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top 300-306Holley EFI 8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top 300-306Holley EFI 8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top 300-306Holley EFI 8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top 300-306Holley EFI 8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top 300-306Holley EFI 8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top 300-306Holley EFI 8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top 300-306Holley EFI 8.2" SBF Ford Hi-Ram EFI Manifold with Side Mount Top 300-306
$1,441.99 ea
NEWOUT OF STOCK
Model: 4008223
OVERSIZE 1
The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 95MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! HOLLEY EFI, HOLLEY EFI,Manifold is designed for a 8.2" deck height. HOLLEY EFI, HOLLEY EFI,• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations HOLLEY EFI, HOLLEY EFI,• EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. HOLLEY EFI, HOLLEY EFI,• Cast aluminum construction. HOLLEY EFI, HOLLEY EFI,*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.
Features:
  • EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Manifold is designed for a 8.2" SBF deck height.
  • The 8.2 SBF manifold is available to work with 95MM throttle bodies
  • Ford 5.0 throttle body fitment
  • Lid has been verified to fit under Cervinis 2.5” cowl hood on 1979-1993 Mustangs with 351W & 302W Hi-Ram bases when using motor mounts that retain stock engine locations.
  • Designed for side mounted throttle bodies
  • Allows room for designing boosted applications

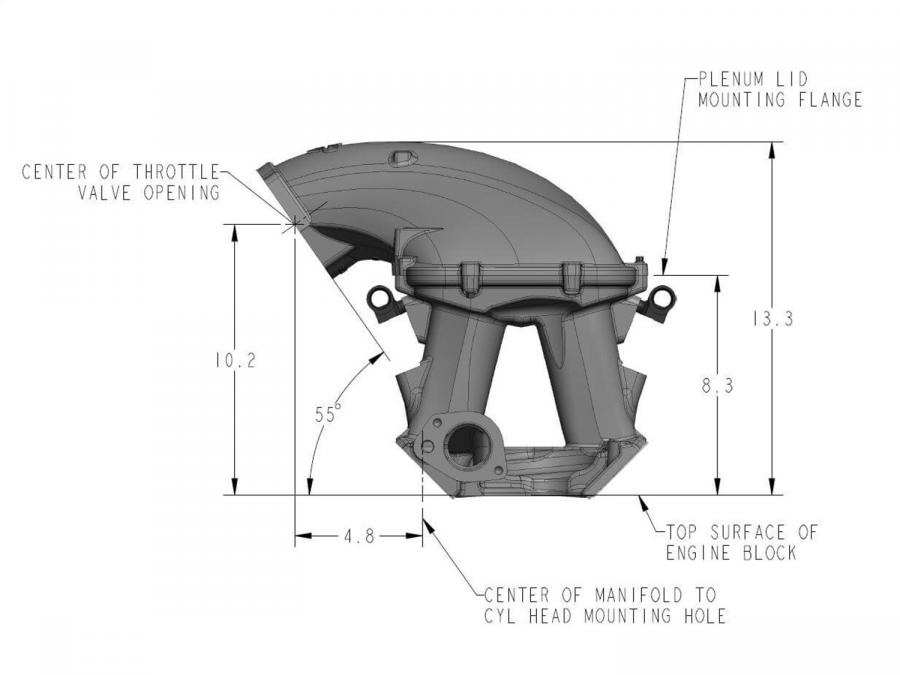

*** Please see the diagrams in the product images for other dimensions. HOLLEY EFI,*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. HOLLEY EFI,Warning: HOLLEY EFI,Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core.
Installation Notes:
*** Please see the diagrams in the product images for other dimensions. *** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. Warning: Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core.
About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Videos:

Specifications:

Construction Cast
Emission Code 3
Engine Ford Small Block V8
Finish Satin
Flange Style EFI
Fuel System Type EFI
Manifold Type Hi-Ram
Part Type Engine Intake Manifold
Port Size 2.00" x 1.190"
Product Type Intake Manifold
RPM Power Band 1500-7000
Throttle Bore 95mm
Warranty Limited 90 Day
