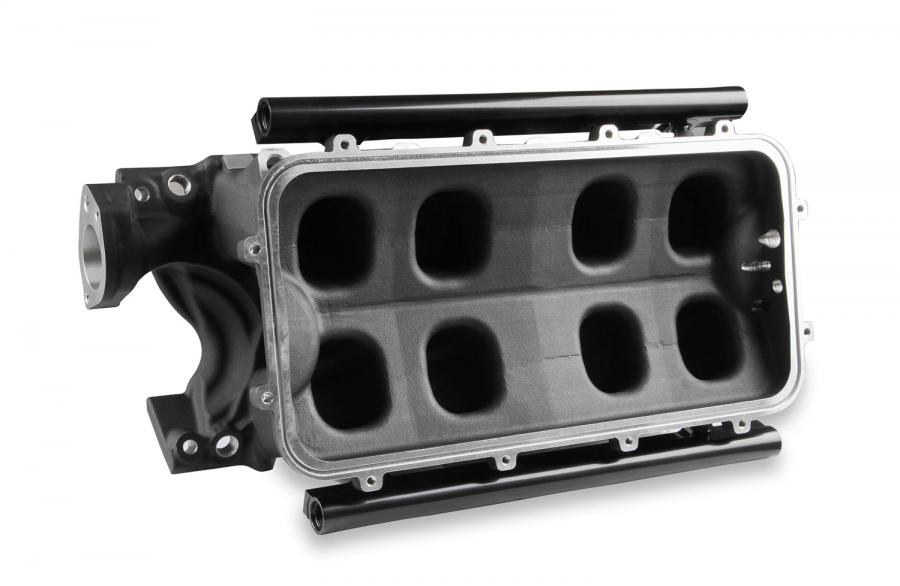

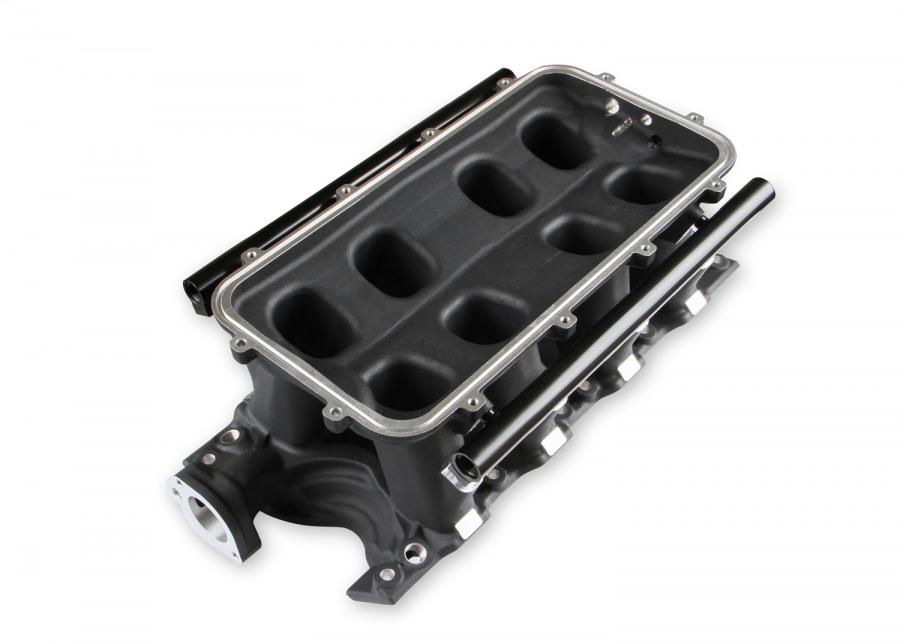

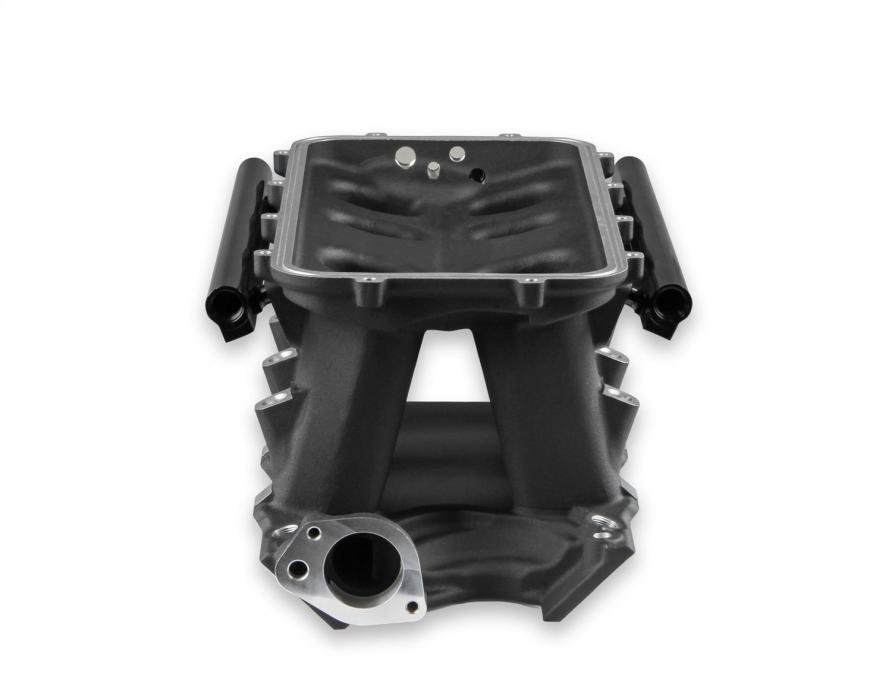

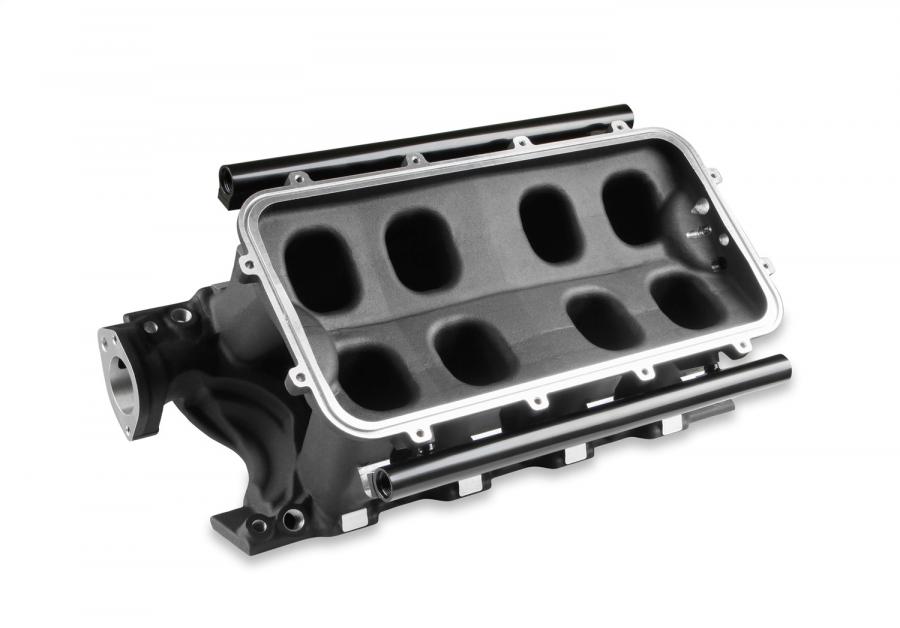

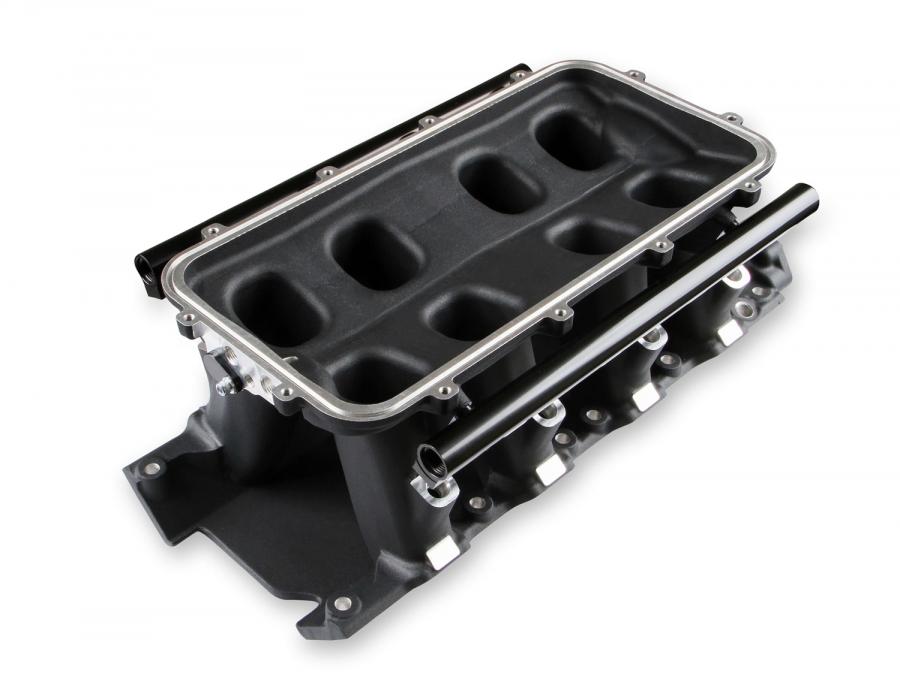

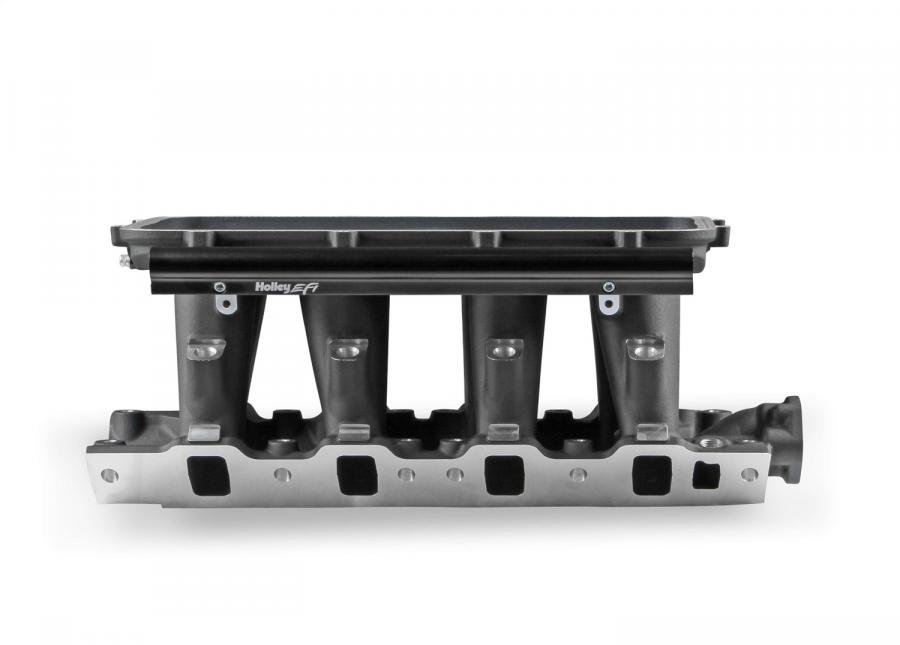

Holley EFI 8.2" SBF Ford Hi-Ram EFI Manifold Base-Black 300-274BK

Holley EFI 8.2" SBF Ford Hi-Ram EFI Manifold Base-Black 300-274BK
Holley EFI 8.2" SBF Ford Hi-Ram EFI Manifold Base-Black 300-274BKHolley EFI 8.2" SBF Ford Hi-Ram EFI Manifold Base-Black 300-274BKHolley EFI 8.2" SBF Ford Hi-Ram EFI Manifold Base-Black 300-274BKHolley EFI 8.2" SBF Ford Hi-Ram EFI Manifold Base-Black 300-274BKHolley EFI 8.2" SBF Ford Hi-Ram EFI Manifold Base-Black 300-274BKHolley EFI 8.2" SBF Ford Hi-Ram EFI Manifold Base-Black 300-274BKHolley EFI 8.2" SBF Ford Hi-Ram EFI Manifold Base-Black 300-274BKHolley EFI 8.2" SBF Ford Hi-Ram EFI Manifold Base-Black 300-274BK
$1,532.99 ea
NEWARRIVING SOONEstimated Ship Date 12/24/2024 (If Ordered Today)32 Available from HOLLEY PERFORMANCE PRODUCTS as of 12/06/2024
Model: 4007263
OVERSIZE 1
STORE PICKUP
[More Info]
The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! Manifold is designed for a 8.2" deck height. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. • Cast aluminum construction. ***EFI Base Manifold only-Manifold tops available seperately. *** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available.
Features:
  • EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Manifold is designed for a 8.2" SBF deck height.
  • EFI Base Manifold only. Black
*** Please see the diagrams in the product images for other dimensions. *** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. Warning: Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core.
Installation Notes:
*** Please see the diagrams in the product images for other dimensions. *** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. Warning: Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core.
About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
199r11758.pdf856.37KB

Videos:

Specifications:

Construction Cast
Emission Code 3
Engine Ford Small Block V8
Finish Black
Flange Style EFI
Fuel System Type EFI
Manifold Type Hi-Ram
Part Type Engine Intake Manifold
Port Size 2.00" x 1.190"
Product Type Intake Manifold
RPM Power Band 1500-7000
Warranty Limited 90 Day
