Holley EFI Four Channel Coil Driver Module 554-112

Holley EFI Four Channel Coil Driver Module 554-112
$260.99 ea
NEWARRIVING SOONEstimated Ship Date 03/15/2024 (If Ordered Today)26 Available from HOLLEY PERFORMANCE PRODUCTS as of 02/22/2024
Model: 4007693
STANDARD
DELIVERY

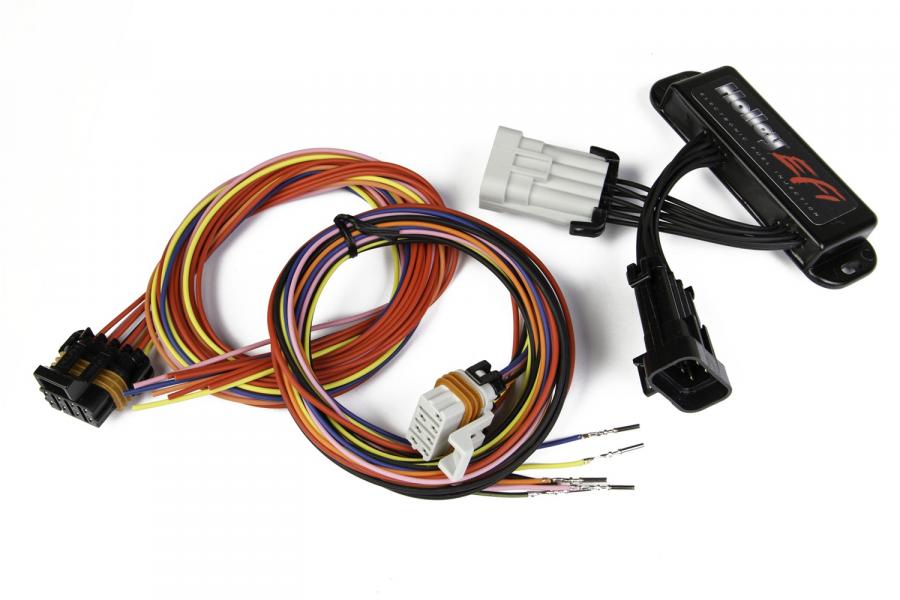

The four channel coil driver module is used to drive a two wire "dumb" ignition coil. Such coils are typically used on Ford Modular and late model Chrysler HEMI engines. Holley EFI ECUs require this coil driver module when running two wire "dumb" coils. Each module can drive four coils, so two are required for an eight cylinder engine that uses eight coils. Included is the coil driver module, an input harness with pins that can be connected directly into the HP or Dominator ECU, and an output harness with pigtail ends. The user must connect these to their specific coils.
Features:
  • Includes mating pigtails
  • Potted design allows installation in engine compartment
  • Drives two wire “Dumb Coils”
  • Four channel

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
199r10658rev2.pdf114.13KB

Specifications:

Emission Code 5
Part Type Ignition Control Module
Product Type High Current Driver - Module
Proposition 65 www.P65Warnings.ca.gov
