Holley EFI Injector Driver Module 554-143

Holley EFI Injector Driver Module 554-143
Holley EFI Injector Driver Module 554-143Holley EFI Injector Driver Module 554-143
$739.99 ea
NEWBackordered until 02/29/2024
Model: 4007719
STANDARD
DELIVERY

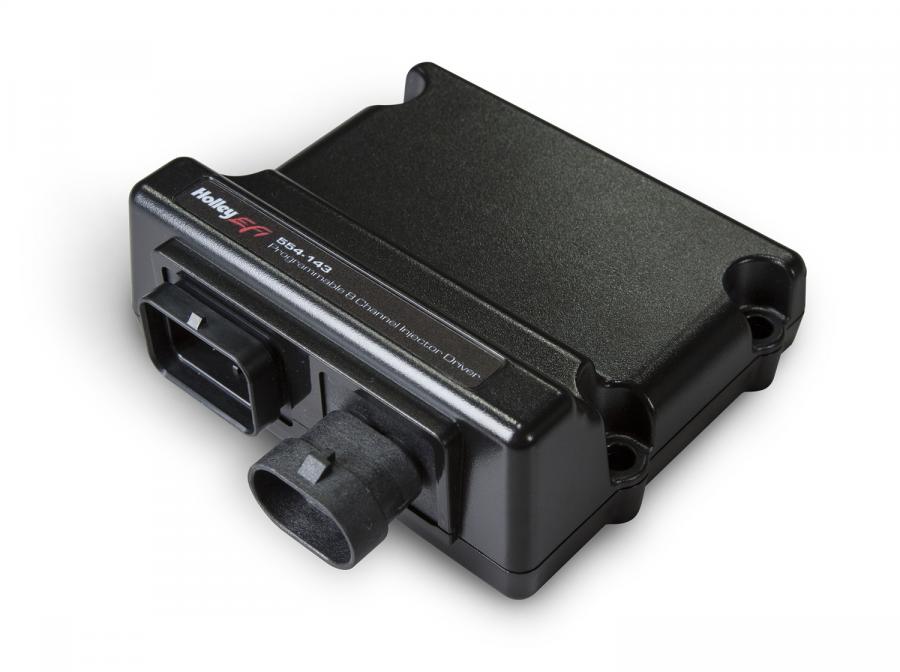

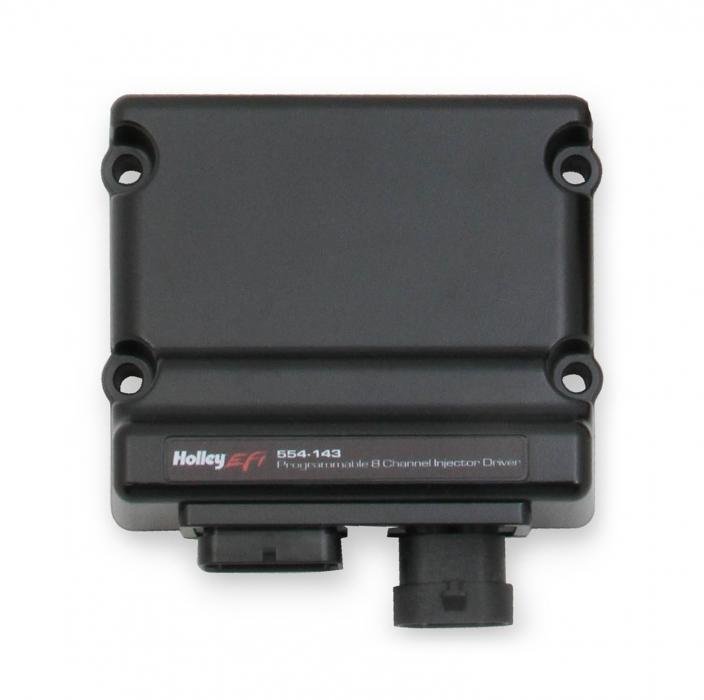

Introducing the Holley EFI Programmable 8 Channel Injector Driver Module. The ultimate solution for methanol burning engines that require a large set of secondary injectors. The Holley EFI Injector Driver Module will have you in complete control of your fuel injected behemoth, featuring easily programmable injector current curves, injector test fire mode, two datalogger outputs, multiple peak and hold current settings and more. This module will allow you to expand the capabilities of your current Electronic Fuel Injected Engine, keeping you at the front of the field!
Features:
  • Engineered specifically to add a secondary set of high peak current injectors when utilizing a Holley EFI Dominator ECU
  • Can be triggered by either negative or positive trigger to ease install in all EFI applications, be it a stock or aftermarket ECU
  • Eight easily programmable channels for precise injector control
  • Easy to wire Tyco Super Seal Connector
  • Eight pre-programmed injector current curves
  • Peak current settings from 4A to 10A
  • Hold current settings from 1A to 2.5A
  • Peak hold duration settings from .5 to 1.0ms
  • Injector test fire program for quick troubleshooting while in the field

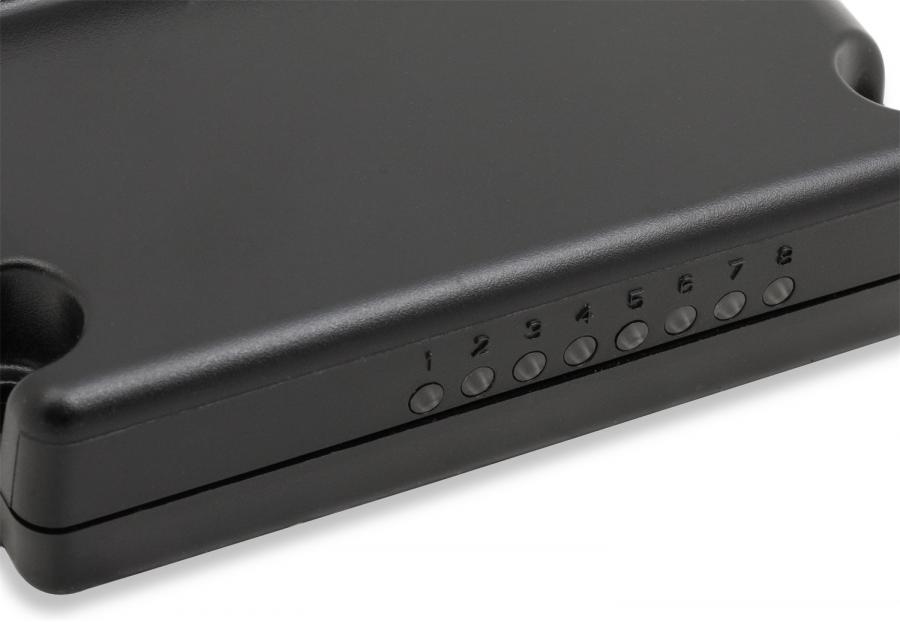

  • 8 RGB LEDs indicate proper operation as well as log faults
  • Two outputs (Ground and 0-5V) can be run to an ECU to datalog any injector faults
  • Pre-Programmed in Position 7 for Billet Atomizer 325-800 or Precision 500 Lb/Hr Injectors
  • Connector - Pins - or Harness not included.

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
199r11287.pdf1.49MB

Videos:

Specifications:

Emission Code 5, 4
Part Type Diesel Fuel Injector Driver Module
Product Type EFI Part
Proposition 65 www.P65Warnings.ca.gov
