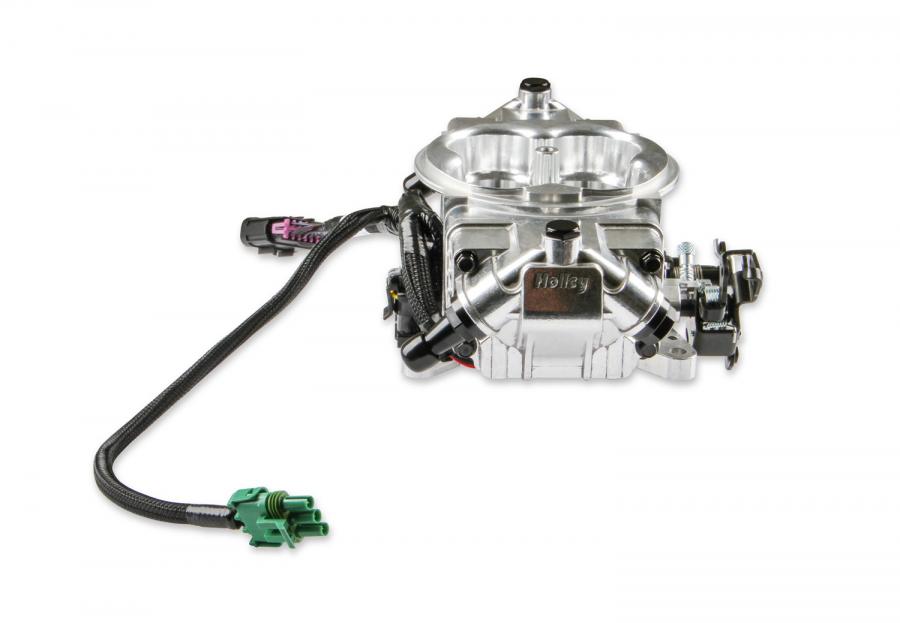

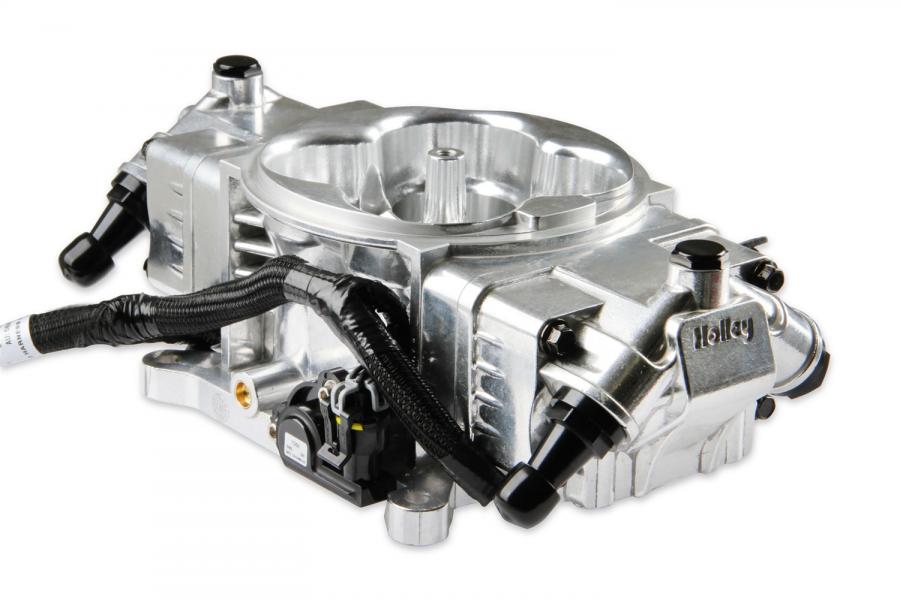

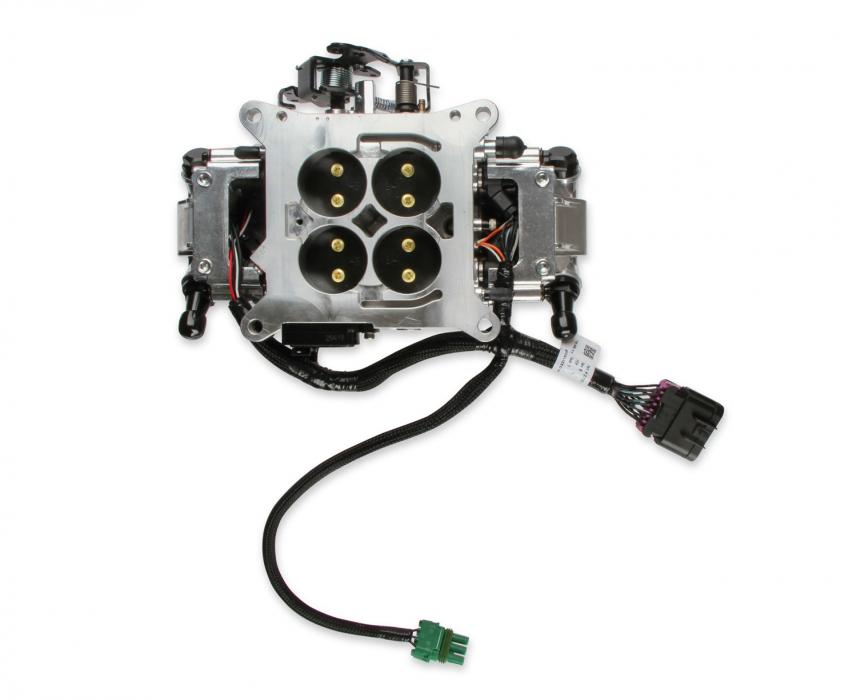

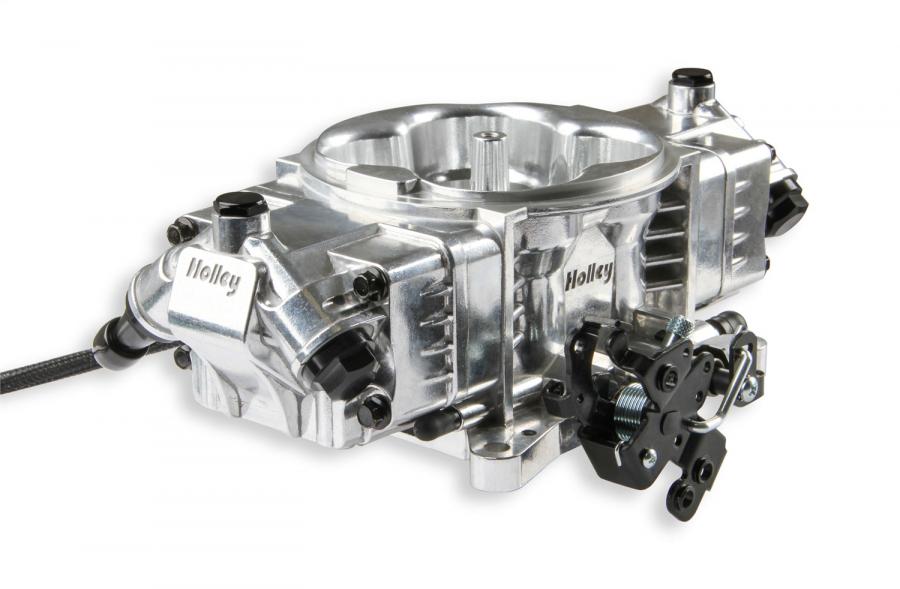

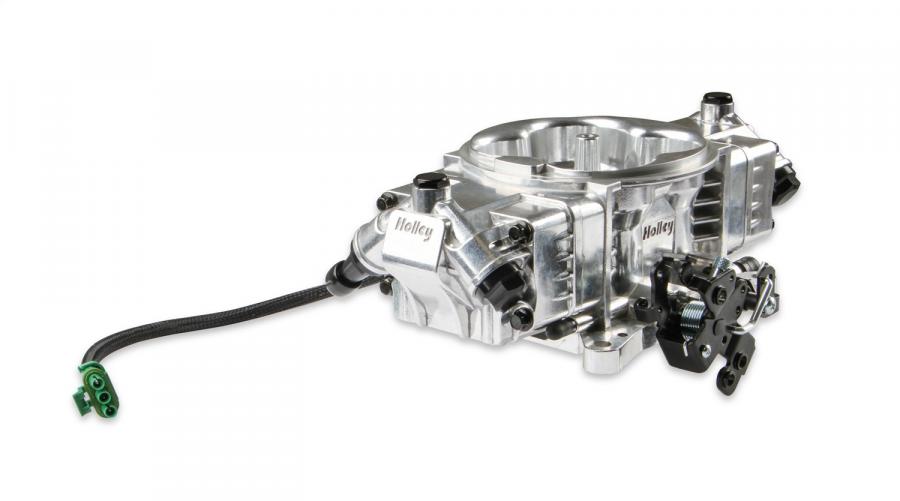

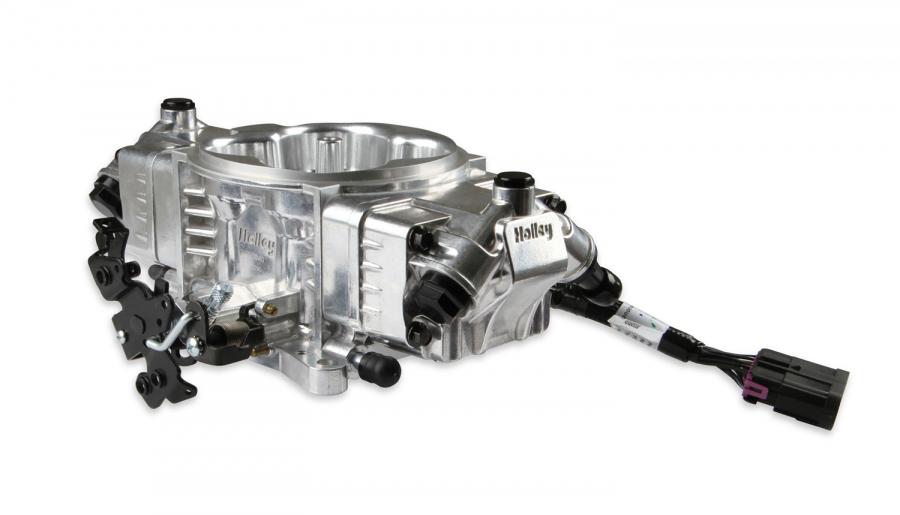

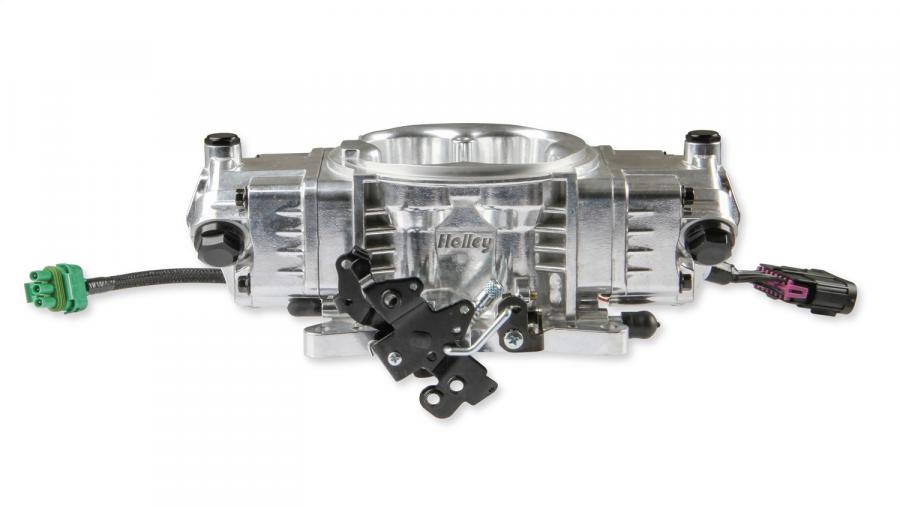

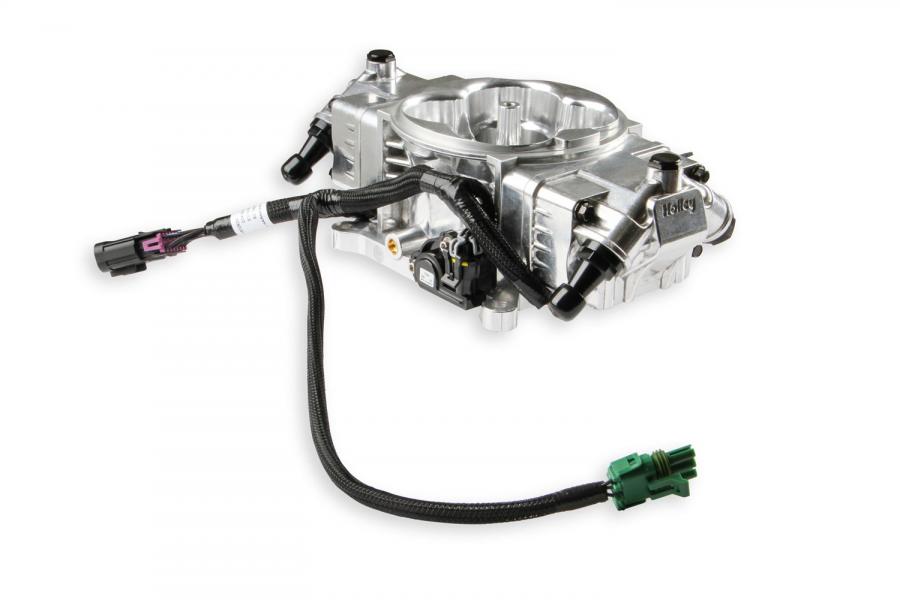

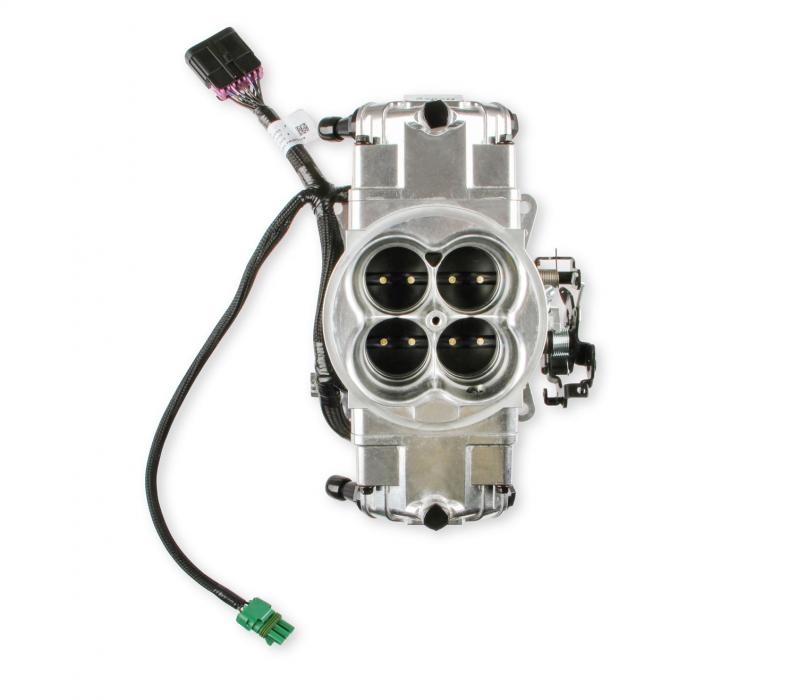

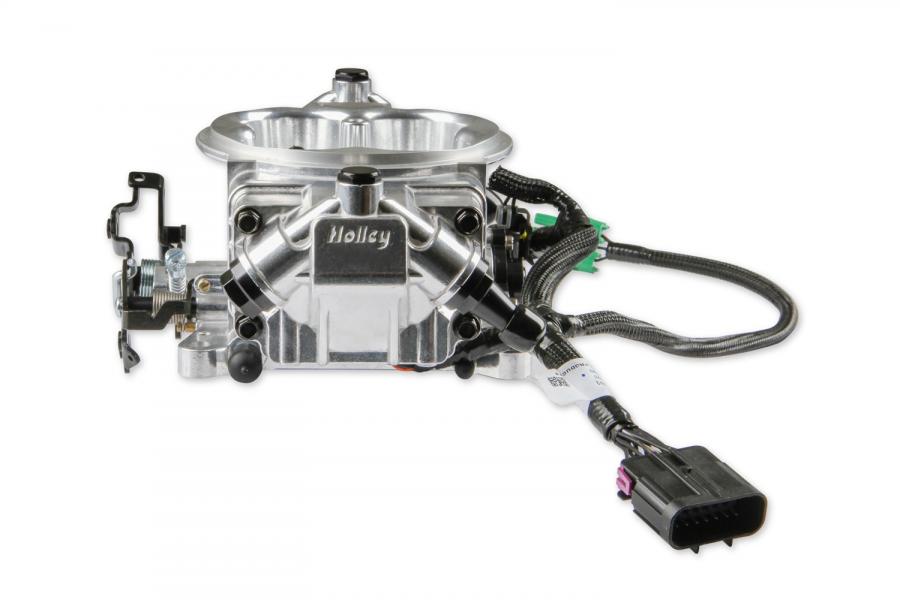

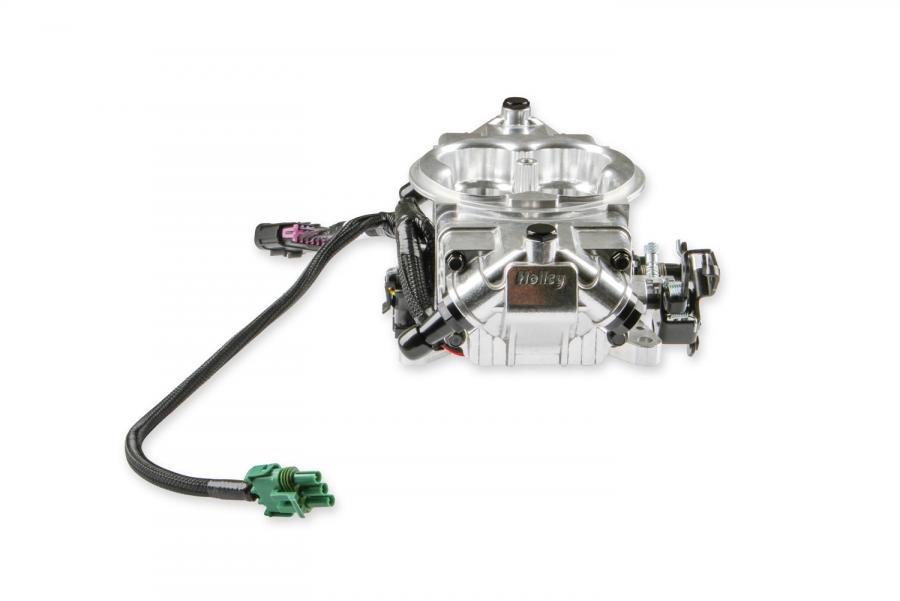

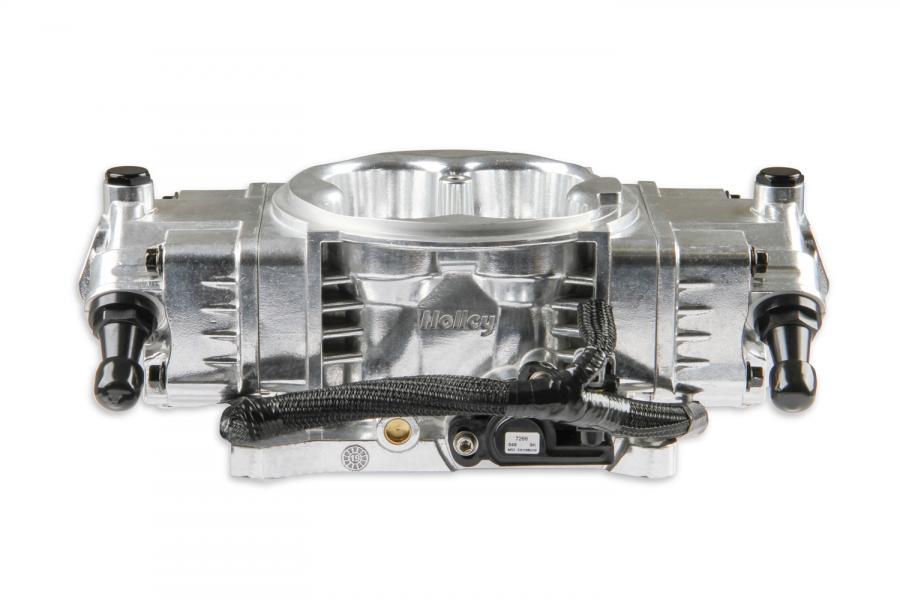

Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020

Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020
Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020Holley EFI Terminator X Stealth GM LS 4150, Shiny 550-1020
$4,501.99 ea
NEWARRIVING SOONEstimated Ship Date 12/20/2024 (If Ordered Today)6 Available from HOLLEY PERFORMANCE PRODUCTS as of 12/03/2024
Model: 4016823
STANDARD
DELIVERY
STORE PICKUP
[More Info]

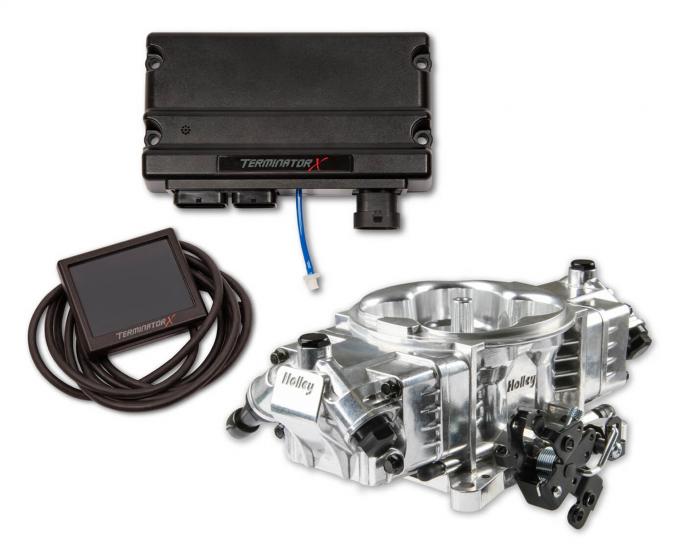

The Terminator X Stealth 4150 EFI system from Holley features 4, 100LB/HR Fuel Injectors capable of supporting up to 650 HP naturally aspirated or 600 HP on forced induction applications. The Terminator X ECU features fuel maps that self-learn and integrated ignition timing control, yielding improved idle stability, drivability, and horsepower at wide-open throttle! Did we mention that the Stealth 4150 also includes transmission kick down provisions for GM TH350/400, 200R4/700R4 and Ford C4/C6 applications? Terminator X Max kits provide plug and play Transmission control for GM 4L60 and 4L80 Transmissions.
Features:
  • Terminator X Stealth 4150 Kits for either 24x or 58x LS engines
  • Supports up to 650HP with Four 100lb./hr. Injectors
  • Terminator X Max kits provide plug and play Transmission control for GM Transmissions
  • Internal 1bar MAP sensor, built into the Terminator X ECU.
  • All of the wiring exits below the fuel injector bowls, for a completely stealth installation
  • Air entry machined to fit most stock style air cleaners with air cleaner locator provisions
  • External fuel pressure regulator required, set to a base pressure of 58.5 PSI, such as 12-886
  • Integrated ignition timing control â€"Plug and play with factory LS coil sub harness and OEM LS coils â€" no external boxes/modules needed to run Coil Near Plug
  • High Resolution Full Color Touchscreen for Initial Setup, Tuning, and Gauge Displays
  • Simple Calibration Wizard (answer a few questions about your engine and it creates the base map, then starts tuning on its own!) - NO laptop required!
  • Self-tuning ECU means you don’t have to be a computer/tuning wiz to have EFI!
  • 4 Inputs â€" 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake (Fuel and Oil Pressure Inputs are pre-terminated)
  • 4 Outputs â€" Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and More
  • The included Genuine Bosch LSU 4.9 Wideband Oxygen Sensor provides real-time Fuel Map Learn!
  • OEM Style TPS/IAC, for years of dependable service
  • Available in 3 finishes: Shiny, Black and Gold
  • Compatible with Holley EFI digital dashes, gauges and fuel system accessories

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
199r11967.pdf254.87KB
199r11990.pdf3.25MB
terminator_x_addendum.pdf263.31KB

Videos:

Specifications:

Color Shiny
Emission Code 3
Ignition Type GM LS 24x
Injector Size 100 lb/hr @ 58.5 PSI
Max Horsepower Rating 650 Naturally Aspirated
Part Type Fuel Injection System
Product Type EFI System
Proposition 65 www.P65Warnings.ca.gov
Terminator LS Options Fuel, Spark
