Holley GM LS Swap Oil Pan 302-1

Holley GM LS Swap Oil Pan 302-1
Holley GM LS Swap Oil Pan 302-1Holley GM LS Swap Oil Pan 302-1Holley GM LS Swap Oil Pan 302-1Holley GM LS Swap Oil Pan 302-1
$779.99 ea
NEWARRIVING SOONEstimated Ship Date 06/18/2025 (If Ordered Today)100 Available from HOLLEY PERFORMANCE PRODUCTS as of 05/28/2025
Model: 3992607
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
GM's popular LS engines are finding their way into a large variety of vehicles. They make great power, plus they're very durable and reliable. Unfortunately, the factory LS pans don't always fit or they hang too low for today's hot rods. Holley's new LS Swap Engine Oil Pan is designed to help! It provides maximum clearance to the chassis and ground, plus provides an OE (Original Equipment) Style fitment for durability and proper sealing. "Holley's new LS engine swap mount plates made the EcoNova's E-Rod LS3 swap simple and painless as well as improving our weight distribution with ideal engine set-back, and the LS Retro-Fit oil pan fit the subframe perfectly while still offering excellent oil control under high cornering loads." -Christopher Campbell, Popular Hot Rodding Magazine
Features:
  • Provides OE Style fitment - OE oil filter mounting, OE oil cooler port provision, OE engine NVH suppression, OE flange gasket and sealing, proper structural rigidity and OE bell-housing attachments
  • Traditional high-quality cast aluminum appearance with clean exterior styling.
  • Provides maximum clearance to chassis
  • Cast and machined aluminum

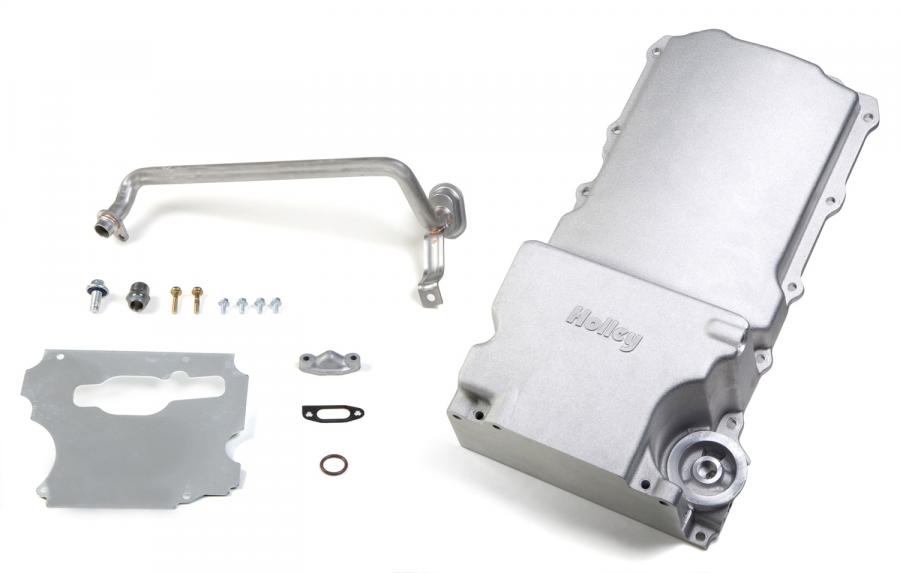

  • Complete kit including sump baffle, pick-up tube, sump plug, oil filter stud & oil passage cover.
  • Fits GM rear wheel drive applications that were originally equipped with a Small Block or Big Block Chevy engine and traditional rear sump oil pan*
  • Maximum crankshaft stroke = 4.25"
Maximum crankshaft stroke = 4.25" Sump Oil Capacity - 5.5 Quarts Total Oil Capacity with stock oil filter - 6 Quarts Oil Filter (AC Delco® PF48 or PF48E, Mobile M1-113, Wix 57060, K&N HP-1017, or equivalent) Requires use of Holley 302-15 Dipstick and Tube Kit or LS3 dipstick (GM P/N 12669528) and tube (GM P/N 12625031) *Engine location may need to be adjusted (up / down or fore / aft) for cross member or steering linkage clearance depending on the vehicle, steering configuration and chassis type. For G-Body applications, use part number 302-2 as the 302-1 swap oil pan is not compatible with a G-Body.
Installation Notes:
Maximum crankshaft stroke = 4.25" Sump Oil Capacity - 5.5 Quarts Total Oil Capacity with stock oil filter - 6 Quarts Oil Filter (AC Delco® PF48 or PF48E, Mobile M1-113, Wix 57060, K&N HP-1017, or equivalent) Requires use of Holley 302-15 Dipstick and Tube Kit or LS3 dipstick (GM P/N 12669528) and tube (GM P/N 12625031) *Engine location may need to be adjusted (up / down or fore / aft) for cross member or steering linkage clearance depending on the vehicle, steering configuration and chassis type. For G-Body applications, use part number 302-2 as the 302-1 swap oil pan is not compatible with a G-Body.
About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
199r10566rev8.pdf693.37KB

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Submodel Years Fitment Notes
Chevrolet 3100 3100 1959 LS Swap
Chevrolet Bel Air Base 1955 - 1963 LS Swap
Chevrolet Bel Air Beauville 1955 - 1956 LS Swap
Chevrolet Bel Air Nomad 1955 - 1957 LS Swap
Chevrolet Bel Air 1963 - 1969 LS Swap; LS Engine Swap
Chevrolet Biscayne Base 1958 - 1963 LS Swap
Chevrolet Biscayne Fleetmaster 1960 LS Swap
Chevrolet Biscayne 1963 - 1969 LS Swap; LS Engine Swap
Chevrolet Blazer Base 1973 - 1974 LS Swap; 2-Wheel Drive
Chevrolet Blazer Custom Deluxe 1987 LS Swap; 2-Wheel Drive
Chevrolet Blazer Scottsdale 1988 - 1991 LS Swap; 2-Wheel Drive
Chevrolet Blazer Silverado 1987 - 1991 LS Swap; 2-Wheel Drive
Chevrolet C10 Pickup Base 1960 - 1963 LS Swap
Chevrolet C10 Pickup 1973 - 1974 LS Swap; LS-SWAP
Chevrolet C10 Suburban Base 1973 - 1974 LS Swap
Chevrolet C10 Suburban Custom Deluxe 1975 - 1980 LS Swap
Chevrolet C10 Suburban Custom 1981 - 1986 LS Swap
Chevrolet C10 Suburban Deluxe 1981 LS Swap
Chevrolet C10 Suburban Scottsdale 1975 - 1986 LS Swap
Chevrolet C10 Suburban Silverado 1975 - 1986 LS Swap
Chevrolet C10 Suburban 1973 - 1986 LS Swap; LS-SWAP
Chevrolet C10 Big Ten 1978 - 1980 LS Swap
Chevrolet C10 Cheyenne 1975 - 1981 LS Swap
Chevrolet C10 Custom Deluxe 1975 - 1980 LS Swap
Chevrolet C10 Custom 1975 - 1986 LS Swap
Chevrolet C10 Deluxe 1981 LS Swap
Chevrolet C10 Scottsdale 1975 - 1986 LS Swap
Chevrolet C10 Silverado 1975 - 1986 LS Swap
Chevrolet C10 1975 - 1986 LS Swap; LS-SWAP
Chevrolet C15 Base 1987 LS Swap
Chevrolet C15 Cheyenne 1982 - 1986 LS Swap
Chevrolet C15 Custom 1982 - 1986 LS Swap
Chevrolet C15 Sport 1984 LS Swap
Chevrolet C15 1987 LS Swap; LS-SWAP
Chevrolet C20 Pickup Base 1960 - 1974 LS Swap
Chevrolet C20 Pickup 1973 - 1974 LS Swap; LS-SWAP
Chevrolet C20 Suburban Base 1973 - 1974 LS Swap
Chevrolet C20 Suburban Custom Deluxe 1975 - 1980 LS Swap
Chevrolet C20 Suburban Custom 1981 - 1986 LS Swap
Chevrolet C20 Suburban Deluxe 1981 LS Swap
Chevrolet C20 Suburban Scottsdale 1975 - 1986 LS Swap
Chevrolet C20 Suburban Silverado 1975 - 1986 LS Swap
Chevrolet C20 Suburban 1973 - 1986 LS Swap; LS-SWAP
Chevrolet C20 Base 1986 - 1987 LS Swap
Chevrolet C20 Cheyenne 1975 - 1987 LS Swap
Chevrolet C20 Custom Deluxe 1975 - 1980 LS Swap
Chevrolet C20 Custom 1981 - 1986 LS Swap
Chevrolet C20 Deluxe 1981 LS Swap
Chevrolet C20 Scottsdale 1975 - 1986 LS Swap
Chevrolet C20 Silverado 1975 - 1986 LS Swap
Chevrolet C20 1975 - 1987 LS Swap; LS-SWAP
Chevrolet C30 Pickup Base 1960 - 1963 LS Swap
Chevrolet Camaro Base 1970 - 1980 LS Swap
Chevrolet Camaro Berlinetta 1979 - 1981 LS Swap
Chevrolet Camaro LT Rally Sport 1976 - 1978 LS Swap
Chevrolet Camaro LT 1973 - 1978 LS Swap
Chevrolet Camaro RS 1970 - 1975 LS Swap
Chevrolet Camaro Rally Sport 1976 - 1980 LS Swap
Chevrolet Camaro SS 1970 - 1972 LS Swap
Chevrolet Camaro Sport 1981 LS Swap
Chevrolet Camaro Z28 1970 - 1981 LS Swap
Chevrolet Camaro 1970 - 1981 LS Swap; LS-SWAP
Chevrolet Caprice 1966 - 1969 LS Swap; LS Engine Swap
Chevrolet Corvette Base 1957 - 1963 LS Swap
Chevrolet Corvette 1966 - 1969 LS Swap; LS Engine Swap
Chevrolet Del Ray Base 1957 - 1958 LS Swap
Chevrolet El Camino Base 1959 - 1960 LS Swap
Chevrolet Impala Base 1958 - 1963 LS Swap
Chevrolet Impala 1963 - 1969 LS Swap; LS Engine Swap
Chevrolet K10 Pickup Base 1960 - 1963 LS Swap
Chevrolet K20 Pickup Base 1960 - 1963 LS Swap
Chevrolet K5 Blazer Base 1976 LS Swap; 2-Wheel Drive
Chevrolet K5 Blazer Cheyenne 1975 - 1980 LS Swap; 2-Wheel Drive
Chevrolet K5 Blazer Custom Deluxe 1975 - 1980 LS Swap; 2-Wheel Drive
Chevrolet K5 Blazer Custom 1981 - 1986 LS Swap; 2-Wheel Drive
Chevrolet K5 Blazer Deluxe 1981 LS Swap; 2-Wheel Drive
Chevrolet K5 Blazer Scottsdale 1984 LS Swap; 2-Wheel Drive
Chevrolet K5 Blazer Silverado 1978 - 1986 LS Swap; 2-Wheel Drive
Chevrolet Nomad Base 1955 - 1961 LS Swap
Chevrolet One-Fifty Series Base 1955 - 1957 LS Swap
Chevrolet P20 Series Base 1960 - 1963 LS Swap
Chevrolet P30 Series Base 1960 - 1963 LS Swap
Chevrolet R10 Suburban Custom Deluxe 1987 LS Swap
Chevrolet R10 Suburban Scottsdale 1987 LS Swap
Chevrolet R10 Suburban Silverado 1987 LS Swap
Chevrolet R10 Suburban 1987 LS Swap; LS-SWAP
Chevrolet R10 Custom Deluxe 1987 LS Swap
Chevrolet R10 Scottsdale 1987 LS Swap
Chevrolet R10 Silverado 1987 LS Swap
Chevrolet R20 Suburban Custom Deluxe 1987 LS Swap
Chevrolet R20 Suburban Scottsdale 1987 LS Swap
Chevrolet R20 Suburban Silverado 1987 LS Swap
Chevrolet R20 Suburban 1987 LS Swap; LS-SWAP
Chevrolet R20 Custom Deluxe 1987 LS Swap
Chevrolet R20 Scottsdale 1987 LS Swap
Chevrolet R20 Silverado 1987 LS Swap
Chevrolet S10 Baja 1991 LS Swap
Chevrolet S10 Base 1982 - 2003 LS Swap
Chevrolet S10 Durango 1982 - 1990 LS Swap
Chevrolet S10 EL 1992 - 1993 LS Swap
Chevrolet S10 LS 1994 - 2004 LS Swap
Chevrolet S10 Maxi 1991 - 1993 LS Swap
Chevrolet S10 SS 1994 - 1998 LS Swap
Chevrolet S10 Sport 1982 - 1989 LS Swap
Chevrolet S10 Tahoe 1982 - 1992 LS Swap
Chevrolet S10 Xtreme 1999 - 2003 LS Swap
Chevrolet S10 ZR2 1994 - 2003 LS Swap
Chevrolet S10 ZR5 2002 - 2004 LS Swap
Chevrolet Suburban Base 1957 - 1963 LS Swap
Chevrolet Truck 3100 1957 - 1958 LS Swap
Chevrolet Truck 3200 1957 - 1958 LS Swap
Chevrolet Truck 3400 1957 LS Swap
Chevrolet Truck 3500 1957 LS Swap
Chevrolet Truck 3600 1957 - 1958 LS Swap
Chevrolet Truck 3700 1957 LS Swap
Chevrolet Truck 3800 1957 - 1958 LS Swap
Chevrolet Truck Base 1957 - 1960 LS Swap
Chevrolet Two-Ten Series Base 1957 LS Swap
Chevrolet Two-Ten Series Del Ray 1957 LS Swap
GMC C15 Suburban Base 1975 - 1978 LS Swap
GMC C15 Suburban High Sierra 1975 - 1978 LS Swap
GMC C15 Suburban Sierra Classic 1975 - 1978 LS Swap
GMC C15 Suburban Sierra Grande 1975 - 1978 LS Swap
GMC C15/C1500 Suburban Base 1973 - 1974 LS Swap
GMC C1500 Suburban Base 1979 - 1986 LS Swap
GMC C1500 Suburban High Sierra 1979 - 1986 LS Swap
GMC C1500 Suburban Sierra Classic 1979 - 1986 LS Swap
GMC C1500 Suburban Sierra Grande 1979 - 1982 LS Swap
GMC C15 Base 1975 - 1978 LS Swap
GMC C15 Heavy Half 1977 - 1978 LS Swap
GMC C15 High Sierra 1975 - 1978 LS Swap
GMC C15 Indy Hauler 1977 LS Swap
GMC C15 Sierra Classic 1975 - 1978 LS Swap
GMC C15 Sierra Grande 1975 - 1978 LS Swap
GMC C15 Street Coupe 1978 LS Swap
GMC C25 Suburban Base 1975 - 1978 LS Swap
GMC C25 Suburban High Sierra 1975 - 1978 LS Swap
GMC C25 Suburban Sierra Classic 1975 - 1978 LS Swap
GMC C25 Suburban Sierra Grande 1975 - 1978 LS Swap
GMC C25/C2500 Pickup Base 1973 - 1974 LS Swap
GMC C25/C2500 Suburban Base 1973 - 1974 LS Swap
GMC C2500 Base 1979 - 1986 LS Swap
GMC C2500 High Sierra 1979 - 1986 LS Swap
GMC C2500 Sierra Classic 1979 - 1986 LS Swap
GMC C2500 Sierra Grande 1979 - 1982 LS Swap
GMC C25 Base 1975 - 1978 LS Swap
GMC C25 High Sierra 1975 - 1978 LS Swap
GMC C25 Sierra Classic 1975 - 1978 LS Swap
GMC C25 Sierra Grande 1975 - 1978 LS Swap
GMC Jimmy Base 1973 - 1991 LS Swap; 2-Wheel Drive
GMC Jimmy High Sierra 1975 - 1985 LS Swap; 2-Wheel Drive
GMC Jimmy Sierra Classic 1975 - 1990 LS Swap; 2-Wheel Drive
GMC Jimmy Sierra Grande 1975 - 1982 LS Swap; 2-Wheel Drive
GMC Jimmy Silverado 1986 LS Swap; 2-Wheel Drive
GMC Jimmy Street Coupe 1978 - 1982 LS Swap; 2-Wheel Drive
GMC R1500 Suburban Base 1987 LS Swap
GMC R1500 Suburban High Sierra 1987 LS Swap
GMC R1500 Suburban Sierra Classic 1987 LS Swap
GMC R1500 Base 1987 LS Swap
GMC R1500 High Sierra 1987 LS Swap
GMC R1500 Sierra Classic 1987 LS Swap
GMC R2500 Suburban Base 1987 LS Swap
GMC R2500 Suburban High Sierra 1987 LS Swap
GMC R2500 Suburban Sierra Classic 1987 LS Swap
GMC R2500 Base 1987 LS Swap
GMC R2500 High Sierra 1987 LS Swap
GMC R2500 Sierra Classic 1987 LS Swap
GMC S15 Base 1982 - 1990 LS Swap
GMC S15 EL 1987 LS Swap
GMC S15 Gypsy 1983 - 1988 LS Swap
GMC S15 High Sierra 1982 - 1990 LS Swap
GMC S15 Sierra Classic 1982 - 1990 LS Swap
GMC S15 Sierra Grande 1982 LS Swap
GMC Sonoma Base 1991 - 1993 LS Swap
GMC Sonoma GT 1992 LS Swap
GMC Sonoma SLE 1991 - 2001 LS Swap
GMC Sonoma SLS 1993 - 2004 LS Swap
GMC Sonoma SL 1994 - 2004 LS Swap
Jeep Wrangler Base 1987 LS Swap
Jeep Wrangler Laredo 1987 LS Swap
Jeep Wrangler Sport 1987 LS Swap
Pontiac Firebird Base 1970 - 1981 LS Swap
Pontiac Firebird Esprit 1970 - 1981 LS Swap
Pontiac Firebird Formula 1970 - 1981 LS Swap
Pontiac Firebird Trans Am 1970 - 1981 LS Swap
Pontiac Firebird 1970 - 1981 LS Swap; LS-SWAP

Specifications:

Application GM LS Engines
Choose Your Part Oil Pan Kit
Emission Code 5
Finish Natural Cast
Material Aluminum
Maximum Stroke 4.25"
Oil Pan Capacity 5.5 Quarts
Oil Pan Type Cast
Part Type Engine Oil Pan
Product Type Oil Pan Kit
Sump Location Rear
Turbo Oil Drainback No
Warranty Limited 90 Day
Windage Tray Included No
