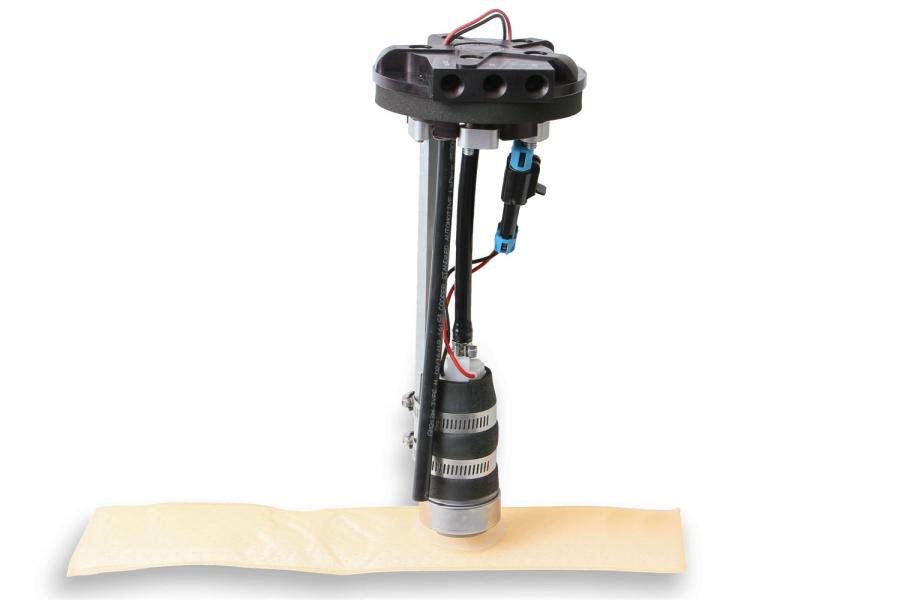

Holley In-Tank Retrofit Fuel Module 12-134

Holley In-Tank Retrofit Fuel Module 12-134
Holley In-Tank Retrofit Fuel Module 12-134Holley In-Tank Retrofit Fuel Module 12-134Holley In-Tank Retrofit Fuel Module 12-134Holley In-Tank Retrofit Fuel Module 12-134Holley In-Tank Retrofit Fuel Module 12-134
$910.99 ea
NEWBackordered until 08/16/2021Out of stock at HOLLEY PERFORMANCE PRODUCTS as of 08/01/2021
Model: 3991162
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
The Holley In-tank RetroFit Fuel Modules are now available with a 525 LPH Pump. Convert your factory tank or fuel cell to an in-tank EFI fuel system quickly and easily! And- add the benefits of a Holley Hydramat in the process! The conversion is easily accomplished with basic tools and requires no welding or fabrication. The billet aluminum module design includes a billet pump hanger bracket to control pump vibration while also providing a low profile design to fit where space is at a premium. Holley's innovative clamping system and integrated fuel pump makes it easy. Supports up to 1200 EFI or 1450 Carb HP (@ 60 PSI at 13.5 Volts / 16.9 AMP Draw) Of course there are many variables, estimates are based on gasoline. Individual systems will vary based on fuel system design, regulator type, fuel cell location, etc...
Features:
  • Retrofit Fuel Module 525 LPH- Return Style
Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations
Installation Notes:
It is recommended to use a Holley 12-753 30 Amp Fuel Pump Relay along with a minimum size of 12 Gauge wire for your installation. *** Maximum 6AN line and fitting size due to space limitations between unit and fuel tank.

About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
199r10934.pdf828.71KB

Videos:

Specifications:

Application Universal
Diameter 4.8"
Emission Code 3
Free Flow LPH 525
Fuel Type E85
Material Billet Aluminum
NPT Thread 1/4 NPT
Part Type Fuel Pump Module Assembly
