Lakewood Bellhousing, Small Block Ford 15200

Name: Lakewood Bellhousing, Small Block Ford 15200
Brand: Lakewood
SKU: 4010408
Price: 1402.99 CAD
Availability: InStock

$1,402.99 ea

NEWARRIVING SOONEstimated Ship Date 05/20/2024 (If Ordered Today)34 Available from HOLLEY PERFORMANCE PRODUCTS as of 04/28/2024

Model: 4010408

0 reviewsWrite a Review Add to Wish List

Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.

CALL US
877.352.5355

Description Vehicle Fitment Downloads Video Specifications Reviews (0) Product Q&A Related Products

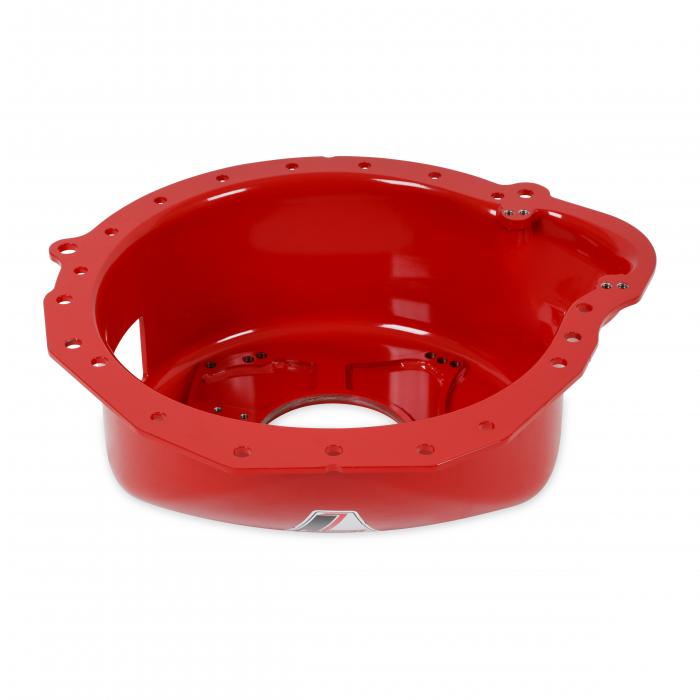

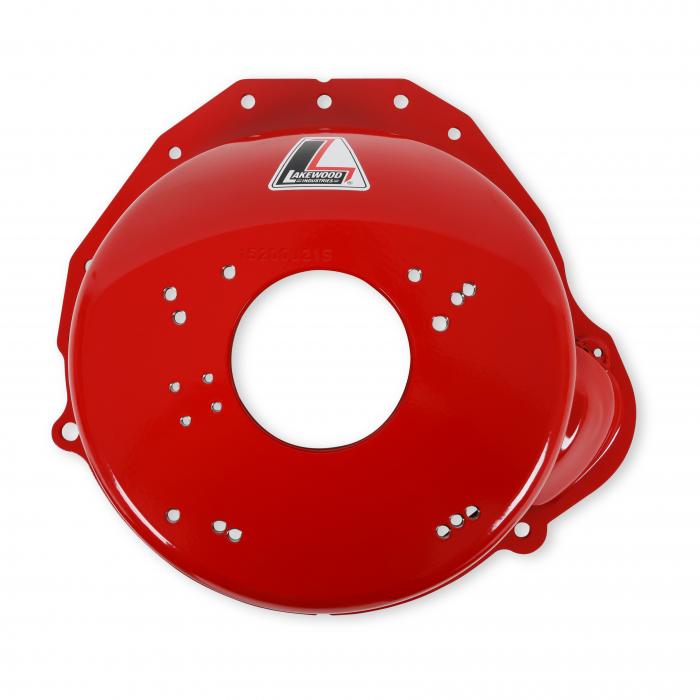

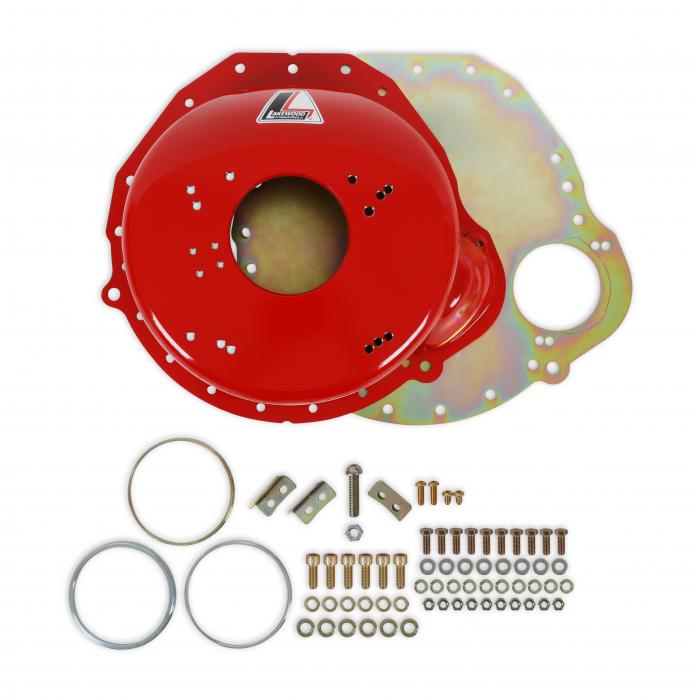

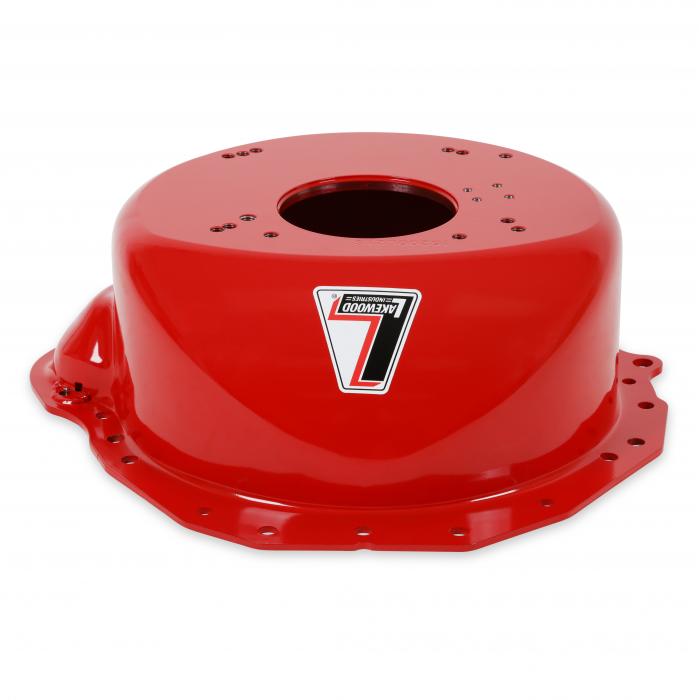

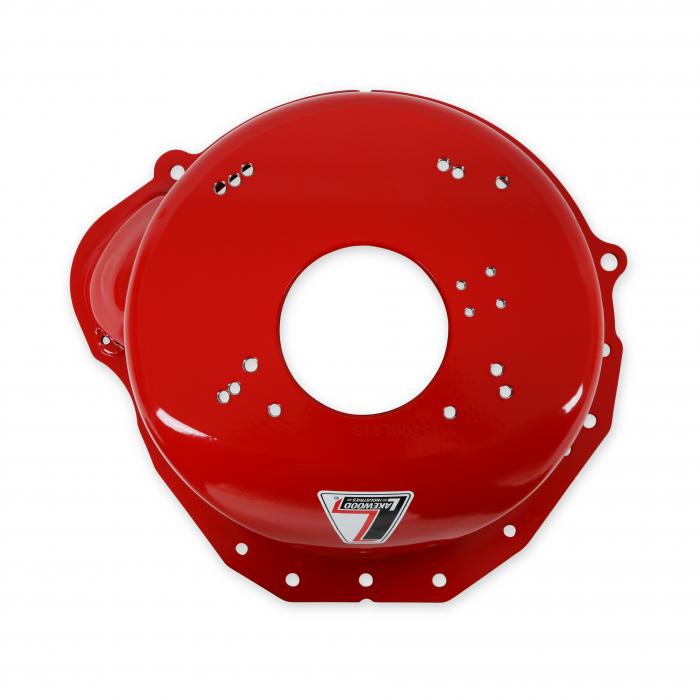

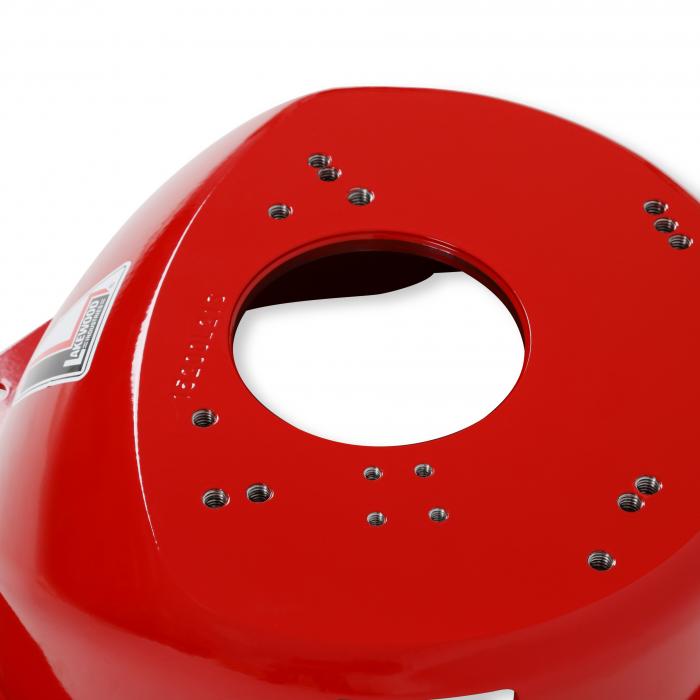

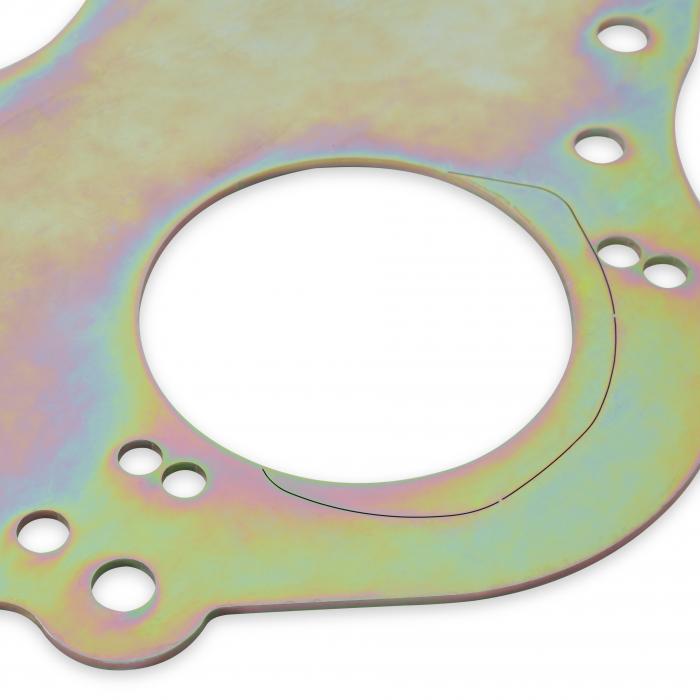

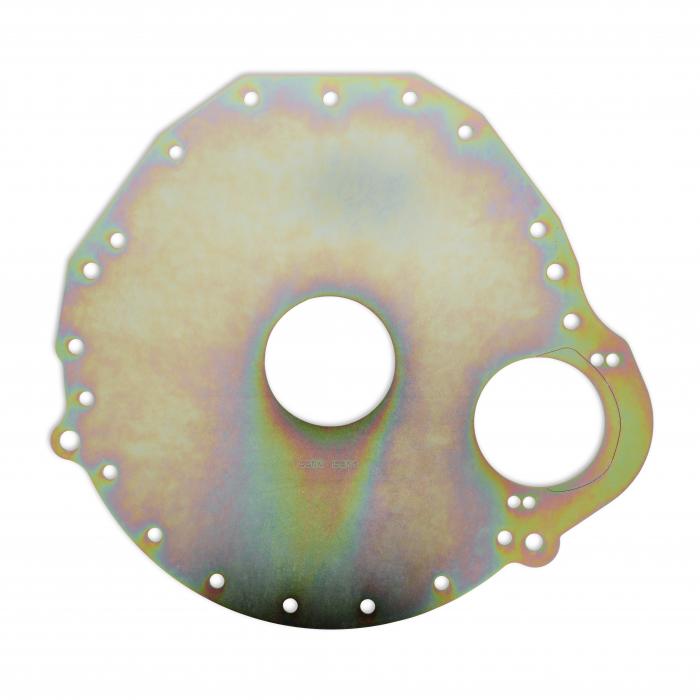

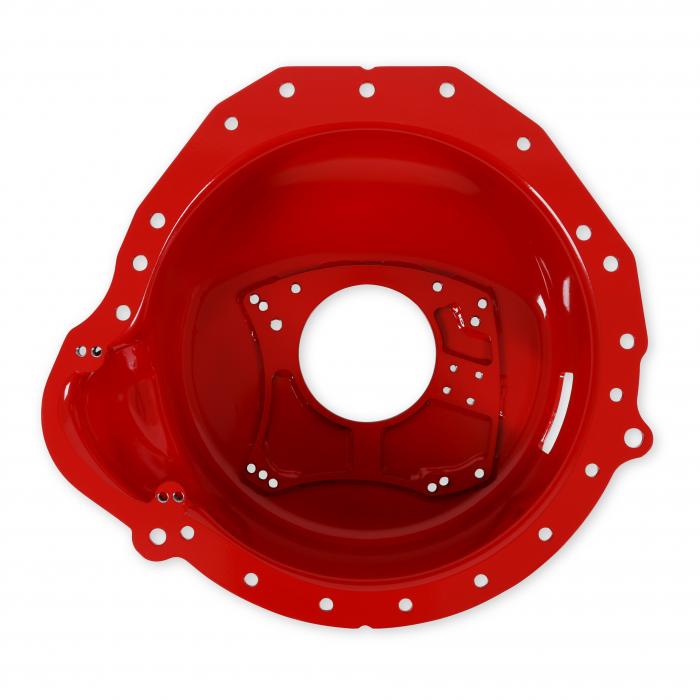

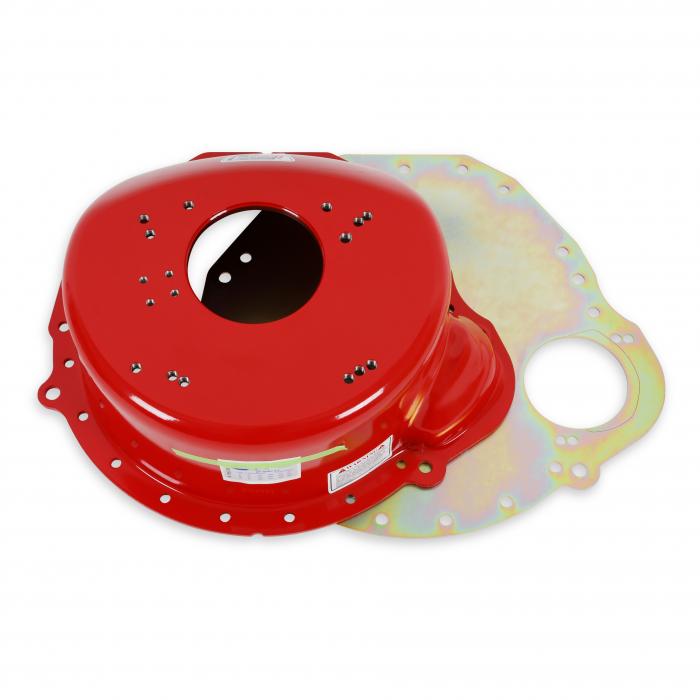

The Lakewood 15200 bellhousing connects Ford small block engines to Ford toploaders, Borg Warner T10, and Tremec TKO (short shaft) transmissions. This bellhousing is hydro formed to fit most Ford chassis. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. The Lakewood 15200 comes complete with engine block plate and Grade 8 mounting hardware. Note: (Transmission Mounting Bolts Not Included)

Features:

Designed For Mechanical Linkage, Pull Cable or Hydraulic clutch operation
Bellhousing Depth: 6.361 in

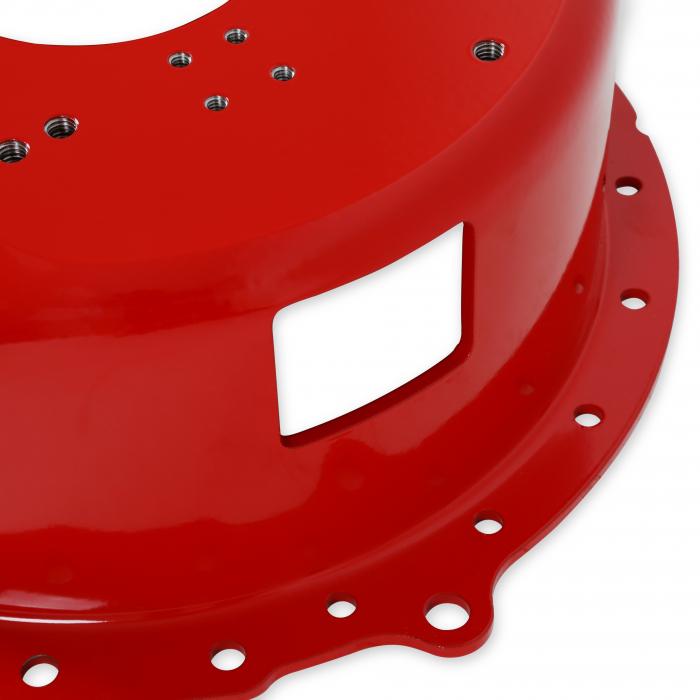

Clutch Fork Opening: 3.00 In X 2.37 In

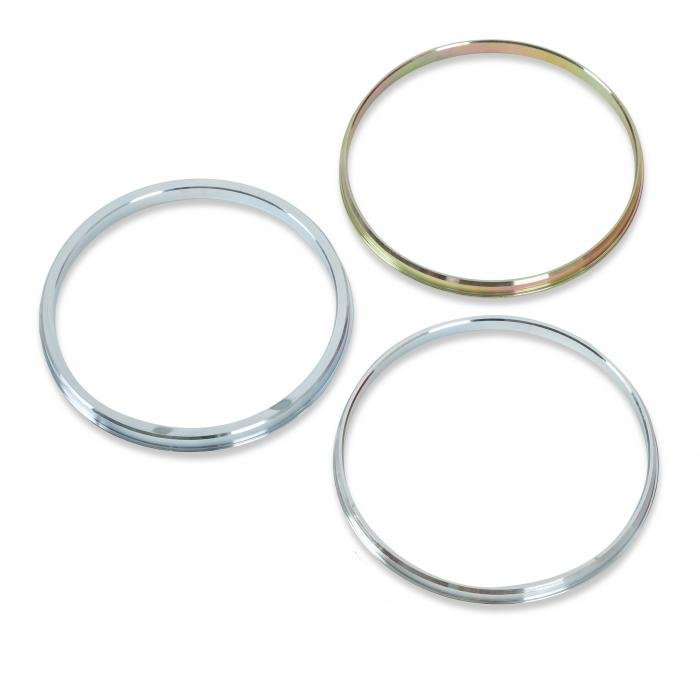

Includes 3 Retainer Rings for Various Transmissions
Hydro formed Construction
Includes Grade 8 Hardware
S.F.I. 6.1 Certification
Made In The USA
Fork Bracket and Pivot Ball included

T5, TKO fit with adapters Direct fit for TKO transmissions with short input shaft

Installation Notes:

T5, TKO fit with adapters Direct fit for TKO transmissions with short input shaft

Downloads:

Download Name	File Size
lakewood_instructions_safety_bellhousing_ford_289_302_351_15200_15201_15202.pdf	188.1KB

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.

Make	Model	Years	Engine	Fitment Notes
Ford	Mustang II	1975	5.0L / 302 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Ford	Mustang II	1976	5.0L / 302 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Ford	Mustang II	1977	5.0L / 302 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Ford	Mustang II	1978	5.0L / 302 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Ford	Mustang	1965	4.7L / 289 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Ford	Mustang	1966	4.7L / 289 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Ford	Mustang	1967	4.7L / 289 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Ford	Mustang	1968	5.0L / 302 / V8 4.7L / 289 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Ford	Mustang	1969	5.0L / 302 / V8 5.8L / 351 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Ford	Mustang	1970	5.0L / 302 / V8 5.8L / 351 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Ford	Mustang	1971	5.0L / 302 / V8 5.8L / 351 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Ford	Mustang	1972	5.0L / 302 / V8 5.8L / 351 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Ford	Mustang	1973	5.0L / 302 / V8 5.8L / 351 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Mercury	Cougar	1967	4.7L / 289 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Mercury	Cougar	1968	4.7L / 289 / V8 5.0L / 302 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Mercury	Cougar	1969	5.8L / 351 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Mercury	Cougar	1970	5.0L / 302 / V8 5.8L / 351 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Mercury	Cougar	1971	5.8L / 351 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Mercury	Cougar	1972	5.8L / 351 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Mercury	Cougar	1973	5.8L / 351 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Mercury	Cougar	1974	5.8L / 351 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Mercury	Cougar	1975	5.8L / 351 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Mercury	Cougar	1976	5.8L / 351 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Mercury	Cougar	1977	5.0L / 302 / V8 5.8L / 351 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;
Mercury	Cougar	1978	5.0L / 302 / V8 5.8L / 351 / V8	SAFETY BELLHOUSING; 4.850 IN. BORE DIA.; 6.361 IN. DEPTH; 3.00X2.37 IN. FORK OPENING; FORD TOP LOADER/FORD BW T-10 TRANS.; FITS 6-BOLT BLOCKS;

Specifications:

Clutch Diameter	11"
Clutch Operation	Mechanical, Pull Cable or Hydraulic
Color	Red
Emission Code	5
Engine	Ford 351W, Ford 302, Ford Small Block V8, Ford 351C, Ford 289
Engine Make	Ford
Flywheel	157/164 Tooth
Height	6.361
Make	Ford
Material	Steel
Part Type	Transmission Bell Housing
Product Type	Bellhousing
SFI Approved	Yes
SFI Certification	6.1
Trans. Bore Diameter	Universal 4.685/4.850/4.910/5.120
Transmission	Ford Toploader, T10, TKO 500/600 Ford - Short Shaft
Transmission Type	Manual
Weight	44.8
