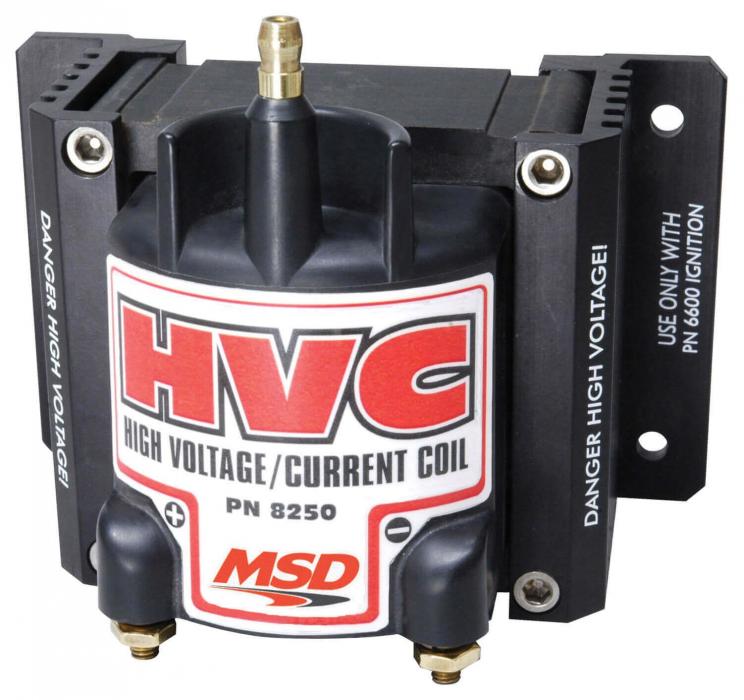

MSD Ignition Coil, 6 HVC 8250

MSD Ignition Coil, 6 HVC 8250
$319.99 ea
NEWARRIVING SOONEstimated Ship Date 12/20/2024 (If Ordered Today)100 Available from HOLLEY PERFORMANCE PRODUCTS as of 12/03/2024
Model: 4017588
STANDARD
DELIVERY
STORE PICKUP
[More Info]
The E-Core design of the HVC Coil is more efficient in producing more output with less loss. The HVC Coil is designed to be used exclusively with the MSD 6 HVC Series Ignition Controls (#6631, #6632). This Coil is not recommended for use with any other MSD Ignition Control or similar aftermarket ignition.
Features:
  • E-Core design produces more voltage and current while running 50% cooler than canister coils
  • Massive laminations and windings are engineered for less energy loss
  • Delivers high voltage to ionize the plug gap while the spark glows with high current
The HVC Coil is designed to be used exclusively with the MSD 6 HVC Series Ignition Controls (#6631, #6632). This Coil is not recommended for use with any other MSD Ignition Control or similar aftermarket ignition.
Installation Notes:
The HVC Coil is designed to be used exclusively with the MSD 6 HVC Series Ignition Controls (#6631, #6632). This Coil is not recommended for use with any other MSD Ignition Control or similar aftermarket ignition.

About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you  need to meet your performance goals. We continue to innovate and invent components and technology that deliver  performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components  that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to  top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in  motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power  and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators  ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Downloads:

Download Name File Size
8250.pdf127.74KB

Specifications:

Color Black
Emission Code 4
Inductance 3mH
Maximum Voltage 34,000 Volts
Part Type Ignition Coil
Peak Current 600 mA
Primary Resistance .07 OHMs
Product Type Ignition Coils
Proposition 65 www.P65Warnings.ca.gov
Secondary Resistance 360 ohms
Spark duration 200 uS, 200 uS
Turns Ratio 100:1
Type Circle Track
Warranty Limited 1 Year Warranty
Weight 3.75 Lbs
