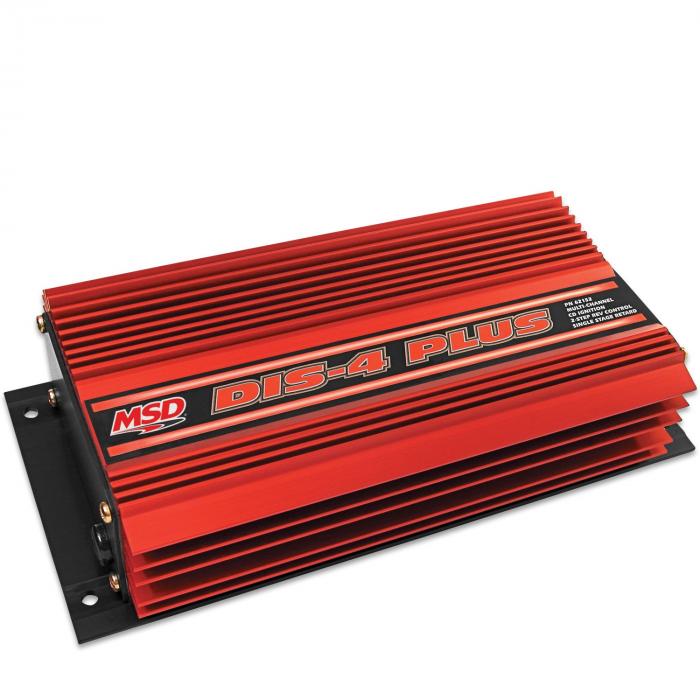

MSD DIS-4 Plus Distributorless 4-Channel 62152

MSD DIS-4 Plus Distributorless 4-Channel 62152
$1,397.99 ea
NEWARRIVING SOONEstimated Ship Date 12/27/2024 (If Ordered Today)5 Available from HOLLEY PERFORMANCE PRODUCTS as of 12/11/2024
Model: 4017372
STANDARD
DELIVERY
STORE PICKUP
[More Info]
The mid 1980s were the beginning of the end for distributors in regard to new cars. The Buick Grand Nationals started using coil pack technology while many other GM vehicles were using dual tower coil packs sometimes known as Waste Spark systems. When Ford moved to the 4.6L Modular engine in the '96 Mustang, there were two coil packs with four towers each set up as a Waste MSD,Spark. Other common applications came from Mitsubishi and eventually Chrysler systems. MSD, MSD,MSD's DIS-4 Ignition Control is designed for engines with coil pack, waste spark ignition systems and is capable of firing up to four coil packs (or even four individual coils). Each Control delivers full power Capacitive Discharge sparks from idle through racing rpm. Below 3,000 rpm there is a series of multiple sparks that last for up to 20° of crankshaft rotation to improve idle, starting and throttle response. MSD, MSD,The adjustable features of the DIS Ignition includes an over-rev limiter and the holeshot rev limit. Also, there is a step retard that can be wired directly to a nitrous system or switch for activation! These are adjustable with rotary dials.
Features:
  • Two Step Rev Control
  • Step Retard
  • LED Monitor
  • Features are adjustable with rotary switches
  • EO # D-115-25
CARB EO: D-115-25
Installation Notes:
CARB EO: D-115-25

About MSD Ignition

Racers never stop experimenting as they search for every way to wring out more power or handling performance to to gain an edge over the competition. The team at MSD is no different as we strive to deliver the products you  need to meet your performance goals. We continue to innovate and invent components and technology that deliver  performance and reliability with products that are easy to use and install.

Over the course of 40-plus years, MSD Performance has been driving the development of innovative components  that helped shape the way our cars race and perform. From super speedways to road courses, land speed racing to  top fuel dragsters, and of course your traditional hot rod, MSD has provided the components to fire nearly anything in  motorsports.

MSD was the first company to develop and offer the multiple sparking, capacitive discharge ignition for engines. The line of MSD 6-Series Ignitions are the most popular aftermarket ignitions in the world due to our race-proven performance on the track and our reliability on the street!

Early on, MSD focused squarely on ignition systems with revolutionary products like the multiple sparking CD ignition, timing and rev controls, billet aluminum distributors and the Pro-Mag, an incredible breakthrough in power  and endurance.

Today MSD is developing electronics for your entire powertrain. The Atomic EFI systems for the LS engine platform and throttle body are now complemented with a transmission controller. Our DynaForce Starters and Alternators  ensure that your engine cranks over to fire up and the Alternators keep it charged. MSD is poised to deliver components that work and communicate together to provide performance and value.

Downloads:

Download Name File Size
62152.pdf1.14MB
frm31034_thank_you_0821.pdf23.32KB

Specifications:

Current Draw  6.6 Amps at 10,000 RPM
Emission Code 1
EO Number D-115-25
Part Type Ignition Control Module
Primary Voltage 460-480 Volts
Product Type Ignition
Proposition 65 www.P65Warnings.ca.gov
RPM Range 14,000 RPM with 14.4 Volts
Secondary Voltage 40,000 Volts
Spark Energy 105-115 mJ/spark
Spark Series Duration 20 Degree Crankshaft Rotation
Voltage Required 10-18 Volts, Negative Ground
Warranty Limited 1 Year Warranty
Weight and Size 4.5 lbs.,9.5"L x 4.5"W x 2.2"H
