NOS Sportsman Fogger Nitrous System 05088NOS

NOS Sportsman Fogger Nitrous System 05088NOS
NOS Sportsman Fogger Nitrous System 05088NOSNOS Sportsman Fogger Nitrous System 05088NOSNOS Sportsman Fogger Nitrous System 05088NOSNOS Sportsman Fogger Nitrous System 05088NOSNOS Sportsman Fogger Nitrous System 05088NOS
$2,193.99 ea
NEWARRIVING SOONEstimated Ship Date 07/09/2024 (If Ordered Today)2 Available from HOLLEY PERFORMANCE PRODUCTS as of 06/18/2024
Model: 4012742
STANDARD
DELIVERY

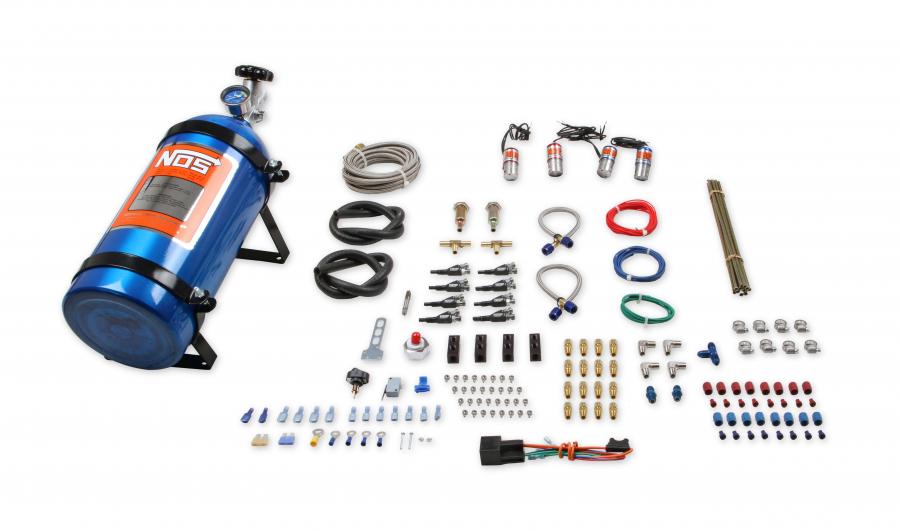

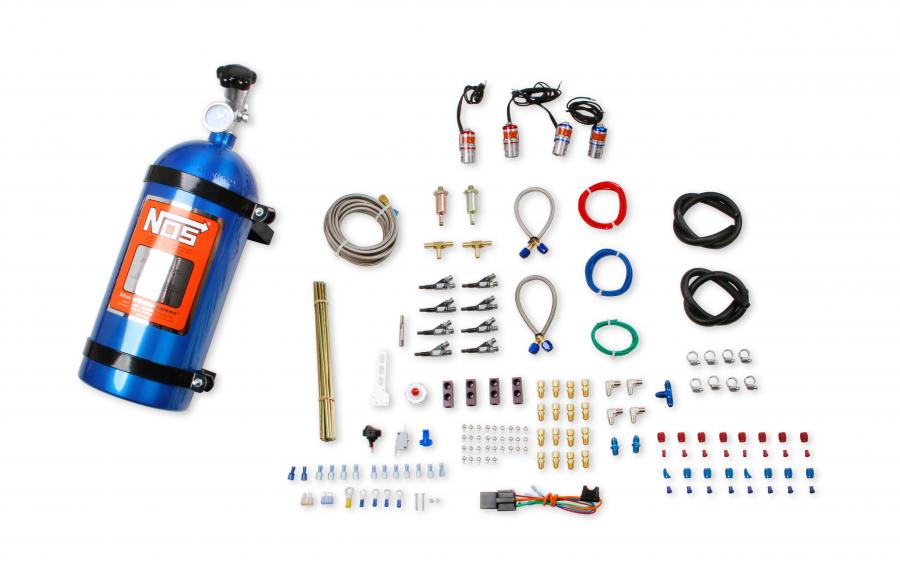

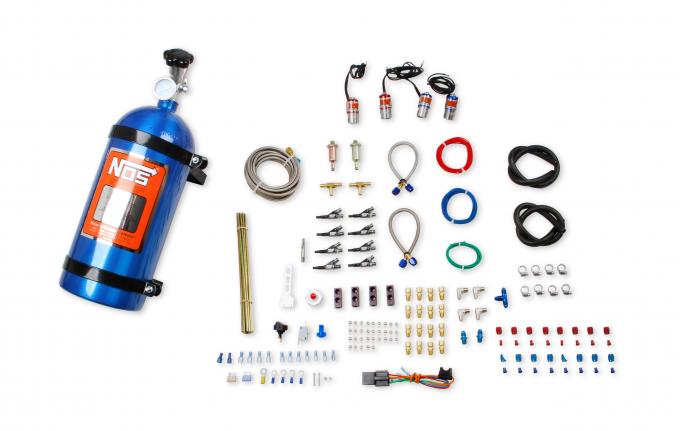

V8 small block - w/ (4) Powershot solenoids. The NOS Sportsman Fogger Systems offer superior atomization and tuning by injecting precisely measured amounts of fuel and nitrous into each individual port with our patented Fogger Nozzles. Power levels are adjustable by changing nitrous and fuel jets in each Fogger Nozzle. The latest in high-tech solenoid technology allows for an extreme degree of reliability with jetting adjustability ranging from a 50 to a 150 extra HP gain. All Sportsman Fogger Systems include a 10 lb. capacity nitrous bottle, Powershot nitrous and fuel solenoids, Fogger nozzles, aircraft quality steel braided hose, and all other necessary electrical and mounting hardware for a complete installation. Requires removal of intake manifold for plumbing.
Features:
  • Engineered Precise Distribution
  • Comes with 16 number 24 and 28 jets
  • Req. Intake Manifold
  • Includes Necessary Mounting Hardware
  • Includes Necessary Electrical Hardware
  • Extreme Degree Of Reliability
  • Adjustable Power Levels
  • Precise Injection Of Fuel/Nitrous
  • Superior Atomization and Tuning
  • Kit has 175hp and 250hp jetting
To supply the carburetor and the Sportsman Fogger System in carbureted applications, use a fuel pump designed to operate between 5 and 10 psi with a flow rate of 0.1 gallons per hour per horsepower at 6 psi. Fuel injected applications will require a fuel pump that flows at least 0.1 gallons per hour at system pressure. For example at 42 psi flowing, a motor that makes 450 hp while the nitrous system is activated will require at least 45 g.p.h. at 42 psi flowing, and going down the track. Due to high power levels and cylinder pressures produced by Sportsman Fogger Systems it is highly recommended that you use high quality forged pistons and rods as well as high quality racing ignition system with timing control. If horsepower gain in more than 40% of original, forged pistons are recommended.
Installation Notes:
To supply the carburetor and the Sportsman Fogger System in carbureted applications, use a fuel pump designed to operate between 5 and 10 psi with a flow rate of 0.1 gallons per hour per horsepower at 6 psi. Fuel injected applications will require a fuel pump that flows at least 0.1 gallons per hour at system pressure. For example at 42 psi flowing, a motor that makes 450 hp while the nitrous system is activated will require at least 45 g.p.h. at 42 psi flowing, and going down the track. Due to high power levels and cylinder pressures produced by Sportsman Fogger Systems it is highly recommended that you use high quality forged pistons and rods as well as high quality racing ignition system with timing control. If horsepower gain in more than 40% of original, forged pistons are recommended.

Downloads:

Download Name File Size
199r10298.pdf88.63KB
a5053-2-snosrev.pdf1.78MB

Videos:

Specifications:

Bottle Color NOS Blue
Bottle Size 10lb
Emission Code 4
Fuel Solenoid PowerShot
Included Jetting Horsepower 125, 150, 175, 250
Jet Style Flare
Max Horsepower 300
Nitrous Solenoid Super PowerShot
Nozzle Style Fogger2
Number of Nozzles 8
Number of Solenoids 4
Part Type Nitrous Oxide Injection System Kit
Product Type NOS System
Proposition 65 www.P65Warnings.ca.gov
System Style Wet
