Pertronix Digital HP Ignition Box and Ignition Coil Bundle 510C

Pertronix Digital HP Ignition Box and Ignition Coil Bundle 510C
Pertronix Digital HP Ignition Box and Ignition Coil Bundle 510CPertronix Digital HP Ignition Box and Ignition Coil Bundle 510CPertronix Digital HP Ignition Box and Ignition Coil Bundle 510CPertronix Digital HP Ignition Box and Ignition Coil Bundle 510CPertronix Digital HP Ignition Box and Ignition Coil Bundle 510CPertronix Digital HP Ignition Box and Ignition Coil Bundle 510C
$550.99 ea
NEWARRIVING SOONEstimated Ship Date 09/24/2026 (If Ordered Today)
Model: 5122837
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

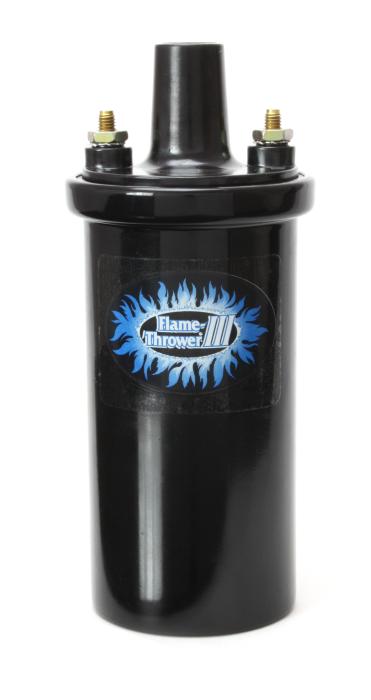

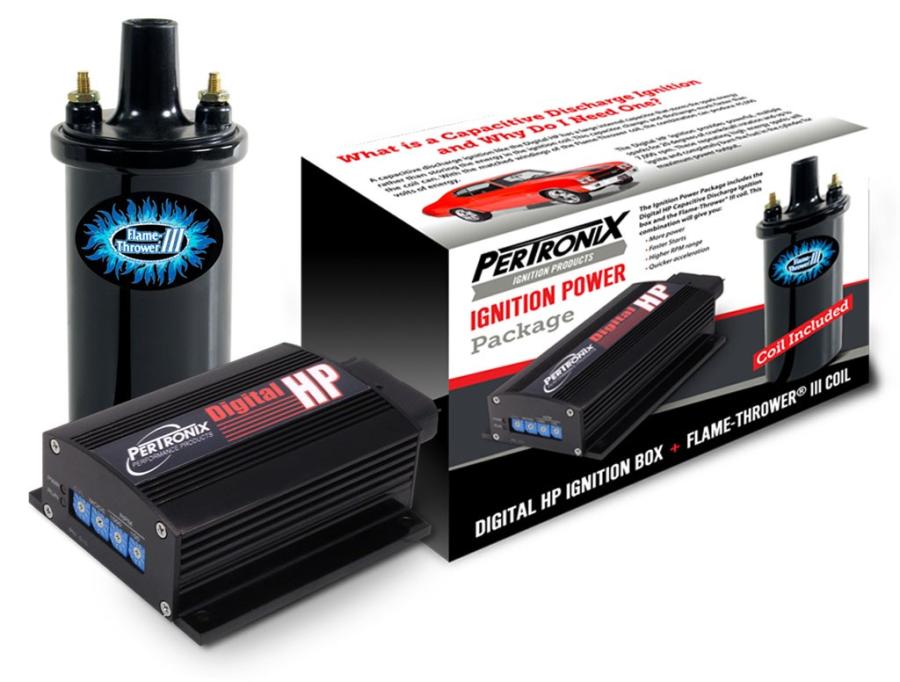

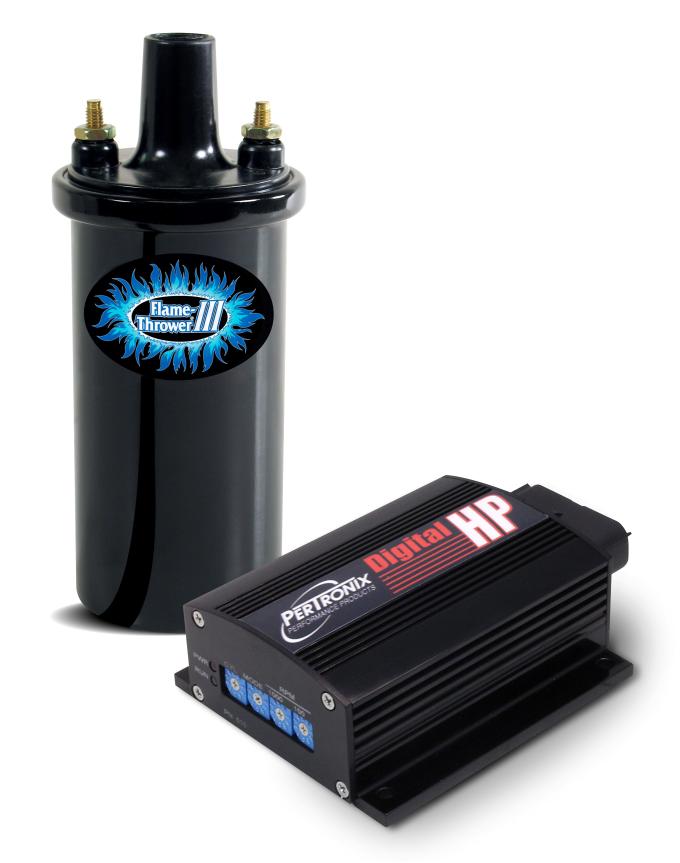

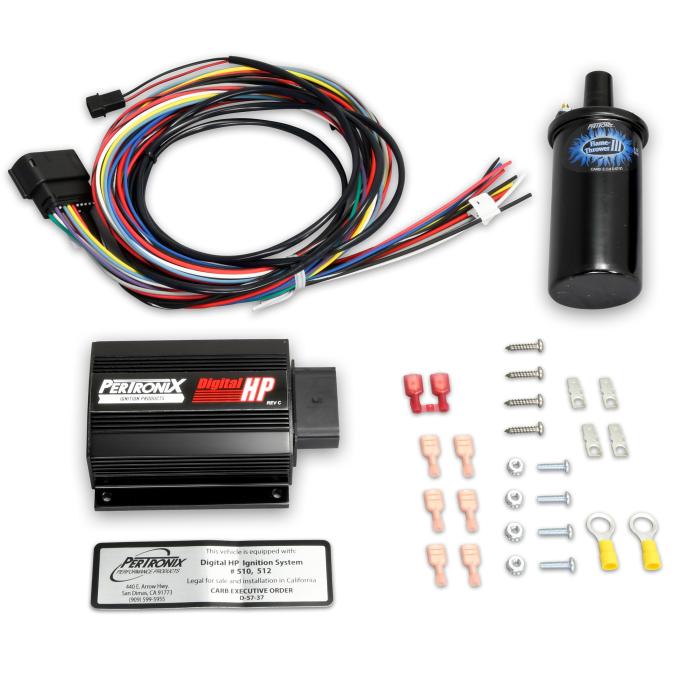

The perfect combinations are planned and we've done just that taking two of our best sellers and combining them in one package for the optimal pairing. The Ignition Power Package includes the Digital HP Capacitive Discharge Ignition Box and a Flame Thrower III Canister Coil. These two products work together to provide more power, faster starts, higher RPM range, and quicker acceleration.

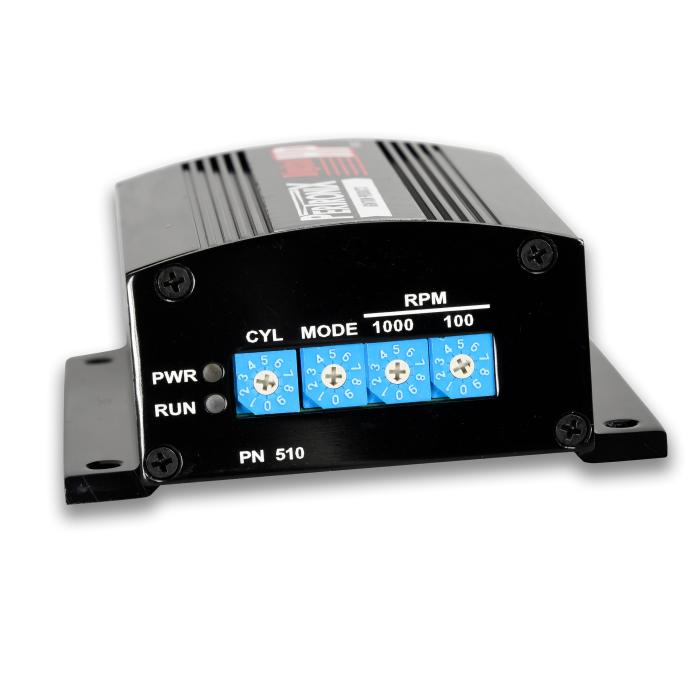

Our Digital HP Ignition increases the spark output as well as the duration of the spark across the plug gap to ensure a full combustion of the fuel mixture in the cylinder. The Digital HP Ignition Box delivers 172 mJ of Spark Energy and features an integrated 3 step digital REV limiter delivering multiple spark all the way to redline. Key features also include an RPM triggered output, adjustable start retard, locking automotive connector, tachometer output lead, and onboard error logging all in an ultra-small form factor.
Features:
  • 45,000 volts
  • Integrated 3 Step Digital REV Limiter
  • Legal in all 50 states and Canada C.A.R.B. E.O #D-57-21

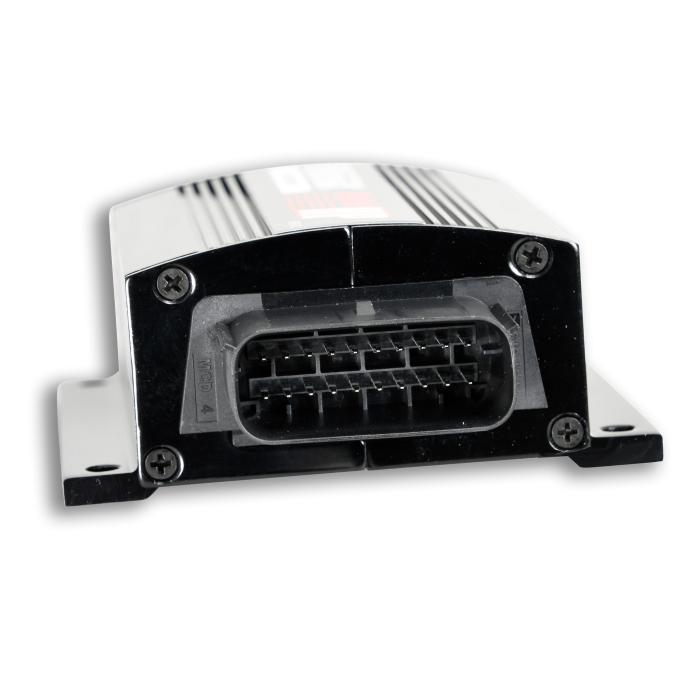

  • Locking Automotive Connector
  • Rapid charge time means maximum spark energy is sustained to higher engine RPM
  • Multiple Spark All the Way to Redline
  • Ultra low 0.32 primary resistance
  • Tachometer Output Lead
  • 172 mJ of Spark Energy
  • Ultra Small Form Factor
  • RPM Triggered Output
  • Onboard Error Logging
About Pertronix, Inc

Originally known as Per-Lux, the company was founded in 1962, primarily a manufacturer of driving and fog lights for the heavy-duty truck market. In the early 70's, a Per-Lux engineer developed an electronic ignition system that would replace the points and condenser in distributors. After patenting the product, Per-Lux started manufacturing the Ignitor® with sales and marketing emphasis on the forklift and industrial engine markets. Soon the Ignitor was introduced to the automotive market, offering its superior performance and in 1985 the first replacement electronic distributor was introduced. In 1991, Tom Reh acquired the Ignition Division and PerTronix was born with a total commitment to the ignition market. In the years that followed, the reliable, high quality, competitively priced Ignitor took over the industry with Sales of Over 4 million units to date. The expertise and industry knowledge within PerTronix had the team setting their sights on new product segments and so began the legacy of PerTronix Performance Brands.

With the tremendous growth of the performance industry in the 90's, PerTronix began to shift our emphasis to our automotive product offering. This substantial growth, along with the addition of our Flame-Thrower® coil and spark plug wire product lines made it necessary for PerTronix to expand production and relocate to a brand new 22,000 square foot custom manufacturing facility in 1997. Today, PerTronix is renowned for our Ignitor Series points replacement kits, HEI performance modules, Flame-Thrower HEI, Billet and Cast Distributors, Ignition Coils and Spark Plug Wire sets. Ignitor kit sales have exceeded 4,000,000 units. The release of our Innovative Digital HP Ignition Box represents our continued commitment to lead the Ignition Industry.

Downloads:

Download Name File Size
510-Installation-Sheet.pdf2.34MB
PTX 510C Ignition Power Package.pdf1.45MB

Specifications:

Emission Description This product has been granted a California Air Resources Board (CARB) Executive Order (EO Number) Exemption. It is 50 State Legal when installed on the appropriate vehicle per the Manufacturer’s Application Guide and Installation Instructions.
Part Type Ignition Control Module
Proposition 65 www.P65Warnings.ca.gov
Warranty Time 12 Months
