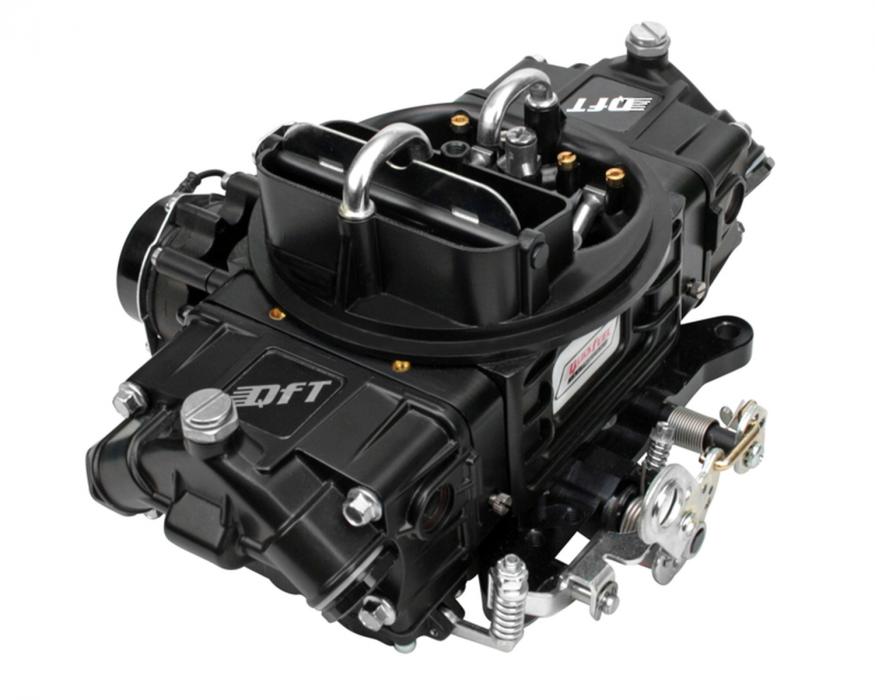

Quick Fuel Technology M-Series 850CFM Marine Carburetor M-850

Quick Fuel Technology M-Series 850CFM Marine Carburetor M-850
Quick Fuel Technology M-Series 850CFM Marine Carburetor M-850
$1,488.99 ea
NEWOUT OF STOCK
Model: 4014743
STANDARD
DELIVERY
STORE PICKUP
[More Info]
QFT brings its engineering expertise to the marine market. The M-Series feature billet-style metering blocks and throttle bodies for more precise performance and exceptional strength. •Exclusive Black Diamond coating for enhanced corrosion protection and appearance, coating provides a 6% reduction in fuel temperature •Electric choke - Fully adjustable, one wire hookup •J tubes to prevent spillage •PTFE-coated throttle shafts with PTFE bearing ribbons and stainless steel plates •Built-in sight glass windows for easy float adjustment •Changeable primary idle feed and power valve channel restrictions, plus changeable idle air and high speed bleeds •QuickLink™ secondary adjustment for fast and easy changing of opening rates •Available in eight different sizes from 350-1,050 cfm
This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.
Installation Notes:
This model of carburetor has the square bore flange bolt pattern. It can replace Holley, Edelbrock, Carter AFB, and Autolite style carburetors with 5 3/16" x 5 5/8" bolt pattern. If you have a spreadbore style intake manifold, you will need an adapter to install this carburetor. Similar to the Mr. Gasket #1932.

Downloads:

Download Name File Size
199r11668.pdf480.31KB

Videos:

Specifications:

Barrels 4
Billet Color Diecast-No Billet
Booster Down Leg
Booster Type Down Leg
Carburetor Use Marine
CFM 850
Choke Electric
Circuit 2
Condition NEW
Emission Code 3
Finish Black
Fuel Gasoline
Fuel System Carbureted
High Speed Air Bleed 28
Idle Air Bleed Size 70
Marine Engine Size Universal
Marine Use Yes
Material Aluminum
Model 4150
Part Type Carburetor
Primary Main Jet 82
Primary Power Valve 6.5
Primary Pump Nozzle Size 37
Product Type Quick Fuel Marine Carburetor
Proposition 65 www.P65Warnings.ca.gov
Secondaries Mechanical
Secondary Main Jet 94
Supercharged Application No
Throttle Bore 1-3/4 inch
Warranty Limited 90 Day
