Quick Time BELLHOUSING, HONDA L4, K20 K24 ENGINES RM-4012

Quick Time BELLHOUSING, HONDA L4, K20 K24 ENGINES RM-4012
Quick Time BELLHOUSING, HONDA L4, K20 K24 ENGINES RM-4012Quick Time BELLHOUSING, HONDA L4, K20 K24 ENGINES RM-4012Quick Time BELLHOUSING, HONDA L4, K20 K24 ENGINES RM-4012Quick Time BELLHOUSING, HONDA L4, K20 K24 ENGINES RM-4012Quick Time BELLHOUSING, HONDA L4, K20 K24 ENGINES RM-4012Quick Time BELLHOUSING, HONDA L4, K20 K24 ENGINES RM-4012Quick Time BELLHOUSING, HONDA L4, K20 K24 ENGINES RM-4012Quick Time BELLHOUSING, HONDA L4, K20 K24 ENGINES RM-4012Quick Time BELLHOUSING, HONDA L4, K20 K24 ENGINES RM-4012Quick Time BELLHOUSING, HONDA L4, K20 K24 ENGINES RM-4012
$1,498.99 ea
NEWARRIVING SOONEstimated Ship Date 07/23/2025 (If Ordered Today)9 Available from HOLLEY PERFORMANCE PRODUCTS as of 07/06/2025
Model: 4953481
STANDARD
DELIVERY
STORE PICKUP
[More Info]

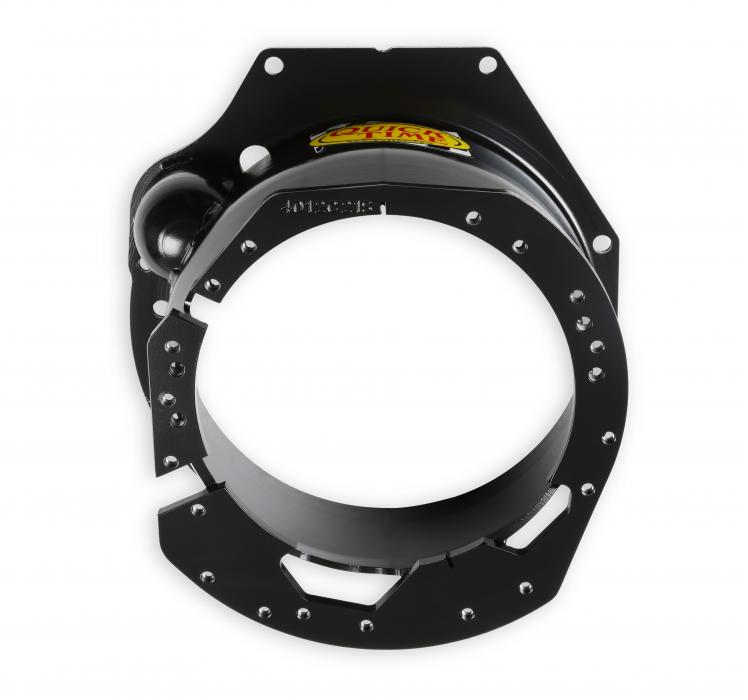

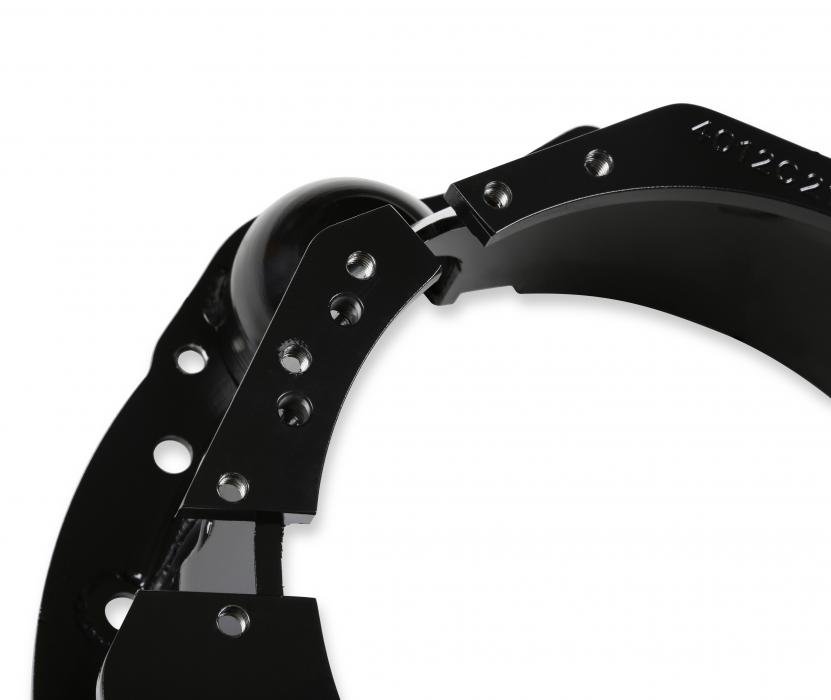

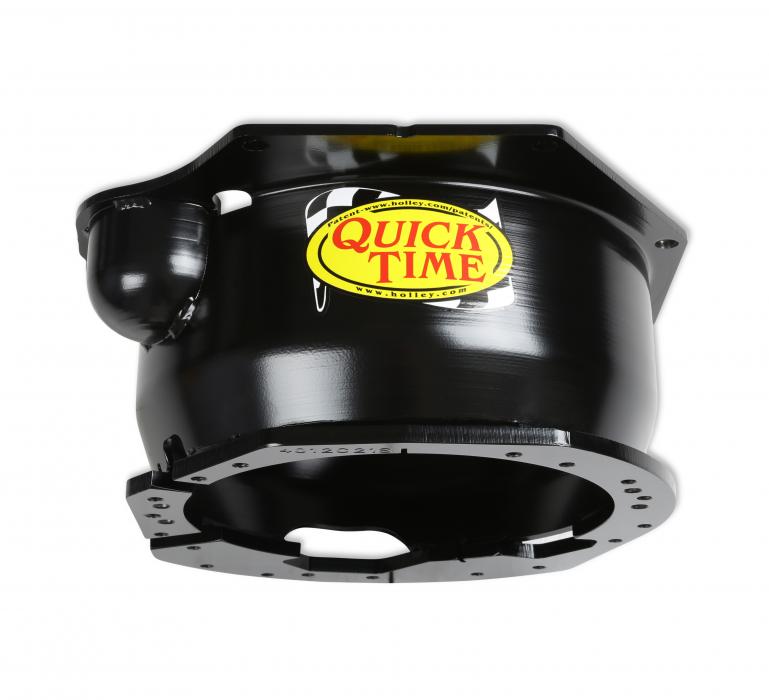

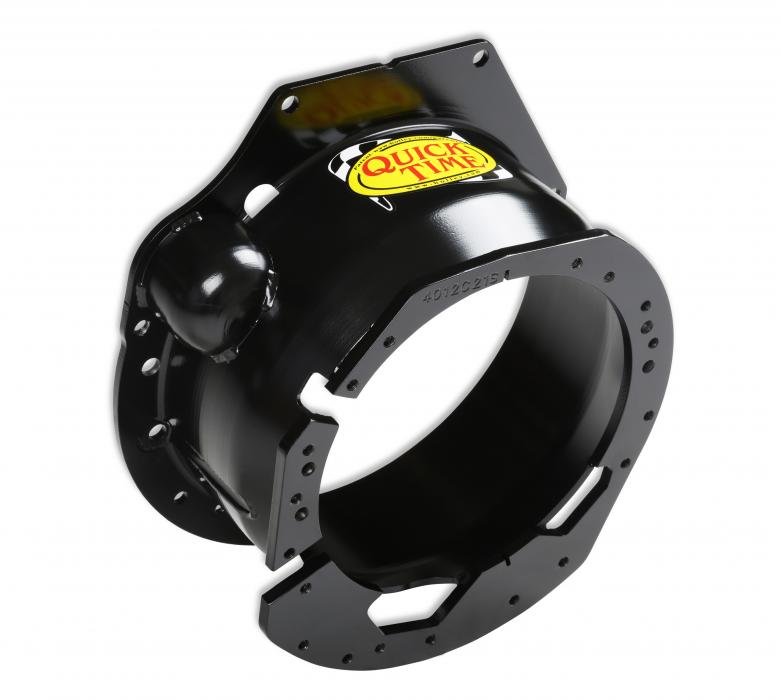

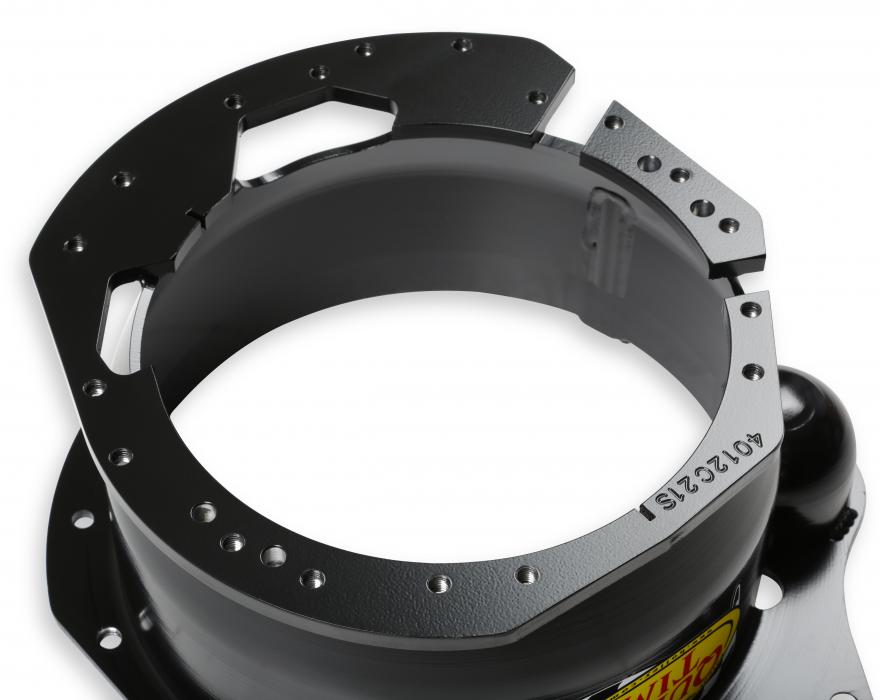

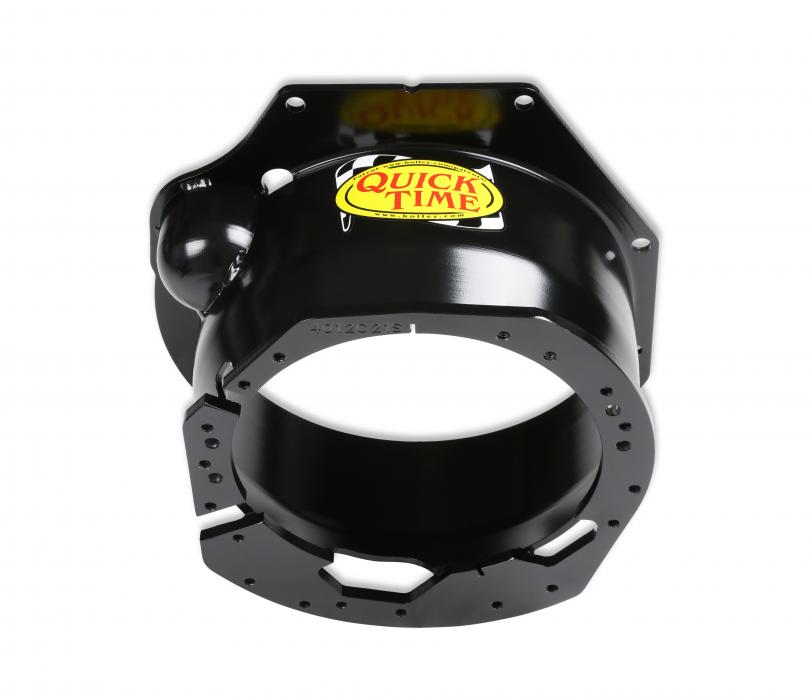

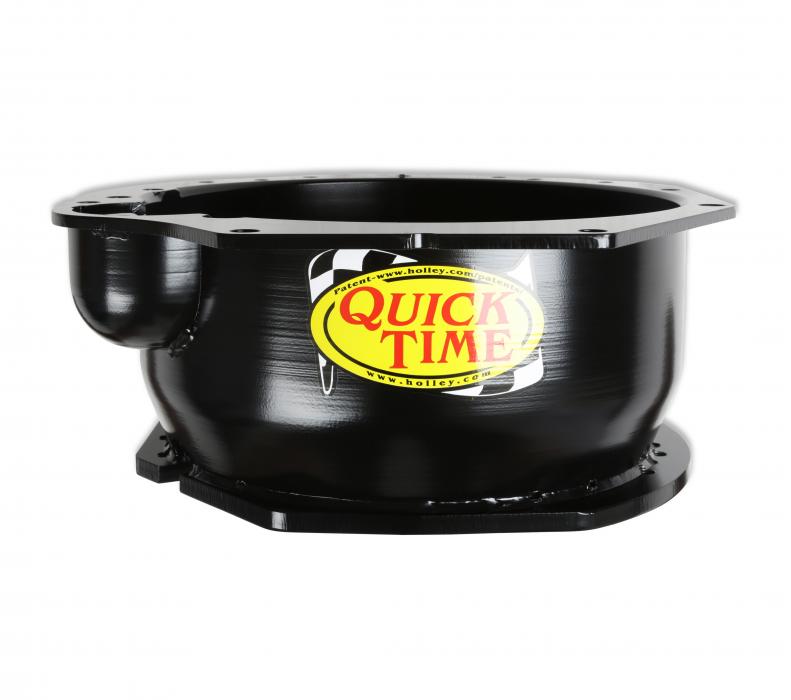

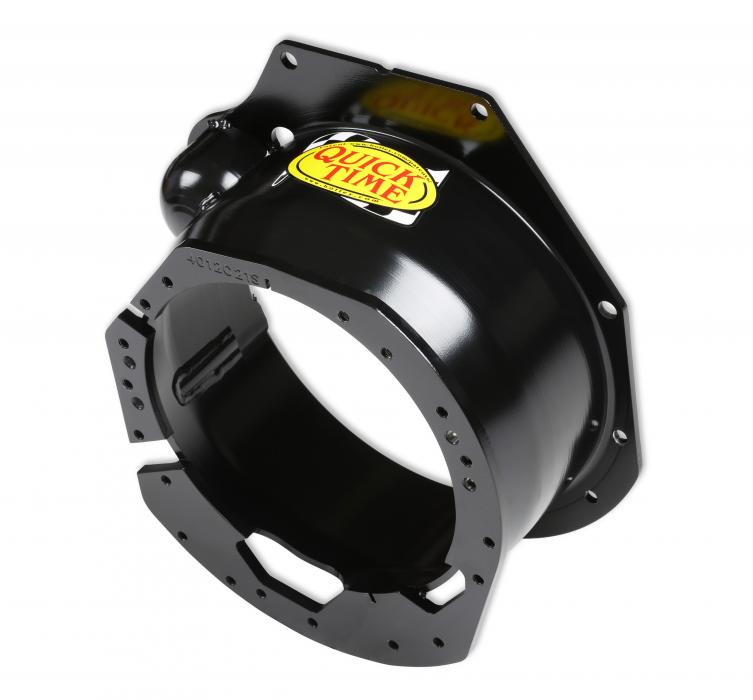

This Quick Time bellhousing mates a GM style T-56 or T-56 Magnum Transmission to a K20/K24 Honda L4 engine. Built from high quality grade steel, the cone is spun not stamped or rolled making this bellhousing dimensionally stable and accurate. It is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile and is not vehicle specific. The unique spin forming process the Quick Time bellhousing to be lightweight while maintaining the protection you desire.
Features:
  • Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
  • Quick Time cones are spun, not rolled or stamped - This allows Quick Time Bellhousings to be the most dimensionally stable bellhousings available
  • Built from high-grade steel - Work hardens to over 80,000 PSI strength, over two times the strength of other steel bellhousings
  • 100% built in the USA
  • Patent on 16 points of bellhousing design & process
  • 6.1 SFI certification

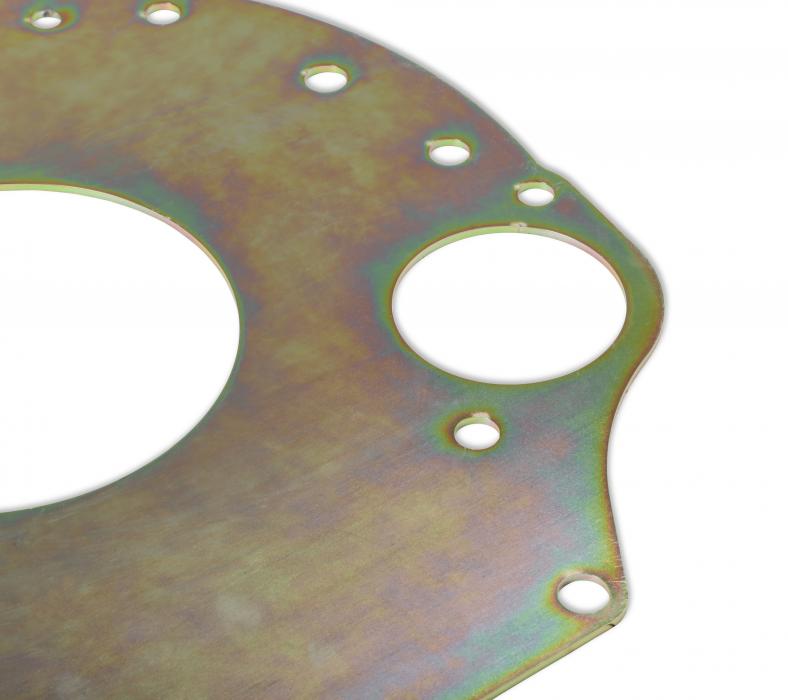

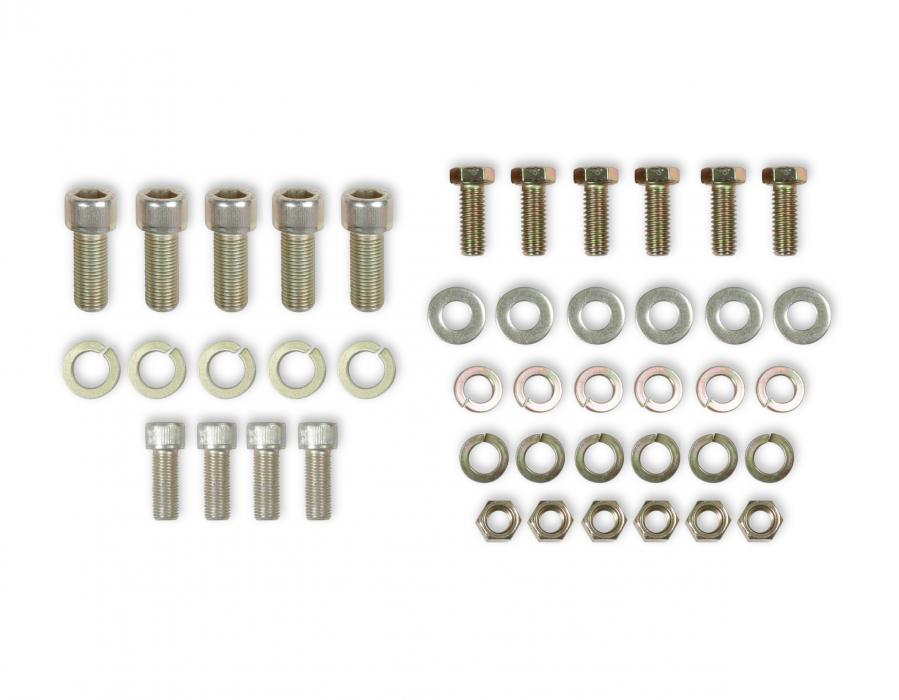

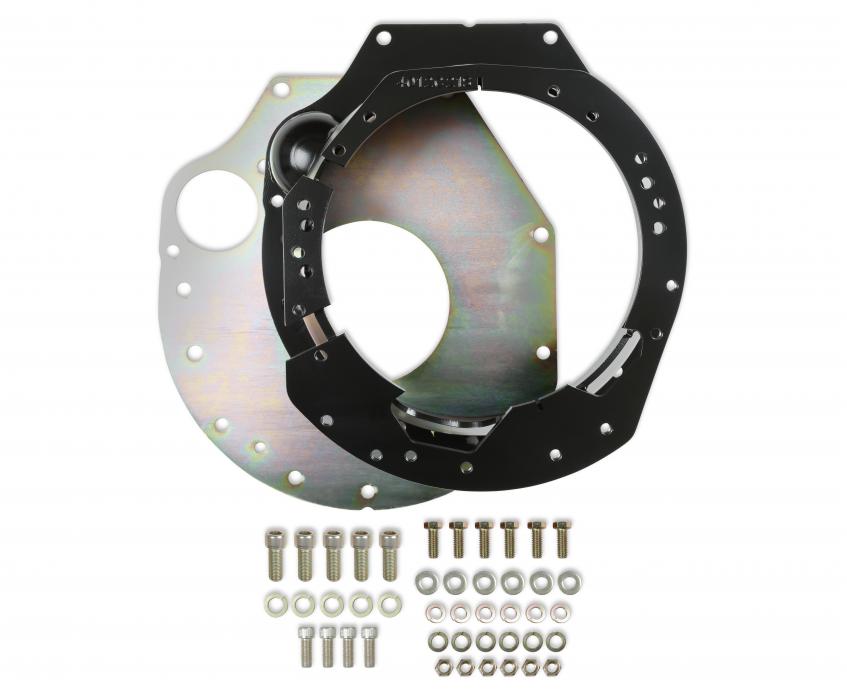

  • Includes block plate and hardware

Downloads:

Download Name File Size
inst-t56.pdf383.93KB

Specifications:

Certification 6.1 SFI
Clutch 10.5 inch
Clutch Operation Hydraulic
Color Black
Emission Code 5
Engine K20, K24
Engine Make Honda
Flywheel OE
Height 6.125 inch
Height (in) 6.125
Material Steel
Part Type Transmission Bell Housing
Patented yes
Product Type Bellhousing
Proposition 65 www.P65Warnings.ca.gov
SFI Approved Yes
Transmission T56 GM, T56 Magnum GM
Transmission Type Manual
Weight (lb) 21
