Quick Time Bellhousing, Chevrolet RM-6023

Quick Time Bellhousing, Chevrolet RM-6023
Quick Time Bellhousing, Chevrolet RM-6023Quick Time Bellhousing, Chevrolet RM-6023Quick Time Bellhousing, Chevrolet RM-6023Quick Time Bellhousing, Chevrolet RM-6023Quick Time Bellhousing, Chevrolet RM-6023Quick Time Bellhousing, Chevrolet RM-6023
$1,502.99 ea
NEWARRIVING SOONEstimated Ship Date 12/24/2024 (If Ordered Today)84 Available from HOLLEY PERFORMANCE PRODUCTS as of 12/06/2024
Model: 4014873
STANDARD
DELIVERY
STORE PICKUP
[More Info]

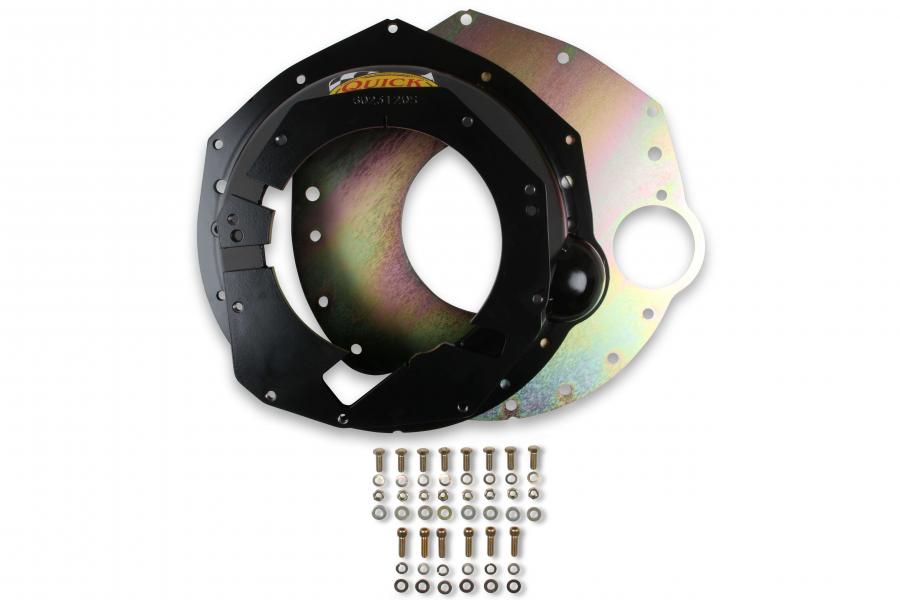

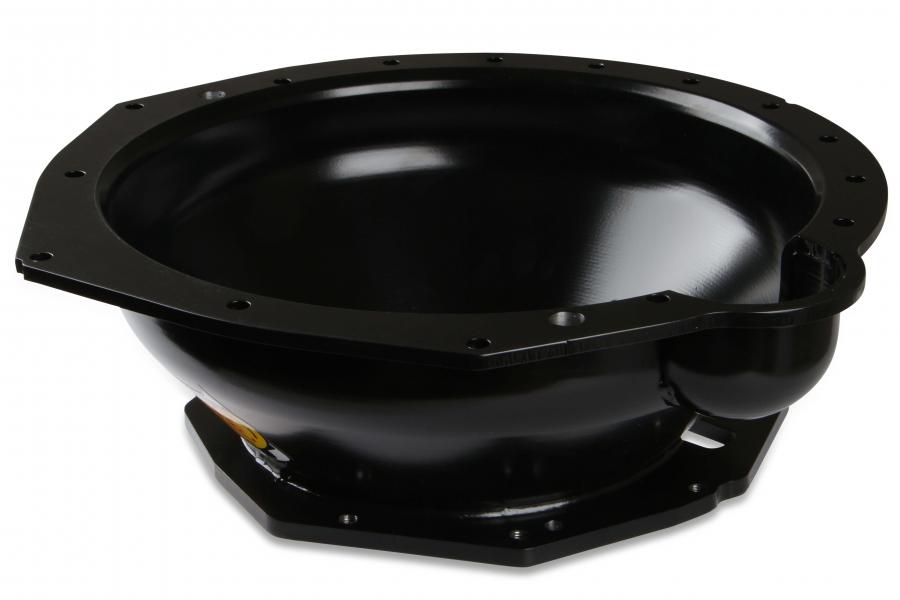

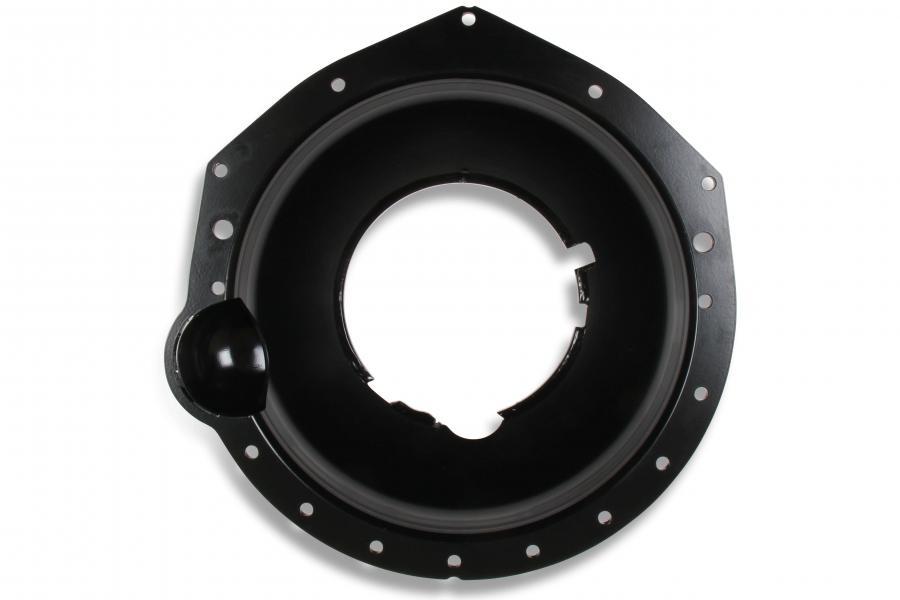

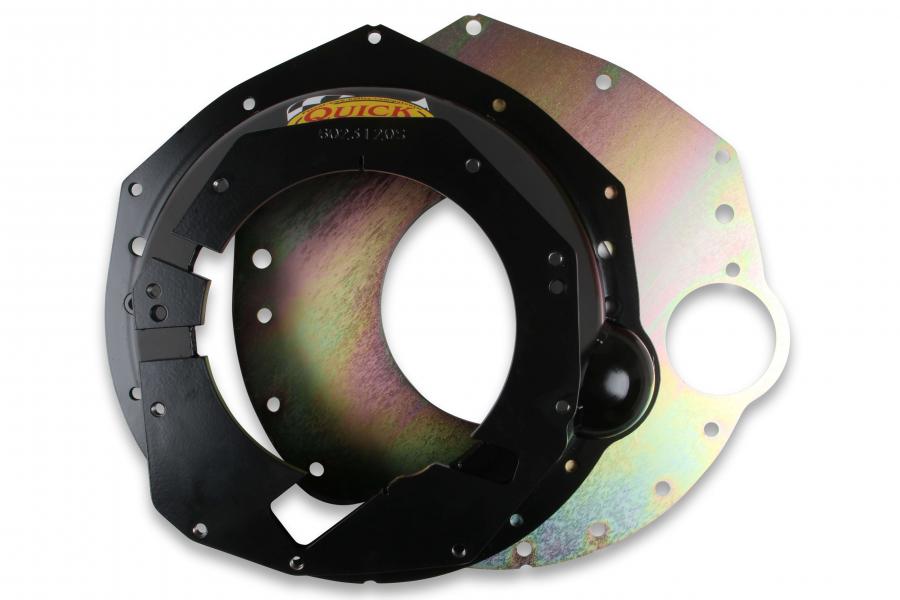

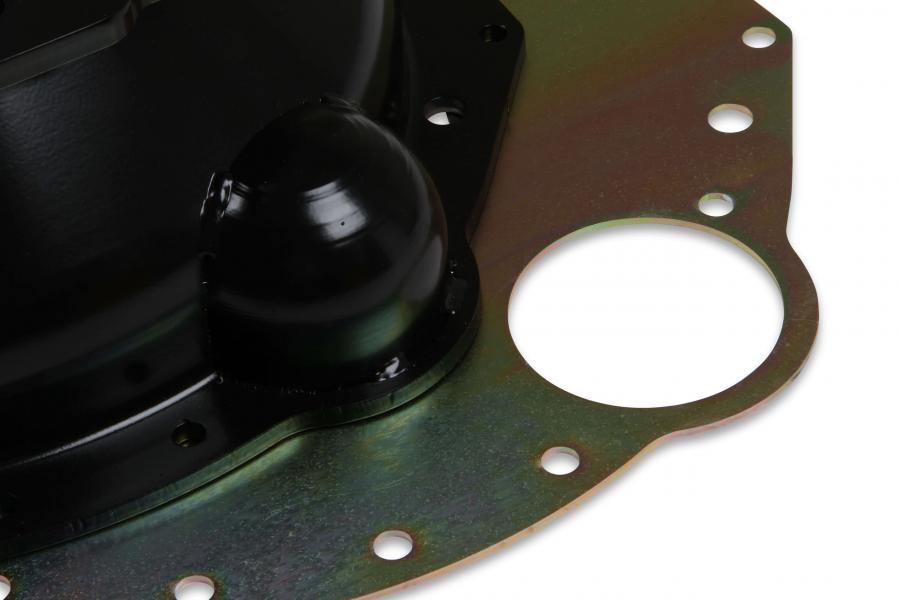

The Quick Time RM-6023 bellhousing connects a small-block or big-block Chevy engine to a GM T56, T-56 Magnum, or T-56 Magnum XL transmission. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin-forming process which results in a very high-strength material. This high material strength allows the Quick Time bellhousings to be lightweight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included) Designed for Hydraulic Release Bearing only and we recommend Hays #82-120 or Holley #319-100. They use the same base part, but the Hays comes with AN fittings for the pressure and bleed ports.
Features:
  • Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
  • QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
  • Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
  • 100% built in the USA
  • Patent on 16 points of Bellhousing Design & Process
Hydraulic Release Bearing Only
Installation Notes:
Hydraulic Release Bearing Only

Downloads:

Download Name File Size
inst-t56.pdf383.93KB

Videos:

Specifications:

Certification 6.1 SFI
Clutch Diameter 11"
Clutch Operation Hydraulic
Color Black
Emission Code 5
Engine Chevrolet Small Block Gen I, Chevy Big Block V8
Engine Make Chevrolet

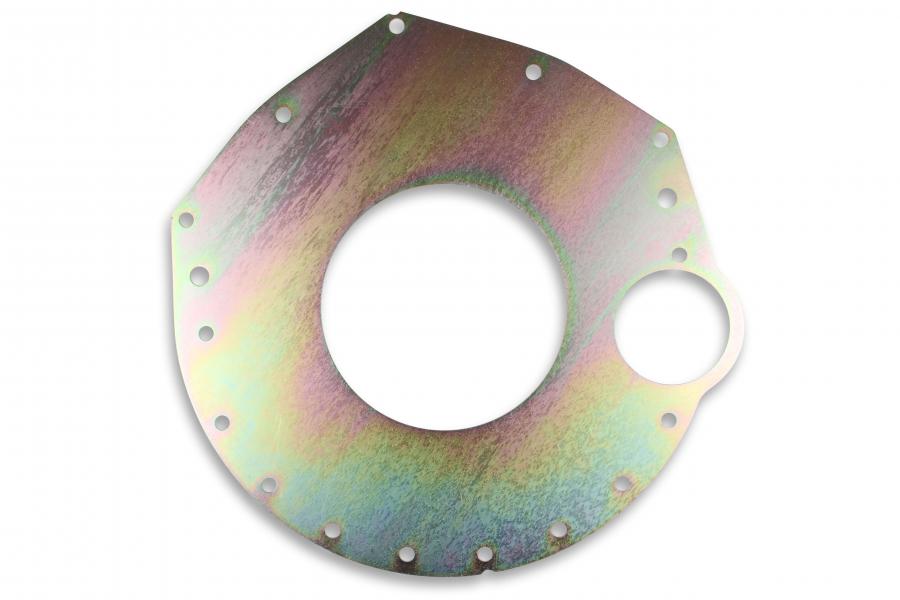

Engine Plate RM-6023-C
Finish Semi-Gloss
Flywheel 153/168 Tooth
Height 5.950 inch
Height (in) 5.95
Make Chevrolet
Material Steel
Part Type Transmission Bell Housing
Patented yes
Product Type Bellhousing
SFI Approved Yes
SFI Certification 6.1
Trans Bore N/A
Trans. Bore Diameter N/A
Transmission T56 GM, T56 Magnum
Transmission Type Manual
Warranty Limited 90 Day Warranty TX, Limited 90 Day Warranty
Weight 22#
Weight (lb) 22
