Quick Time Bellhousing, Ford Modular RM-8080

Quick Time Bellhousing, Ford Modular RM-8080
$1,540.99 ea
NEWARRIVING SOONEstimated Ship Date 12/02/2024 (If Ordered Today)100 Available from HOLLEY PERFORMANCE PRODUCTS as of 11/13/2024
Model: 4014989
STANDARD
DELIVERY
STORE PICKUP
[More Info]

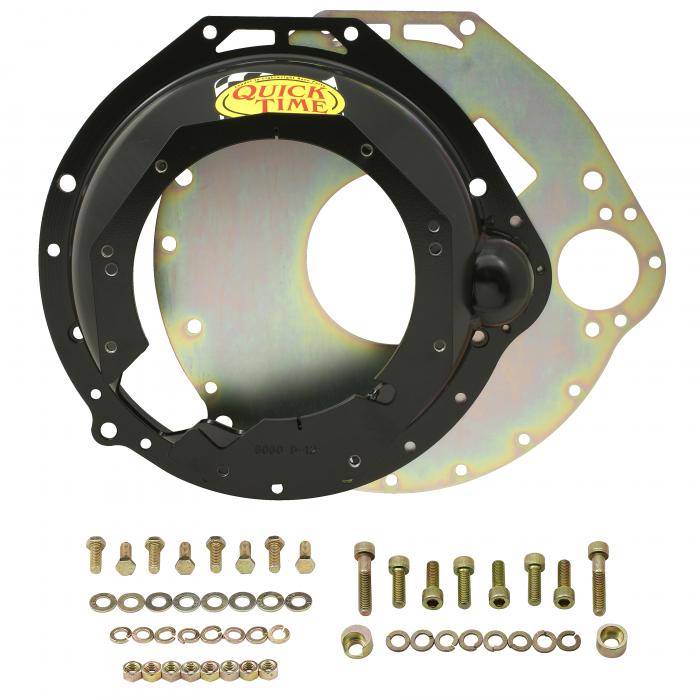

The Quick Time RM-8080 bellhousing fits 4.6/5.0/5.4/5.8/6.2L Ford Modular Engines to Ford T56 transmissions. The clutch fork position on this bellhousing is at the 7:00 position. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Features:
  • Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
  • QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
  • Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
  • 100% built in the USA
  • Patent on 16 points of Bellhousing Design & Process
The factory dowel pins are longer than the thickness of our bellhousing flange. The included bushings are to be placed over the dowel pins, the longer mounting bolts go through the bushings and pin the bell to the block. You can eliminate the bushing if you are willing to machine the factory dowel pins down.
Installation Notes:
The factory dowel pins are longer than the thickness of our bellhousing flange. The included bushings are to be placed over the dowel pins, the longer mounting bolts go through the bushings and pin the bell to the block. You can eliminate the bushing if you are willing to machine the factory dowel pins down.

Downloads:

Download Name File Size
inst-t56.pdf383.93KB

Videos:

Specifications:

Certification 6.1 SFI
Clutch Operation Mechanical
Color Black
Emission Code 5
Engine Ford Modular V8, Ford 4.6 Modular, Ford 5.4 Modular, Ford 5.8 Modular, Ford 6.2 Modular, Ford 7.3 Godzilla, Ford 5.0L Coyote
Engine Make Ford
Engine Plate RM-6081-C
Finish Semi-Gloss
Flywheel 164 Tooth
Height 5.322 inch
Height (in) 5.322
Make Ford
Material Steel
Part Type Transmission Bell Housing
Patented yes
Product Type Bellhousing
SFI Approved Yes
SFI Certification 6.1
Trans Bore N/A
Trans. Bore Diameter N/A
Transmission T56 Ford
Transmission Type Manual
Warranty Limited 90 Day Warranty TX, Limited 90 Day Warranty
Weight 20#
Weight (lb) 20
