Lakewood Bellhousing Kit, LS/Gen v LT Engines, TKX and TKO LK5000K

Lakewood Bellhousing Kit, LS/Gen v LT Engines, TKX and TKO LK5000K
Lakewood Bellhousing Kit, LS/Gen v LT Engines, TKX and TKO LK5000KLakewood Bellhousing Kit, LS/Gen v LT Engines, TKX and TKO LK5000KLakewood Bellhousing Kit, LS/Gen v LT Engines, TKX and TKO LK5000KLakewood Bellhousing Kit, LS/Gen v LT Engines, TKX and TKO LK5000KLakewood Bellhousing Kit, LS/Gen v LT Engines, TKX and TKO LK5000KLakewood Bellhousing Kit, LS/Gen v LT Engines, TKX and TKO LK5000KLakewood Bellhousing Kit, LS/Gen v LT Engines, TKX and TKO LK5000KLakewood Bellhousing Kit, LS/Gen v LT Engines, TKX and TKO LK5000KLakewood Bellhousing Kit, LS/Gen v LT Engines, TKX and TKO LK5000K
$662.99 ea
NEWOUT OF STOCK
Model: 4010561
OVERSIZE 3

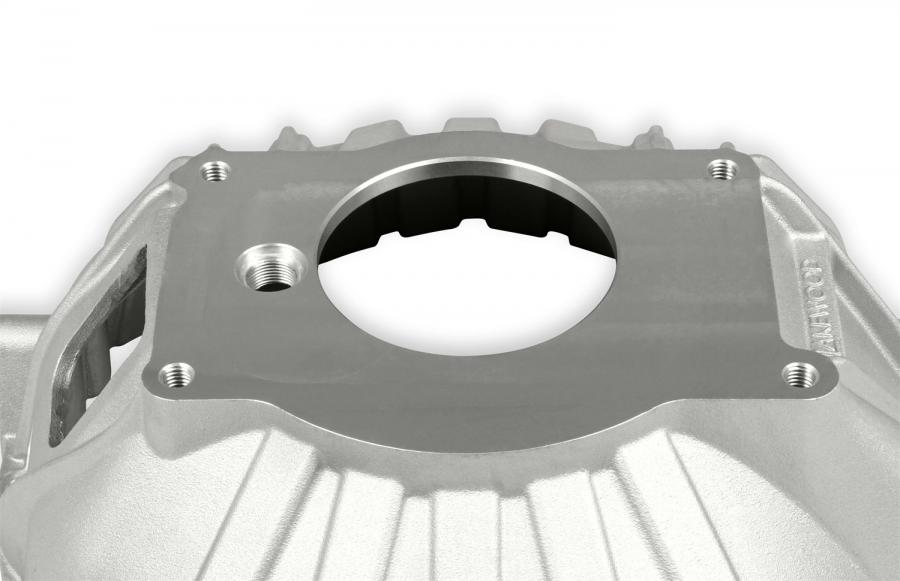

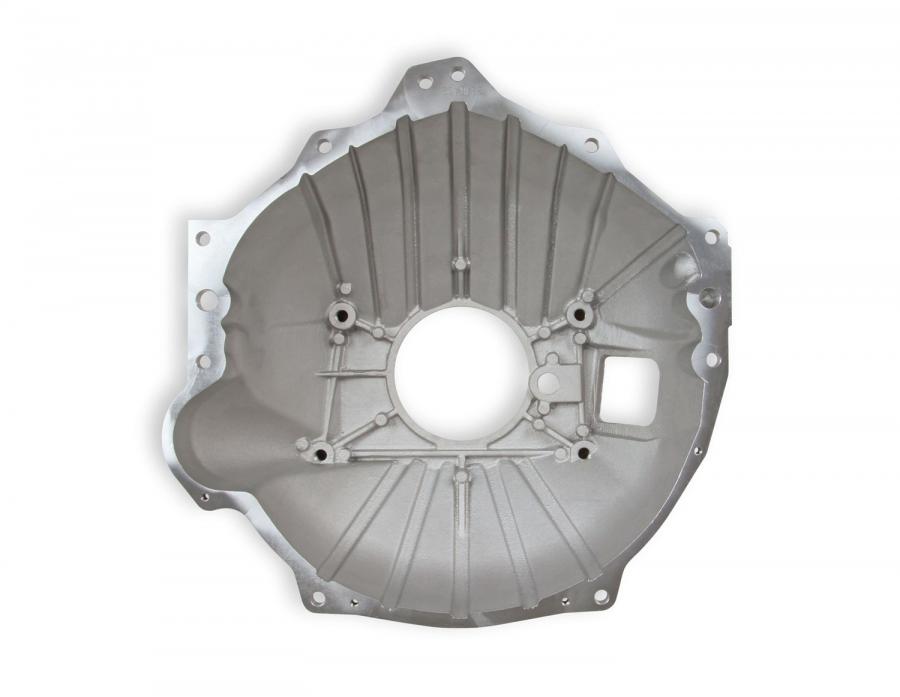

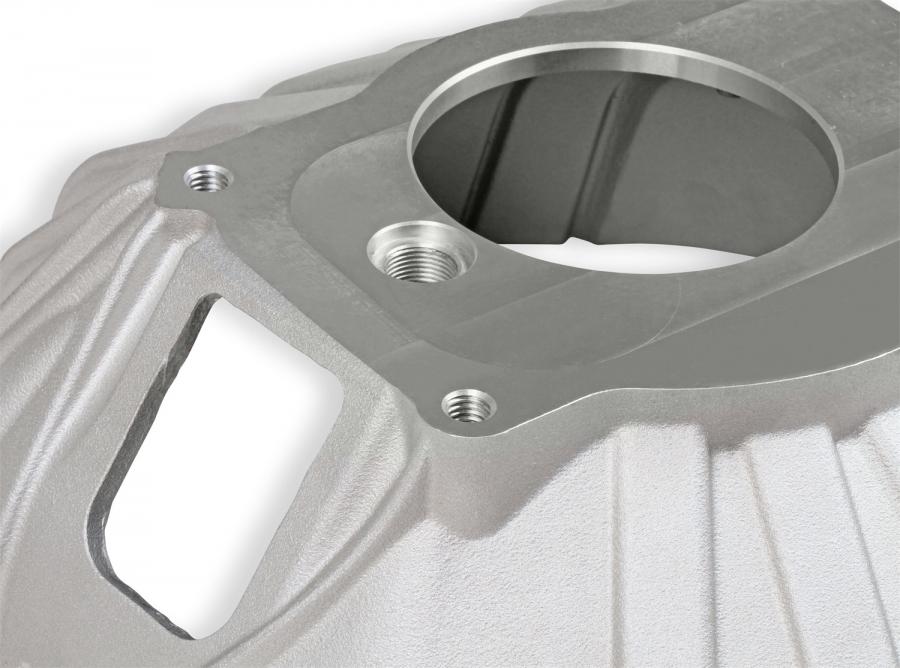

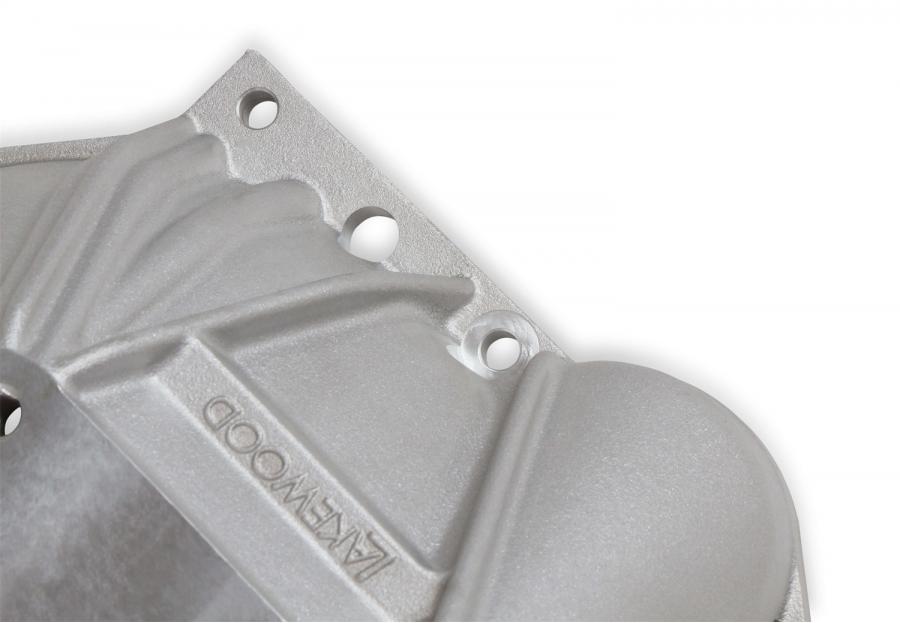

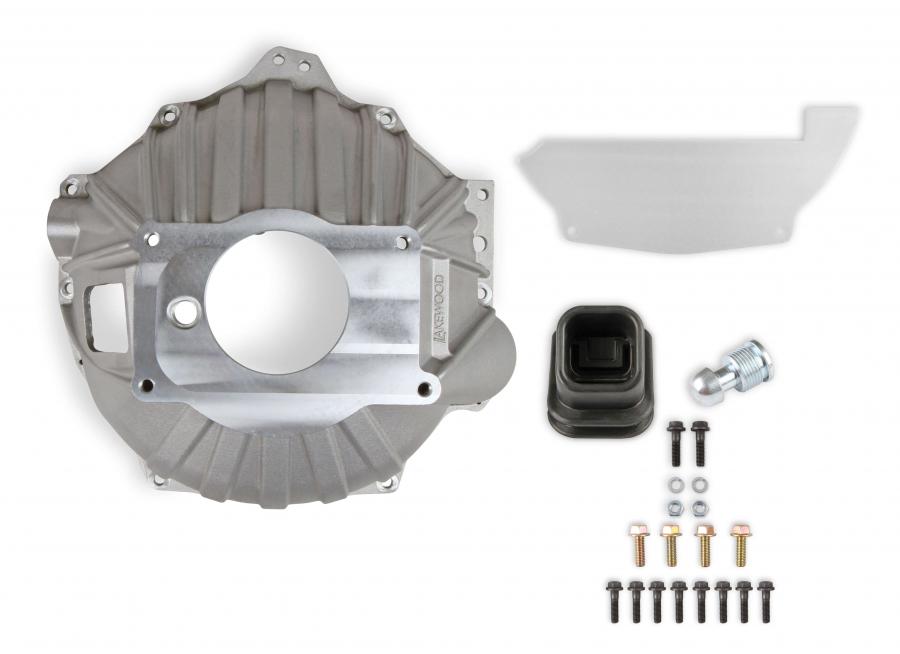

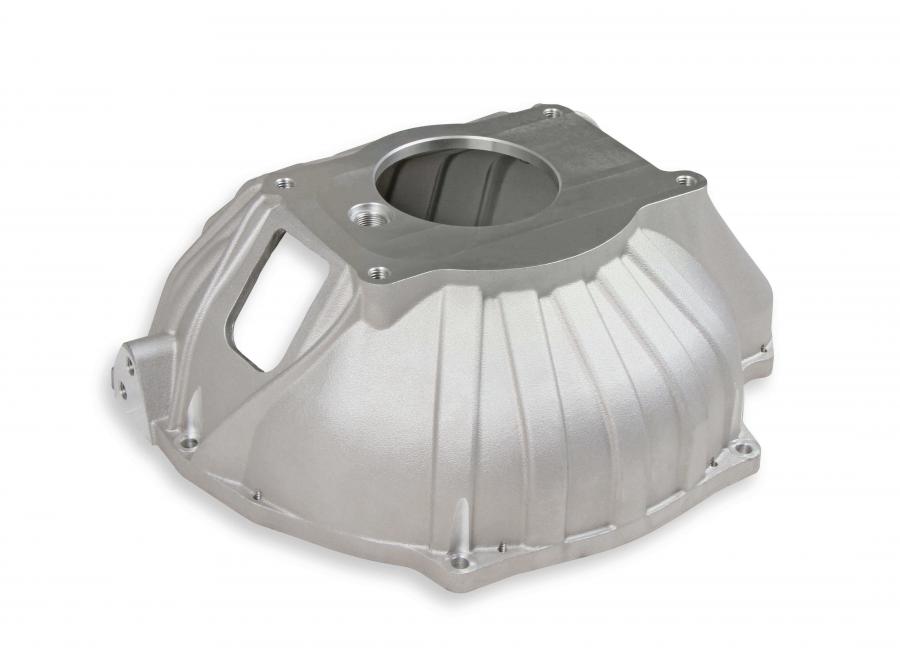

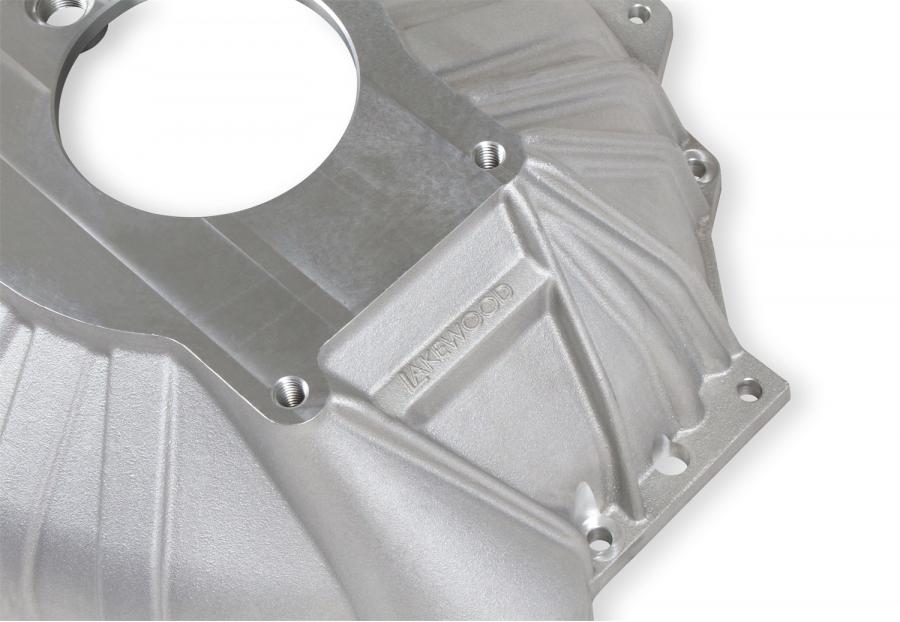

The Lakewood cast aluminum bellhousings connect GM LS and Gen V LT engines to transmissions utilizing the standard GM pattern such as the Muncie, Saginaw, Borg Warner T10, and Tremec TKX or TKO transmissions. The bellhousings can be used on both GM cars and trucks and other manufacturers where swap applications are being installed. These kits come complete with a clutch fork boot, inspection cover, and Grade 8 mounting hardware that connects the bellhousing to both the engine and transmission. The bellhousing (#LK4000), clutch fork boot (#50351), inspection cover (#50353), and mounting hardware kit (#50369) are also available individually and can be found below under Service Parts.
Features:
  • Factory-like attachment to stock or Holley oil pans (inspection cover included for use with stamped or fabricated oil pans)
  • Lightweight cast aluminum design similar to the original equipment bellhousings
  • Lower cost non-SFI rated option for projects that do not require a steel SFI rated unit
  • Designed For Hydraulic and Mechanical Fork Throwout Bearing Linkage
  • Bellhousing Depth: 6.45 in
  • Clutch Fork Opening: 2.125 In X 3.3 In
  • Transmission Bore Diameter: 4.684 In

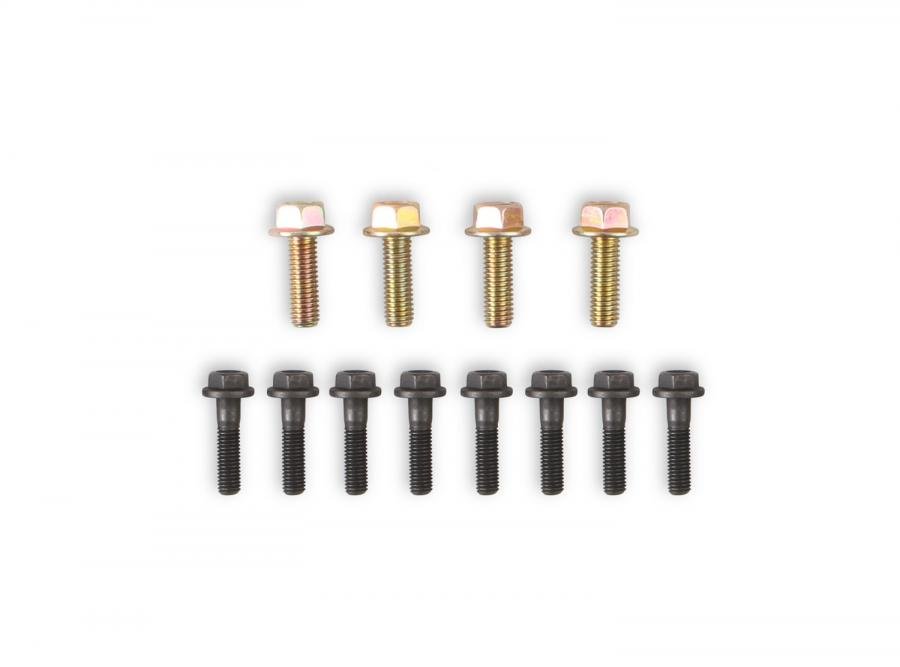

  • Includes Grade 8 Hardware
  • LK4000 Bellhousing also available separately

Downloads:

Download Name File Size
199r12148.pdf514.09KB

Videos:

Specifications:

Clutch 11"
Color Cast
Emission Code 5, 6
Engine GM Small Block Gen III/IV (LS Based), GM Small Block Gen V (LT Based)
Engine Make Chevrolet
Flywheel 153 or 168 Tooth
Height 6.45
Make Chevrolet
Material Cast Aluminum
Part Type Transmission Bell Housing
Product Type Bellhousing Kit
SFI Approved No
Trans. Bore Diameter 4.685
Transmission T5 GM, Bert Racing, BorgWarner, Muncie, T10, TKX GM, TKO 500/600 GM, Brinn Racing, Falcon, Jerico, Richmond, Saginaw
Transmission Type Manual
