Quick Time Bellhousing, Chevy RM-6023PB

Quick Time Bellhousing, Chevy RM-6023PB
$1,893.99 ea
NEWARRIVING SOONEstimated Ship Date 05/13/2025 (If Ordered Today)2 Available from HOLLEY PERFORMANCE PRODUCTS as of 04/23/2025
Model: 4014874
STANDARD
DELIVERY
STORE PICKUP
[More Info]

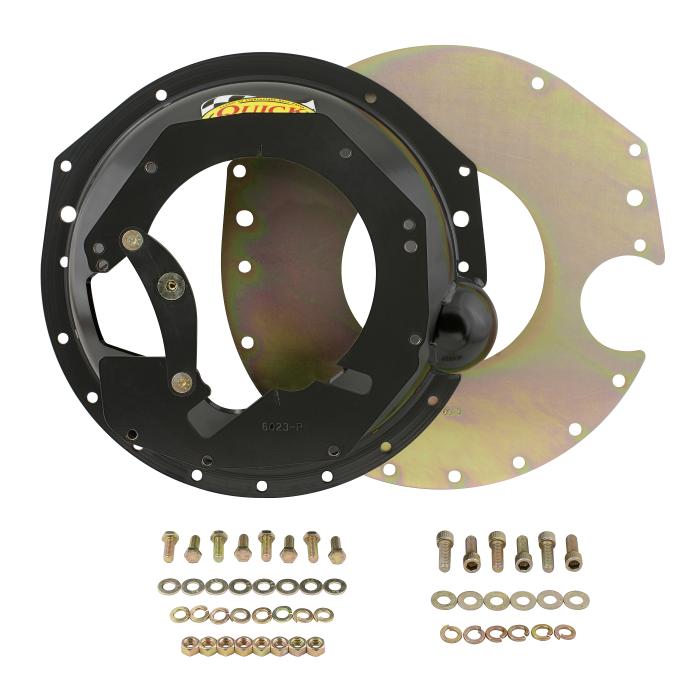

The Quick Time RM-6023PB bellhousing connects Chevy small block and big block engines to Chevy T56 LS-1 transmissions. Included with this is the pivot ball required for clutch fork attachment. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Features:
  • Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
  • QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
  • Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
  • 100% built in the USA
  • Patent on 16 points of Bellhousing Design & Process
Std LH Fork or Hyd. Bearing
Installation Notes:
Std LH Fork or Hyd. Bearing

Downloads:

Download Name File Size
inst-t56.pdf383.93KB

Videos:

Specifications:

Certification 6.1 SFI
Clutch Diameter 11" or smaller
Clutch Operation Mechanical or Hydraulic
Color Black
Emission Code 5
Engine Chevrolet Small Block Gen I, Chevy Big Block V8
Engine Make Chevrolet
Engine Plate RM-6023-C
Finish Semi-Gloss
Flywheel 153/168 Tooth
Height 5.950 inch
Height (in) 5.95
Make Chevrolet
Material Steel
Part Type Transmission Bell Housing
Patented yes
Product Type Bellhousing
SFI Approved Yes
SFI Certification 6.1
Trans Bore N/A
Trans. Bore Diameter N/A
Transmission T56 GM, T56 Magnum
Transmission Type Manual
Warranty Limited 90 Day Warranty TX, Limited 90 Day Warranty
Weight 22#
Weight (lb) 22
