Quick Time Bellhousing, Small Block Ford RM-6063

Quick Time Bellhousing, Small Block Ford RM-6063
$1,511.99 ea
NEWARRIVING SOONEstimated Ship Date 05/13/2025 (If Ordered Today)39 Available from HOLLEY PERFORMANCE PRODUCTS as of 04/23/2025
Model: 4014907
STANDARD
DELIVERY
STORE PICKUP
[More Info]

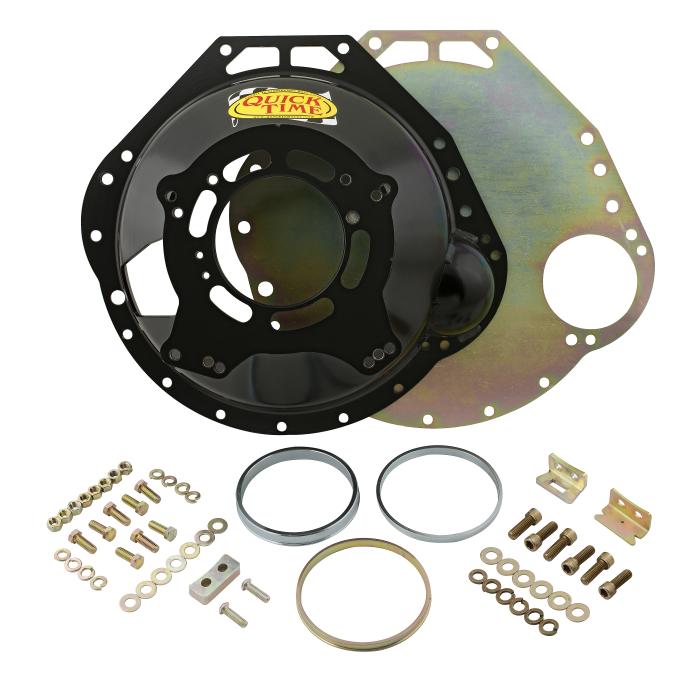

The Quick Time RM-6063 bellhousing connects Small Block Ford 289/302/351C/351W Engines to Ford toploader, Borg Warner T10, and Tremec TKO 500/600 (short shaft) transmissions. This bellhousing is S.F.I. 6.1 certified which is required by many sanctioning bodies for cars running 11.49 or faster in the quarter mile. This bellhousing is a universal fit bellhousing and is not vehicle specific. The Quick Time bellhousings are produced using a unique spin forming process which results in a very high strength material. This high material strength allows the Quick Time bellhousings to be light weight while maintaining the protection you desire. Note: (Transmission Mounting Bolts Not Included)
Features:
  • Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
  • QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
  • Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
  • 100% built in the USA
  • Patent on 16 points of Bellhousing Design & Process

Downloads:

Download Name File Size
lakewood_instructions_quicktime_bellhousings.pdf461.94KB

Videos:

Specifications:

Certification 6.1 SFI
Clutch Operation Hydraulic
Color Black
Emission Code 5
Engine Ford 351W, Ford 302, Ford Small Block V8, Ford 351C, Ford 289
Engine Make Ford
Engine Plate RM-6065-C
Finish Semi-Gloss
Flywheel 157 Tooth
Height 6.300 inch
Height (in) 6.3
Make Ford
Material Steel
Part Type Transmission Bell Housing
Patented yes
Product Type Bellhousing
SFI Approved Yes
SFI Certification 6.1
Trans Bore 4.685 / 4.85 / 4.91 / 5.12
Trans. Bore Diameter 4.685 / 4.85 / 4.91 / 5.12 inch
Transmission Ford Toploader, T10, TKO 500/600 Ford - Short Shaft
Transmission Type Manual
Warranty Limited 90 Day Warranty TX, Limited 90 Day Warranty
Weight 22#
Weight (lb) 22
