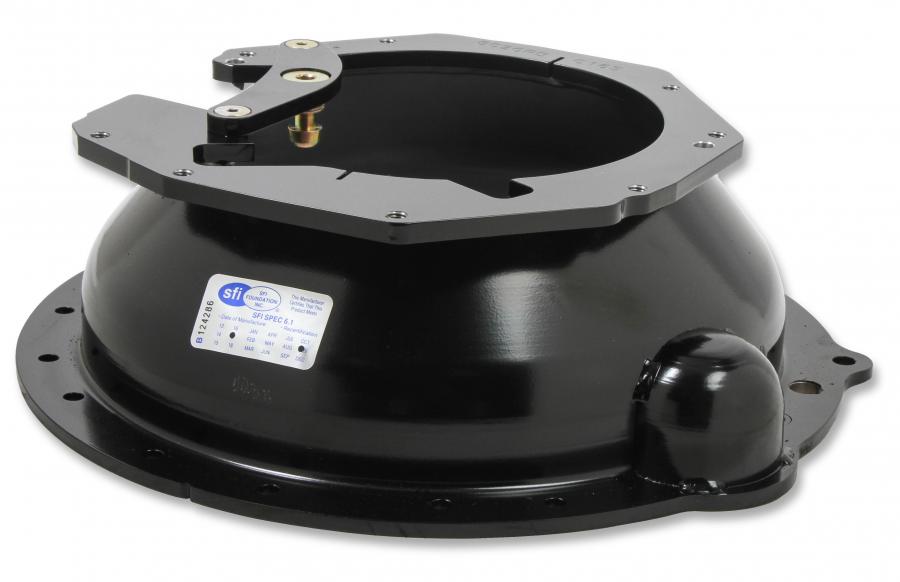

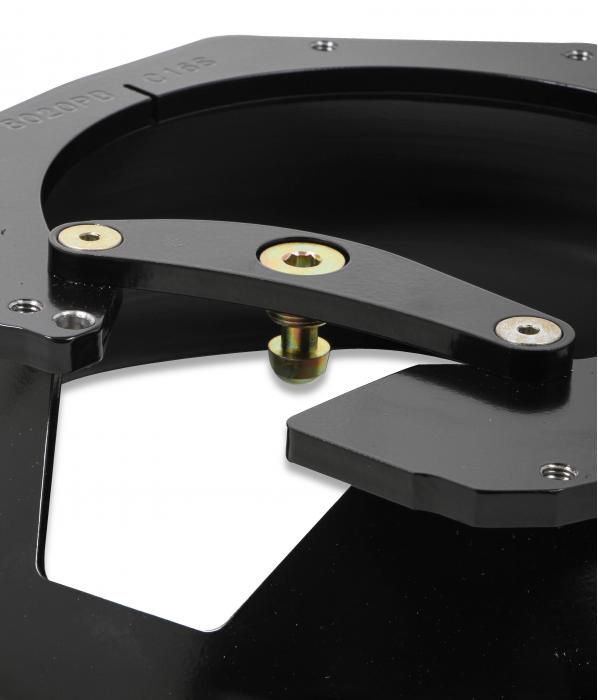

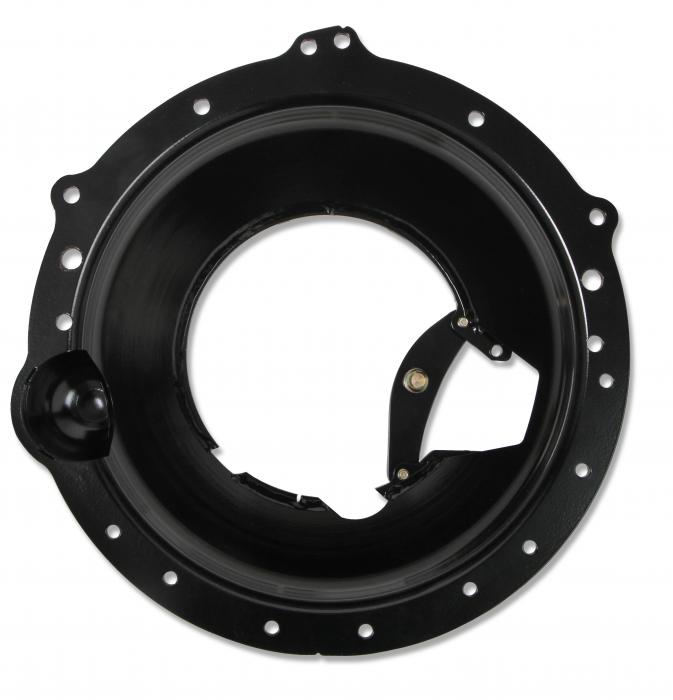

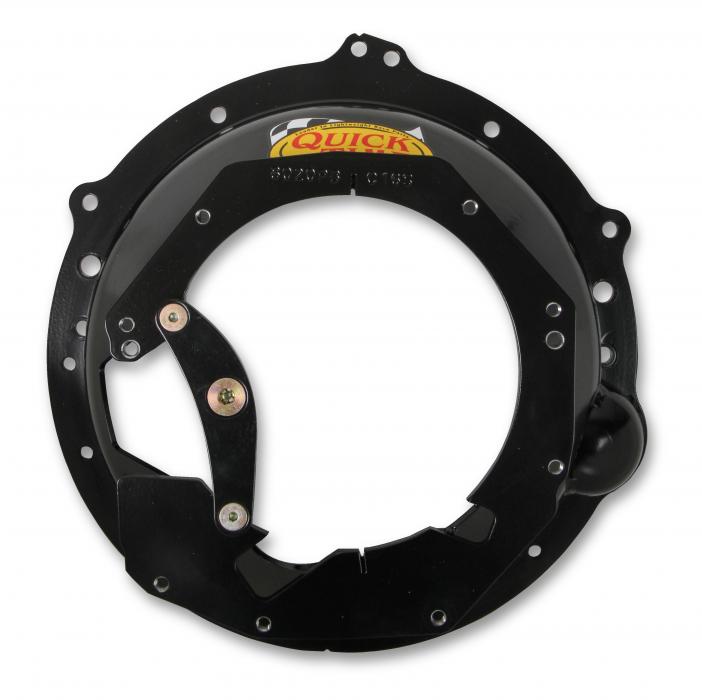

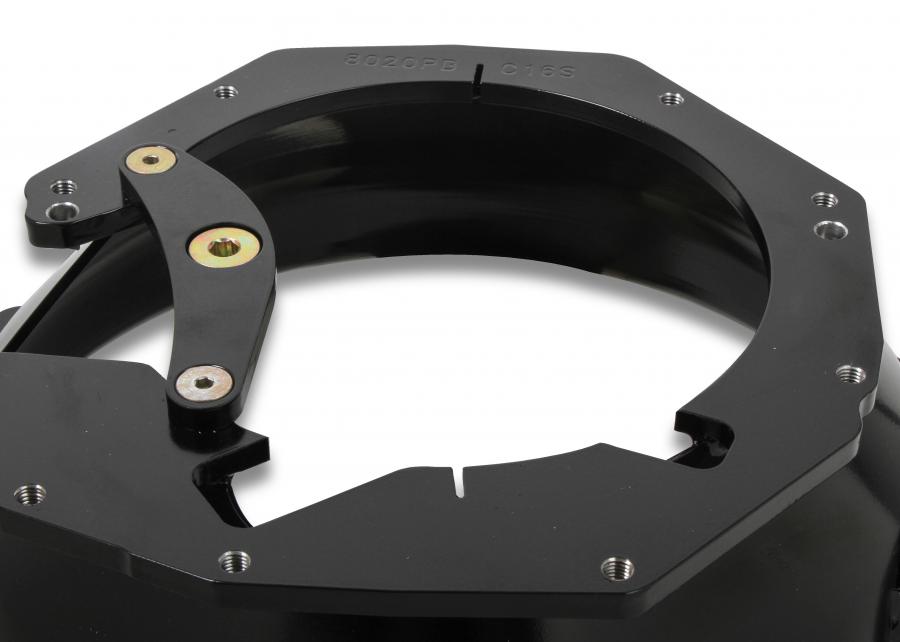

Quick Time Bellhousing, Chevy RM-8020PB

Name: Quick Time Bellhousing, Chevy RM-8020PB
Brand: Quick Time
SKU: 4014955
Price: 2040.99 CAD
Availability: OutOfStock

$2,040.99 ea

NEWOUT OF STOCK

Model: 4014955

Description Downloads Video Specifications Reviews (0) Product Q&A Related Products

Built from high grade steel - Work hardens to over 80,000 PSI strength. Over 2 times the strength of any other steel bellhousing.

Features:

Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
100% built in the USA
Patent on 16 points of Bellhousing Design & Process

Downloads:

Download Name	File Size
inst-t56.pdf	383.93KB

Certification	6.1 SFI
Clutch Diameter	11 inch
Clutch Operation	Mechanical
Color	Black
Emission Code	5
Engine	GM Small Block Gen III/IV (LS Based)
Engine Make	Chevrolet

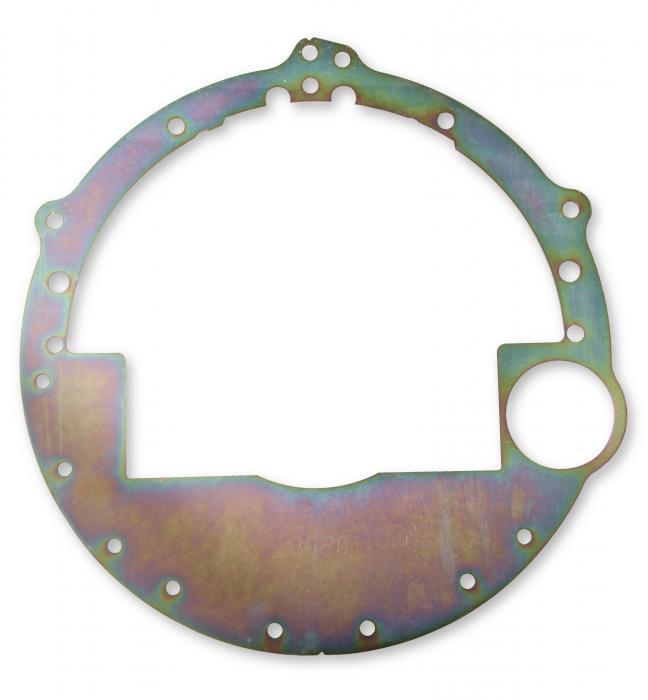

Engine Plate	RM-6034-C
Flywheel	168 Tooth
Height	5.500 inch
Height (in)	5.5

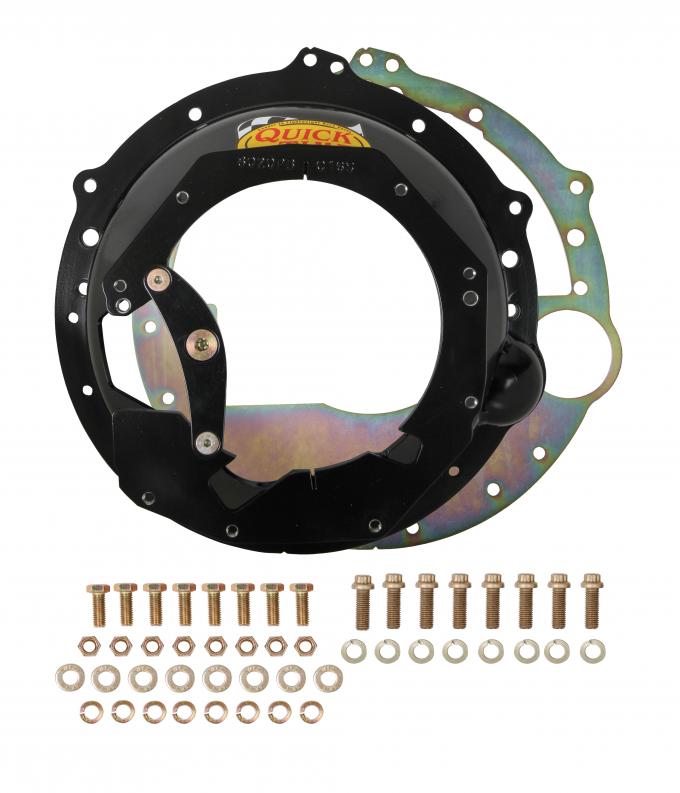

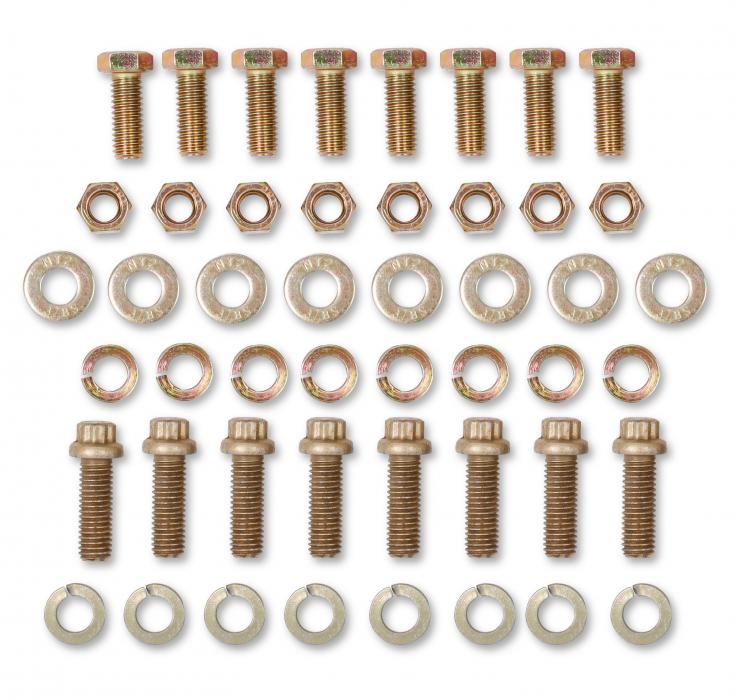

Included Hardware	Full Engine Plate and Grade 8 Bolts
Make	Chevrolet
Material	Steel
Part Type	Transmission Bell Housing
Patented	yes
Product Type	Bellhousing
SFI	6.1
SFI Approved	Yes
SFI Certification	6.1
Trans Bore	N/A
Trans. Bore Diameter	N/A
Transmission	T56 GM
Transmission Type	Manual
Weight	22#
Weight (lb)	22
